200mm Inner Diameter Plastic Rain Gauge Sensor for Tipping Bucket Rainfall Measurement
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | WS-601-ABS5 |
| Minimum Order Quantity | 1 piece |
| Price | $49.90/pieces 1-49 pieces |
| Packaging Details | Carton |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Plastic Rain Gauge Sensor Prices Tipping Bucket Rainfall Measurement | Single-tip | 0.5mm(15.7cc) |
|---|---|---|---|
| Inner Diameter | 200mm(8 Inch)±0.3% | Measuring Range | ≤4mm/min |
| Accuracy | ±≤ 2%(≤ 0.4mm/min); ±≤ 4% (≤4mm/min) | Power Supply | AA Batteries |
| Material | ABS+PC | Operating Temperature | -10℃~50℃ |
| Weight | 1.6kg | Port | Tianjin |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
Plastic rain gauge sensor prices tipping bucket rainfall measurement

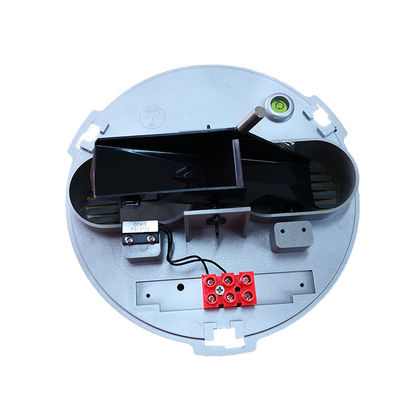

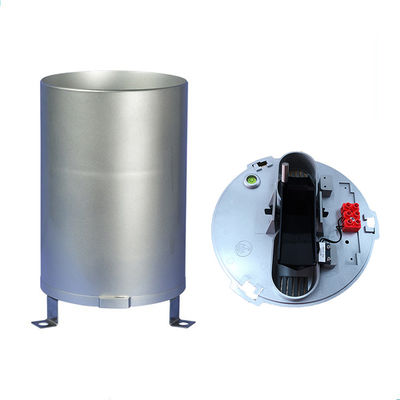

WS-601 Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. The rain gauge operates on the tipping bucket principle, and can be supplied with two types of bucket assemblies; Stainless steel 304 or ABS (Plastic). A receiver of 200mm diameter collects the rainfall, which then flows through the Stainless Steel Catch Filter and then passes into the tipping bucket measuring system. One tip of the bucket will occur when the calibrated resolution of precipitation is collected (either 0.2mm, 0.5mm, or 0.1mm). When the bucket tips, it will pass the encapsulated Dual Reed Switch assembly that detects these events and produces a momentary contact closure signal.
0.5mm pc abs rain gauge rain measurer for landslide monitoring
