Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output

Place of Origin Beijing, China
Brand Name BGT
Model Number BGT-SS2
Minimum Order Quantity 1 piece
Price $218.80/pieces 1-9 pieces
Packaging Details Carton

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge Resolution 0.2mm
Inner Diameter 200mm(8 Inch) ±0.3% Measuring Range 0mm/min~10mm/min
Accuracy ≤±3% Operating Temperature -10℃~50℃
Material Stainless Steel 304 Weight 3.6kg
Output 0.1 Sec Switch Closure, Reed Switch, 5pulse/mm (MaxDC12V, 500mA)
Leave a Message
Product Description
Please Attention
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 0

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.

Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge

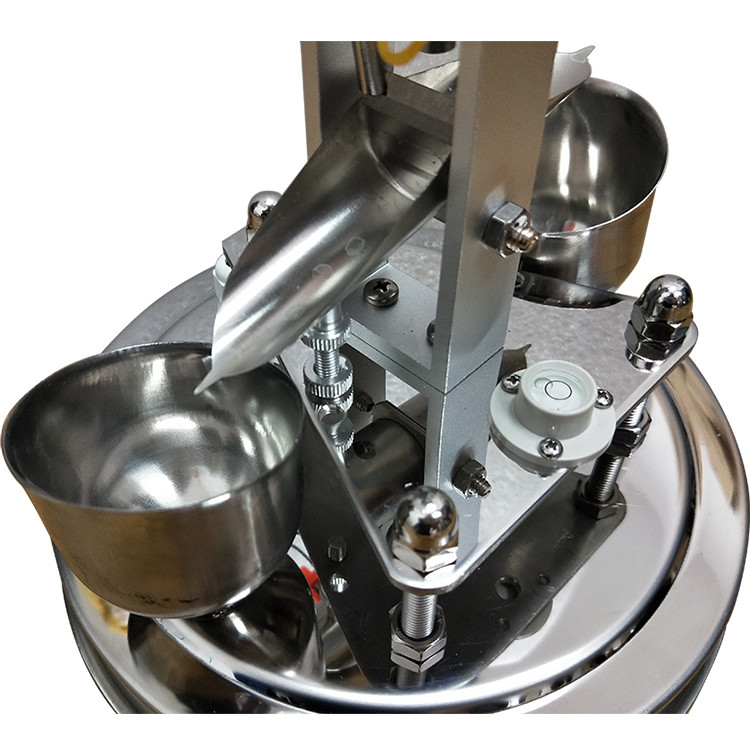

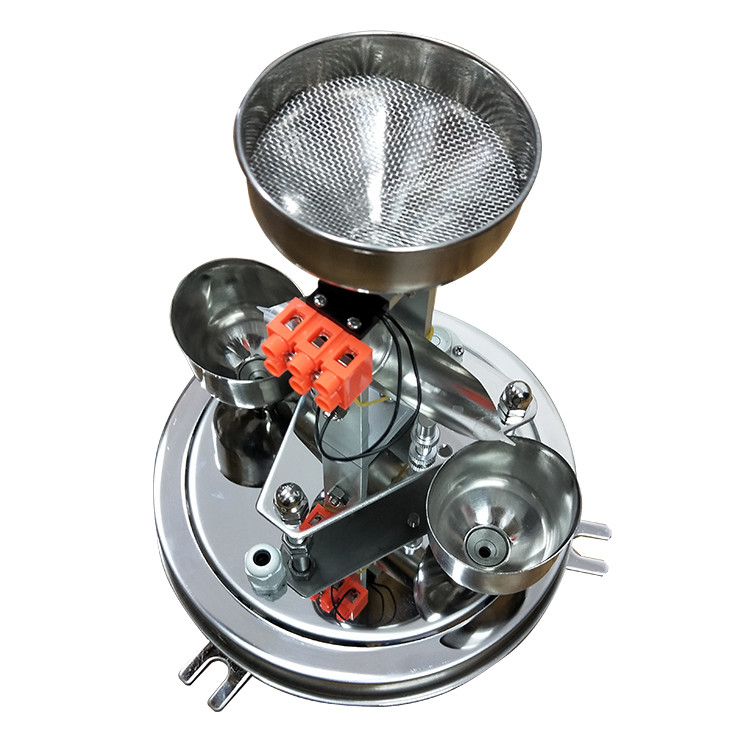

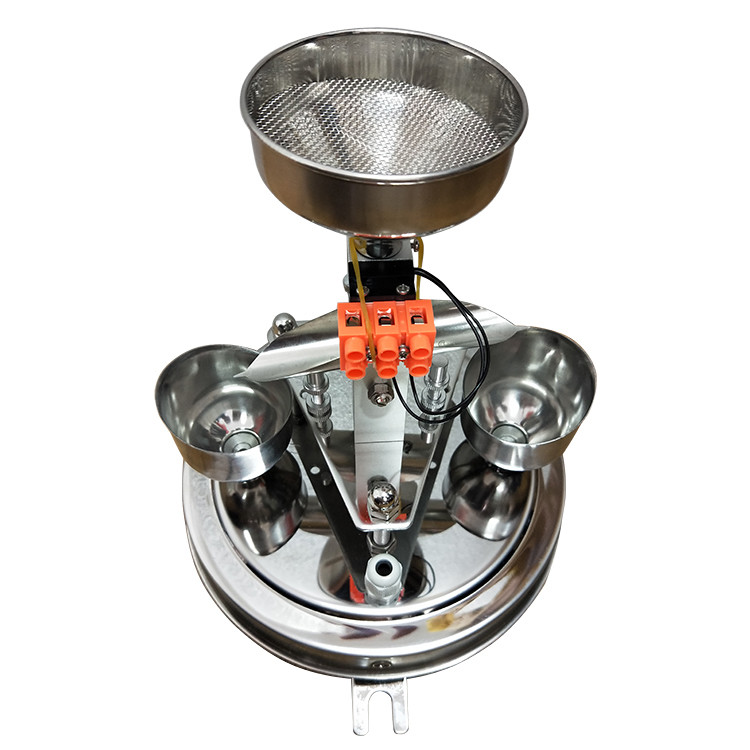

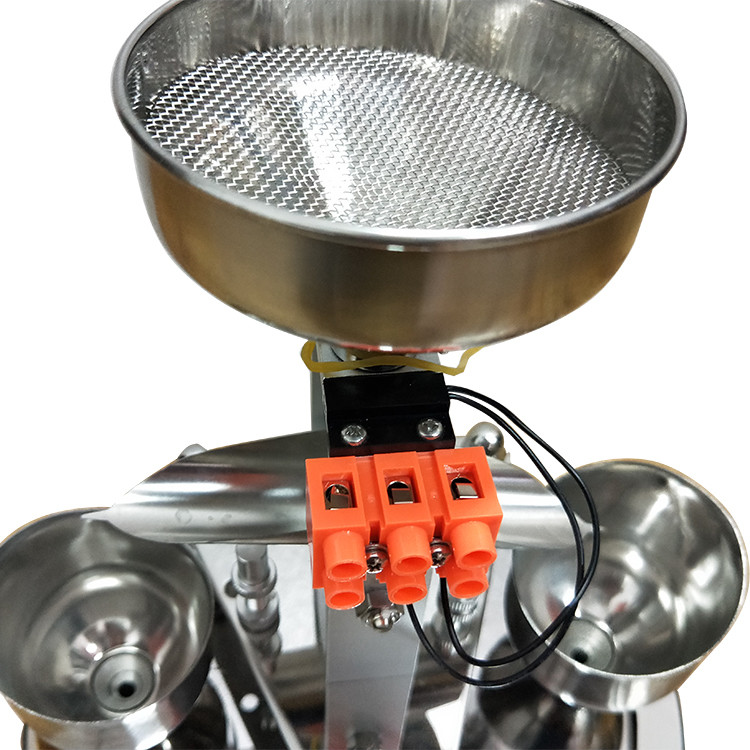

BGT-SS2 Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.

Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 1
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 2
Products Parameters
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 3
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 4
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 5
Type
BGT-SS2
Acute angle of cutting edge
40°~45°
Inner diameter
200mm/8 inch  ±0.3%
Resolution
0.2mm
Measuring range
0~10mm/min
Accuracy
≤±3%
Material
304 Stainless steel
Working humidity
0%~90%RH
Operating Temperature
-10℃~50℃
Insect protection
Steel stainless Mesh
Output
0.1 sec switch closure, Reed switch, 5pulse/mm (MaxDC12V, 500mA)
Discharge Control
Straight through flow mechanism
Level Control
Bulls eye level adhered, leveling screw adjust
Base
Polished steel stainless 304
Mounting holes
Three mountings
Weight
3.6kg
Packing size
310*310*510(mm)
Appliction
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 6
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 7
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 8
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 9
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 10
Company Profile

   Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer.
     We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.

Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 11
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 13
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 15
Our Factory
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 17
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 18
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 19
Related Products
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 20
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 22
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 24

Wind sensor

Tipping bucket rain gauge

Solar radiation sensor

Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 26
Accurate Hydrologic Monitoring 0.2mm Pluviometer Automatic Rain Gauge with 500mA Output 28

                                   Weather Station                                                                Soil Moisture Sensor

Advantages& FAQ

Why Choose Us


    ◆8 years in hydrology and meteorology wireless communication industry
  ◆Apply in more than 50 countries & areas
  ◆Certificated completed
  ◆Millions of terminals on-line
  ◆Strong R&D team, senior staff more than 60
  ◆Support OEM/ODM cooperation


FAQ


Q1: Are you factory or trading company?

A: Yes, We are factory. We design, develop and produce products all by ourselves.

Q2: Can I have a sample order?

A: Yes, sample order for testing is acceptable before bulk order.

Q3. Do you have any MOQ limit?

A: Low MOQ, any order quantity is welcome.

Q4: What about the lead time?

A:Sample order: 3-5working days; bulk order:15-20 working days

Q5: How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.

Q6: Is it OK to print my logo on the products?

A: Yes, we support OEM/ODM service.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: Can I visit your company before placing orders to you?

A: Yes, warmly welcome to visit our company.

Q9: How is the quality of your goods?

A: We make a commitment to sell excellent quality goods to our customers. Should there be any problems with our products, we can send free replacement in the next order upon picture and video confirmation.
