0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection

  • 0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection
  • 0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection
  • 0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection
  • 0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection
  • 0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection
Place of Origin Beijing, China
Brand Name BGT
Model Number WS-601
Minimum Order Quantity 1 piece
Price $85.00/pieces 1-49 pieces
Packaging Details Box
Supply Ability 2000 Piece/Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Rain Sensor Theory Capacitance Sensor
Output Digital Sensor Product Name Tipping Bucket Rain Gauge
Inner Diameter 200mm(8 Inch) Single-tip 0.5mm(15.7cc)
Measuring Range ≤4mm/min Accuracy ±≤ 4%
Operating Temperature -10℃~50℃ Material ABS
Weight 3.5kg Port Tianjin
Leave a Message
Product Description
What We Sell
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 0

Pay more attention on flood , Save more lifes

There are a lot of flood disasters around and it will be more and more important things that we need do to prevent the flood . At the first step is that we need some equipment to forcast the flood so that we can prepare for the coming flood ,such as the flood barrier or move to the safe place .

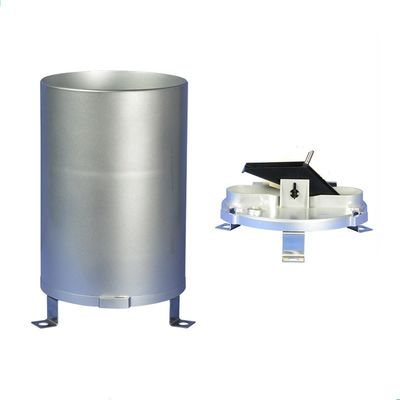

WS-601-1STipping Bucket Rain Gauge

The Model WS-601-1S Tipping Bucket Rain Gauge was designed for the National Weather Service to provide a reliabl, low-cost tipping bucket rain sensor. It has been update and improved with the additionof an inner funnel to even the flow of the railfall into the gauge, providing better accuracy at higher rainfall rates. It simplicity of esign assures trouble-free opertaion , yet provide accurate rainfall measurement . And this kind of rain gauge also can provide you the data logger feature and temperature.




0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 1
Acute angle of cutting edge
40°～45°
inner diameter
Φ200+0.6mm
Single -tip
0.5mm(15.7cc)
Measuring range
4mm/min
Accuracy
≤±4%
Power
Solar panel
Transmission distance
≥100m
Material
ABS
Humidity
95%
Operating Temperature
-10℃~50℃
Discharge Control
Drain out straightly by flow mechanism
Level Control
Bull-eye level fitted on base
Mounting holes
Three mountings
Weight
3.5kg
Height
330mm
Packing size
248*248*380(mm)
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 2
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 3

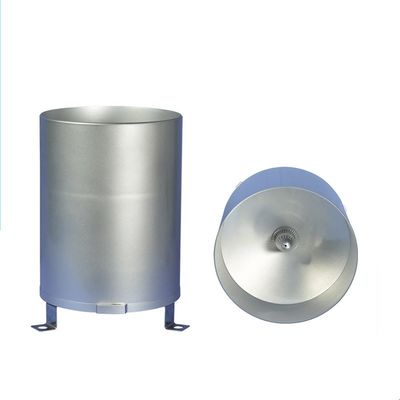

The outdoor tipping bucket rain gauge (rain sensor)

Displays daily,3-years record with total rainfall records and allows remote observation and monitoring. Extremely accurate measurements! Increments of 0.5mm will allow you to know precisely how much rain is falling in your farm and around your house.

0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 4
Appliction
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 5
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 6
Realated Products
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 7
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 8
Company Profile
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 9
EXS&CES
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 10
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 11
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 12
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 13
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 14
Produce &Package
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 15
0.5mm Single-tip Capacitance Sensor Rainfall Collector for Accurate Data Collection 16
Advantages& FAQ

Advantages:

Innovation: All Products have proprietary intellectual property rights

Brand: The main products are the No.1 in the flood monitoring equipment industry

Standard: The only one company who participates in making the national standard in the hydraulic engineering industry.

Market Share : Our main products have top 3 market share in China and have sold our products to more than 28 provinces, 500 counties.



FAQ

Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on the products?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
