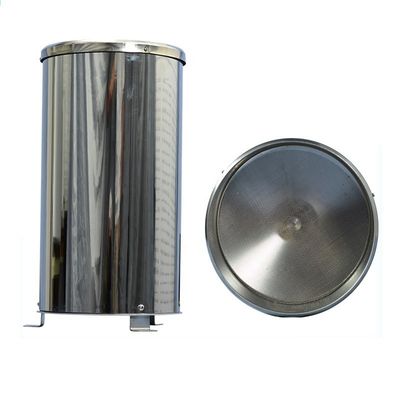

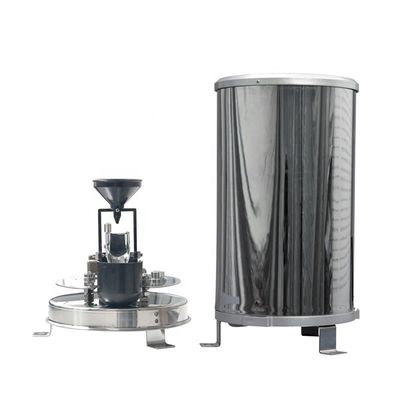

High Accuracy Lora Sensor Tipping Bucket Rainfall Measurement Made in Stainless Steel
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | GXHY |
| Model Number | WS-601-SS2 |
| Minimum Order Quantity | 1 piece |
| Price | $128.00/pieces 1-9 pieces |
| Packaging Details | Cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | High Accuracy Lora Sensor Tipping Bucket Rainfall Measurement | Key Word | Tipping Bucket Rain Gauge |
|---|---|---|---|
| Inner Diameter | 200mm(8 Inch) | Single-tip | 0.2mm |
| Measuring Range | ≤4mm/min | Accuracy | ±≤ 4% |
| Operating Temperature | -10℃~50℃ | Output | Reed Switch, 5 Purlse/mm |
| Material | Stainless Steel | Weight | 3.8kg |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description
High accuracy Lora sensor tipping bucket rainfall measurement from China manufacturer

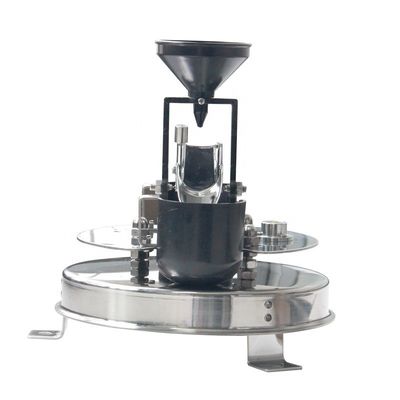

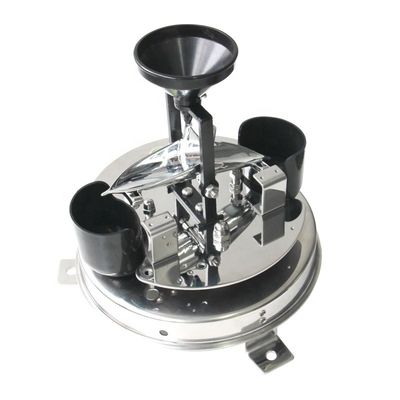

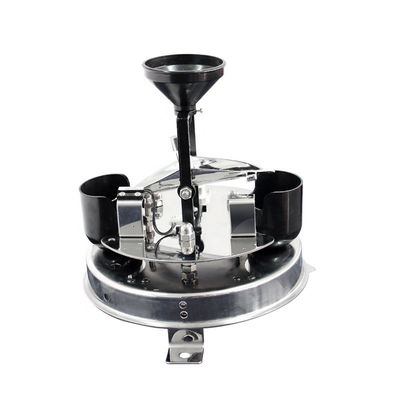

Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.
Note:The tipping bucket rain gauge is just a rainfall sensor,if you need Lora Module,you need to purchase it extra,you can contact us directly.
Products Parameters
Type | WS-601SS2 |
Acute angle of cutting edge | 40°~45° |
Inner diameter | 200mm/8 inch ±0.3% |
Resolution | 0.2mm |
Measuring range | 4mm/min |
Accuracy | ±≤ 2%(≤ 0.4mm/min); ±≤ 4% (≤4mm/min) |
Material | 304 Stainless steel |
Working humidity | 0%~95%RH |
Operating Temperature | -10℃~50℃ |
Insect protection | Steel stainless Mesh |
Output | Reed witch, 5 pulse/mm (MaxDC 24V, 100mA) |
Discharge Control | Straight through flow mechanism |

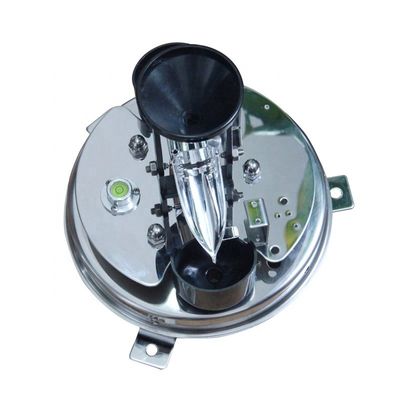

Level Control | Bull-eye level fitted on base |
Base | Polished steel stainless 304 |
Mounting holes | Three mountings |
Weight | 3.8kg |
Packing size | 300*300*500(mm) |
Application
Company Profile
Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer. We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.
Plastic weighing type tipping bucket 0.2mm rain gauge hotting
EXS&CES
Produce &Package
Advantages& FAQ
Why Choose Us
◆8 years in hydrology and meteorology wireless communication industry
◆Apply in more than 50 countries & areas
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
