433MHz lora Tipping bucket rain gauge for rugged stainless steel rainfall measurement
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | WS-601-SS2 |
| Minimum Order Quantity | 1 piece |
| Price | $128.00/pieces 1-9 pieces |
| Packaging Details | Cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 433MHz Lora Rain Measuring Gauge Tipping Bucket Rainfall Sensor | Key Word | Tipping Bucket Rain Gauge |
|---|---|---|---|
| Inner Diameter | 200mm(8 Inch) | Single-tip | 0.2mm |
| Measuring Range | ≤4mm/min | Accuracy | ±≤ 4% |
| Operating Temperature | -10℃~50℃ | Output | Reed Switch, 5 Purlse/mm |
| Material | Stainless Steel | Weight | 4.1kg |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description
433MHz lora rain measuring gauge tipping bucket rainfall sensor
Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.
Note:The tipping bucket rain gauge is just a rainfall sensor,if you need Lora Module,you need to purchase it extra,you can contact us directly.
Features
WMO standard bucket's top diameter (200mm/8")
High Accuracy
Good stability
Low resistance
Mesh in the funnel preventing debris
Highly polished stainless steel construction
Horizontal Bubble in bottom
Application
Environmental monitoring
Water supply system
Hydrological monitoring
Natural disaster monitoring
Climate research
Weather monitoring stations
Smart Agriculture
Calibration Certification
CE
ISO9001

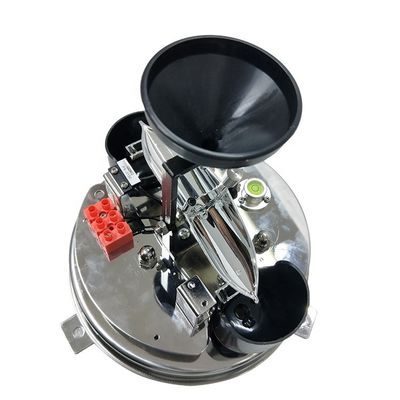

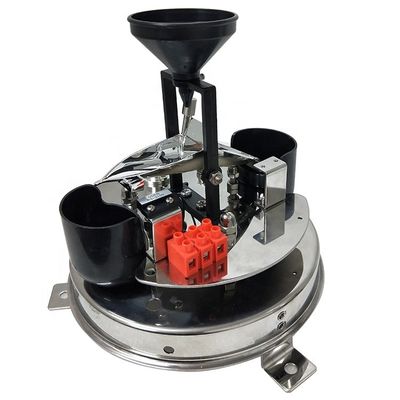

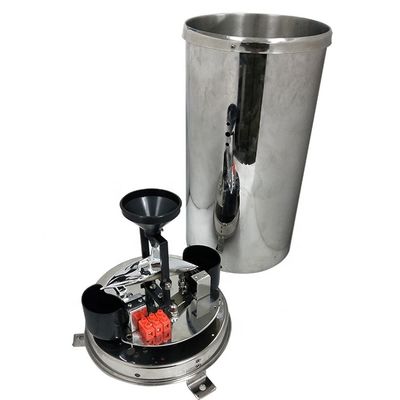

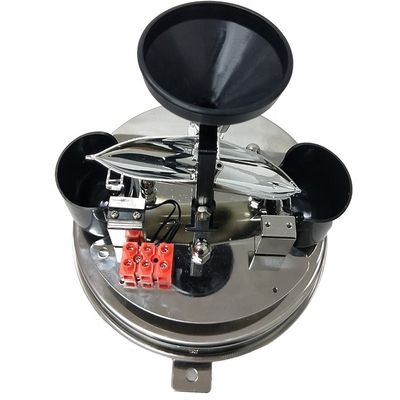

1.Enclosure assembly (Body)
2.Funnel
3.Bracket
4.Tips
5.Reed switch
6. Discharge holder
7. Mounting foot
8. Bull-eye Level
Products Parameters
Type | WS-601SS2 |
Acute angle of cutting edge | 40°~45° |
Inner diameter | 200mm/8 inch ±0.3% |
Resolution | 0.2mm |
Measuring range | 4mm/min |
Accuracy | ±≤ 2%(≤ 0.4mm/min); ±≤ 4% (≤4mm/min) |
Material | 304 Stainless steel |
Working humidity | 0%~95%RH |
Operating Temperature | -10℃~50℃ |
Insect protection | Steel stainless Mesh |
Output | Reed witch, 5 pulse/mm (MaxDC 24V, 100mA) |
Discharge Control | Straight through flow mechanism |
Level Control | Bull-eye level fitted on base |
Base | Polished steel stainless 304 |
Mounting holes | Three mountings |
Weight | 4.1kg |
Packing size | 310*310*470(mm) |
Application
Company Profile
Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer. We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.
Plastic weighing type tipping bucket 0.2mm rain gauge hotting
Produce &Package
Advantages& FAQ
Why Choose Us
◆8 years in hydrology and meteorology wireless communication industry
◆Apply in more than 50 countries & areas
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation
FAQ
Q1: Are you factory or trading company?
A: Yes, We are factory. We design, develop and produce products all by ourselves.
Q2: Can I have a sample order?
A: Yes, sample order for testing is acceptable before bulk order.
Q3. Do you have any MOQ limit?
A: Low MOQ, any order quantity is welcome.
Q4: What about the lead time?
A:Sample order: 3-5working days; bulk order:15-20 working days
Q5: How do you ship the goods?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q6: Is it OK to print my logo on the products?
A: Yes, we support OEM/ODM service.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: Can I visit your company before placing orders to you?
A: Yes, warmly welcome to visit our company.
Q9: How is the quality of your goods?
A: We make a commitment to sell excellent quality goods to our customers. Should there be any problems with our products, we can send free replacement in the next order upon picture and video confirmation.
