0.1mm/0.5mm Resolution Full Stainless Steel Tipping Bucket Rain Gauge Sensor High Accuracy
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-SS2 |
| Minimum Order Quantity | 1 piece |
| Price | $218.88/pieces 1-9 pieces |
| Packaging Details | Box |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Tipping Bucket 0.2 Mm Rain Sensor Irrigation | Resolution | Standard 0.2mm; Optional 0.1mm 0.5mm |
|---|---|---|---|
| Inner Diameter | 200mm(8 Inch) ±0.3% | Measuring Range | 0mm/min~10mm/min |
| Accuracy | ±≤ 2%(≤ 0.4mm/min); ±≤ 3% (≤4mm/min) | Operating Temperature | -10℃~50℃ |
| Material | Stainless Steel 304 | Weight | 4.1kg |
| Output | 0.1 Sec Switch Closure, Reed Switch, 5pulse/mm (MaxDC12V, 500mA) |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
0.1mm / 0.2mm Resolution High Accuracy Full Stainless Steel Material Tipping Bucket Rain Gauge Sensor
BGT-SS2 Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.
Features
WMO standard bucket's top diameter (200mm/8")
High Accuracy
Good stability
Low resistance

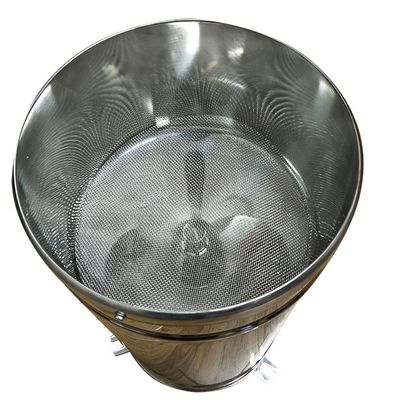

Mesh in the funnel preventing debris
Highly polished stainless steel construction
Horizontal Bubble in bottom
Application
Environmental monitoring
Water supply system
Hydrological monitoring
Natural disaster monitoring
Climate research
Weather monitoring stations
Smart Agriculture

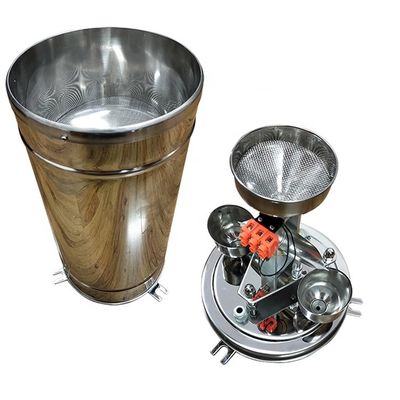

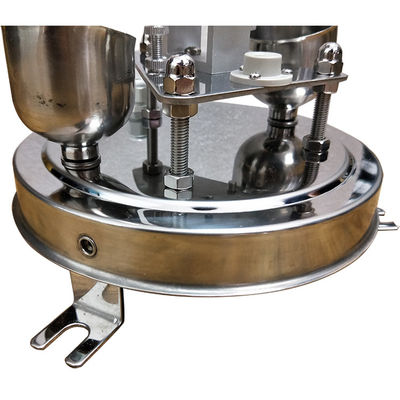

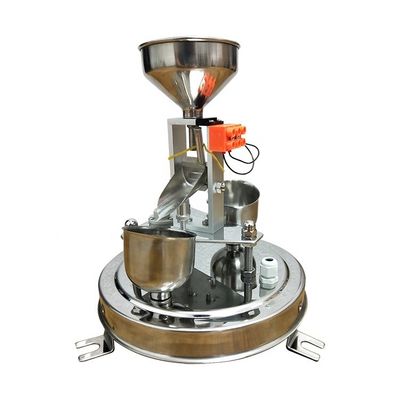

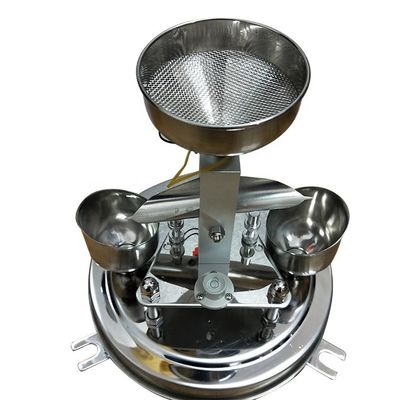

Products Parameters
1.Stainless Steel Enclosure assembly (Body)
2.Stainless Steel Funnel
3.Aluminum Bracket

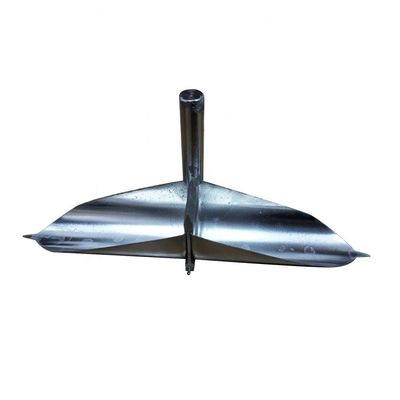

4.Stainless Steel Tips
5.Reed switch
6. Stainless Steel Discharge holder
7. Stainless Steel Mounting foot
8. Bull-eye Level
