Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement

  • Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement
  • Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement
  • Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement
  • Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement
  • Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement
Place of Origin Beijing, China
Brand Name BGT
Model Number WS-601-ABS5
Minimum Order Quantity 1 piece
Price $49.90/pieces 1-49 pieces
Packaging Details Carton

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name WS-601ABS5 0.5mm Plastic Tipping Bucket Rain Gauge Pluviometro Single-tip 0.5mm(15.7cc)
Inner Diameter 200mm(8 Inch)±0.3% Measuring Range ≤4mm/min
Accuracy ±≤ 2%(≤ 0.4mm/min); ±≤ 4% (≤4mm/min) Power Supply AA Batteries
Material ABS+PC Operating Temperature -10℃~50℃
Weight 1.6kg
Leave a Message
Product Description
Please Attention
Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement 0

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement 1

WS-601ABS5 0.5mm plastic tipping bucket rain gauge pluviometro

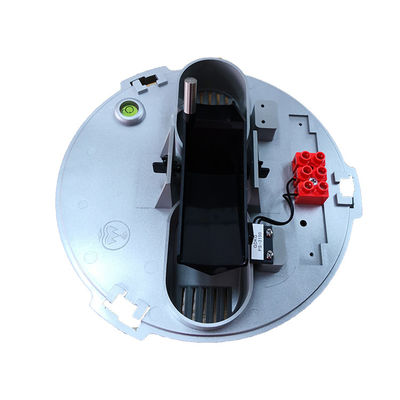

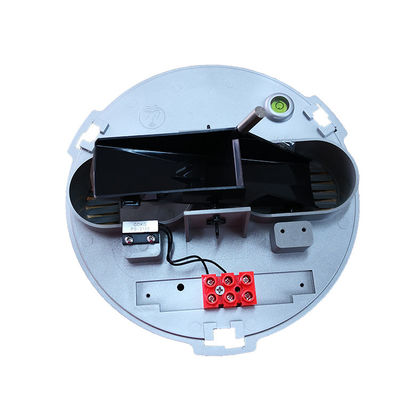

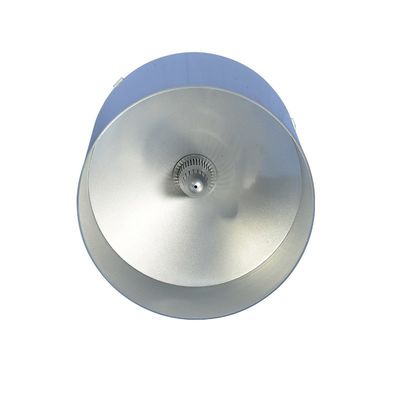

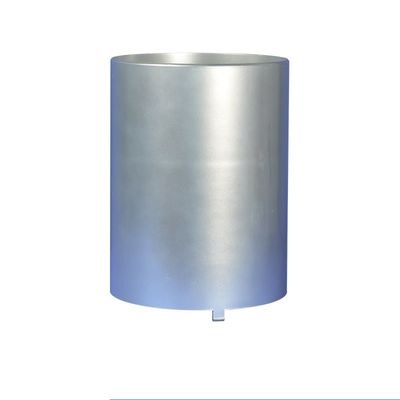

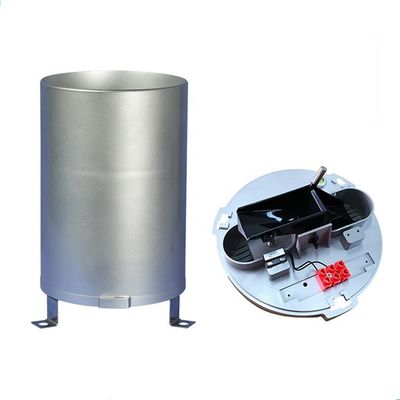

WS-601 Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. The rain gauge operates on the tipping bucket principle, and can be supplied with two types of bucket assemblies; Stainless steel 304 or ABS (Plastic). A receiver of 200mm diameter collects the rainfall, which then flows through the Stainless Steel Catch Filter and then passes into the tipping bucket measuring system. One tip of the bucket will occur when the calibrated resolution of precipitation is collected (either 0.2mm, 0.5mm, or 0.1mm). When the bucket tips, it will pass the encapsulated Dual Reed Switch assembly that detects these events and produces a momentary contact closure signal.

0.5mm pc abs rain gauge rain measurer for landslide monitoring

Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement 2
Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement 3
Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement 4
Acute angle of cutting edge
40°~45°
inner diameter
Φ200+0.6mm
Resolution
0.5mm(15.7cc)
MAX rainfall intensity allowed
8mm/min
Accuracy
±≤ 2%(≤ 0.4mm/min); ±≤ 4% (≤4mm/min);
Transmission distance
≥100m
Material
PC and ABS mixed
Humidity
95%
Operating Temperature
-10℃~50℃
Discharge Control
drain out straightly by flow mechanism
Level Control
Bull-eye level fitted on base
Mounting holes
Three mountings
Weight
1.6kg
Bucket Height
330mm
Packing size
26*26*42cm
Application
Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement 5
Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement 6
Plastic Tipping Bucket Rain Gauge WS-601ABS5 0.5mm Single-tip for Precise Measurement 7
