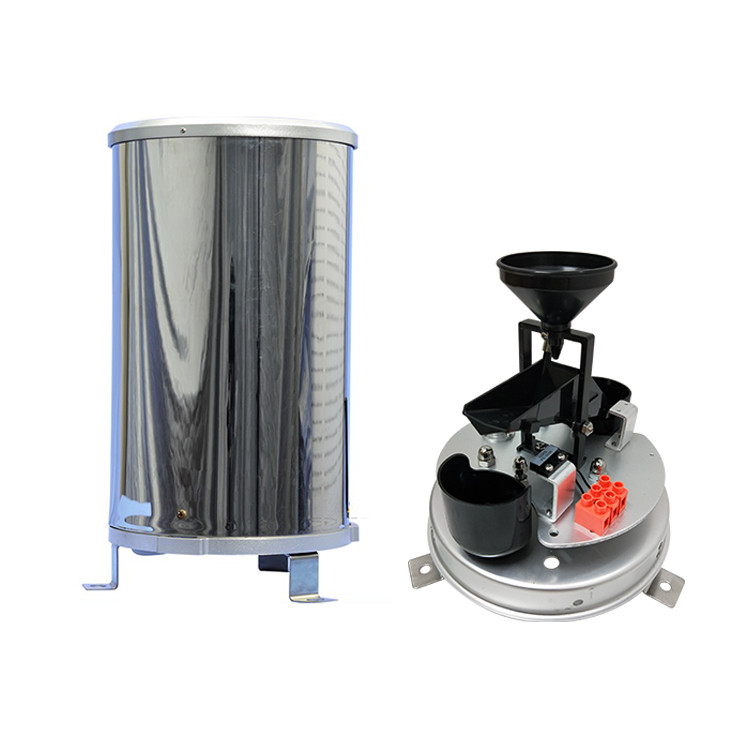

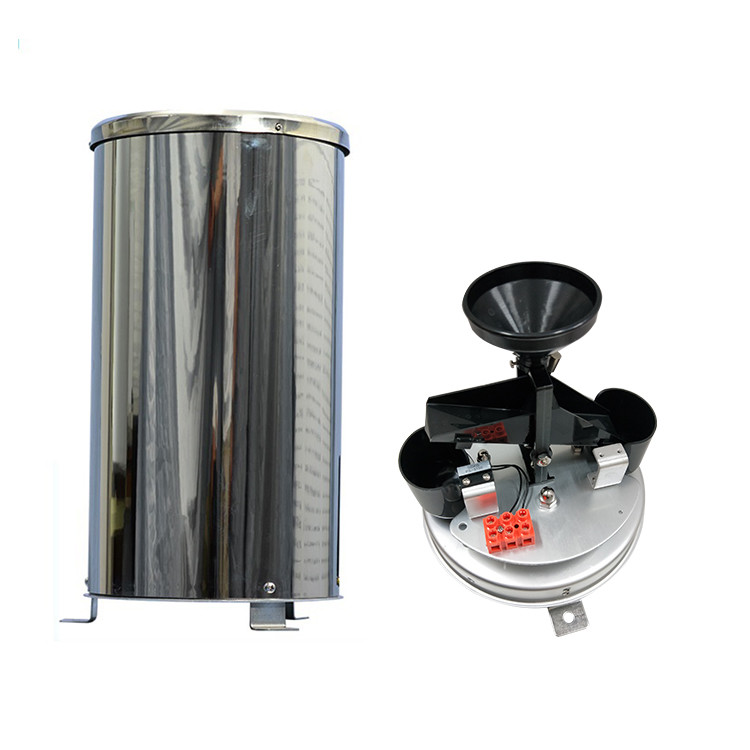

Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation

Place of Origin Beijing, China
Brand Name BGT
Model Number WS-601SS5
Minimum Order Quantity 1 piece
Price $88.90/sets 1-9 sets
Packaging Details CARTON

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Irrigation Rain Sensor Tipping Bucket Rain Gauge Resolution 0.5mm; Optional:0.1mm/0.2mm
Inner Diameter 200mm(8 Inch) Measuring Range ≤4mm/min
Accuracy ±≤ 2%(≤ 0.4mm/min); ±≤ 4% (≤4mm/min) Operating Temperature -10℃~50℃
Material Steel Stainless Weight 3.8kg
Leave a Message
Product Description
Please Attention
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 0
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 1

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.

Intelligent 0.5mm irrigation rain sensor tipping bucket rain gauge

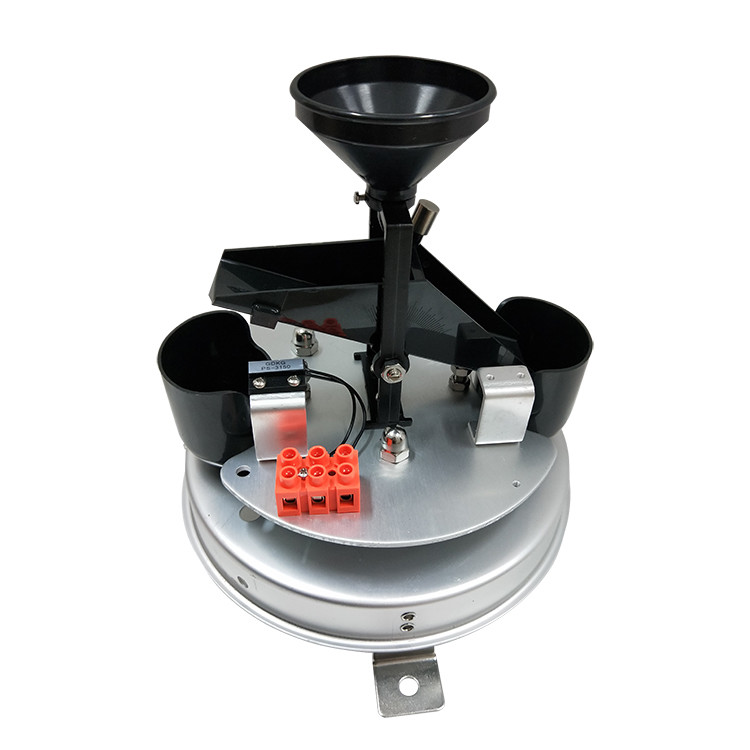

The Model WS-601-1S Tipping Bucket Rain Gauge (rain sensor) was designed for the National Weather Service to provide a reliable, low-cost tipping bucket rain sensor. It has been update and improved with the additionof an inner funnel to even the flow of the railfall into the gauge, providing better accuracy at higher rainfall rates. It simplicity of esign assures trouble-free opertaion , yet provide accurate rainfall measurement . And this kind of rain gauge also can provide you the data logger feature and temperature.

Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 2

Features

WMO standard bucket's top diameter (200mm/8")

High Accuracy

Good stability

Low resistance

Mesh in the funnel preventing debris

Highly polished stainless steel construction

Horizontal Bubble in bottom


Application

Environmental monitoring

Water supply system

Hydrological monitoring

Natural disaster monitoring

Climate research

Weather monitoring stations

Smart Agriculture

Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 3
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 4
Type
WS-601SS5
Acute angle of cutting edge
40°~45°
Inner diameter
200mm/8 inch  ±0.3%
Resolution
0.5mm
Measuring range
4mm/min
Accuracy
≤±4%
Material
304 Stainless steel
Working humidity
0%~95%RH
Operating Temperature
-10℃~50℃
Insect protection
Steel stainless Mesh
Output

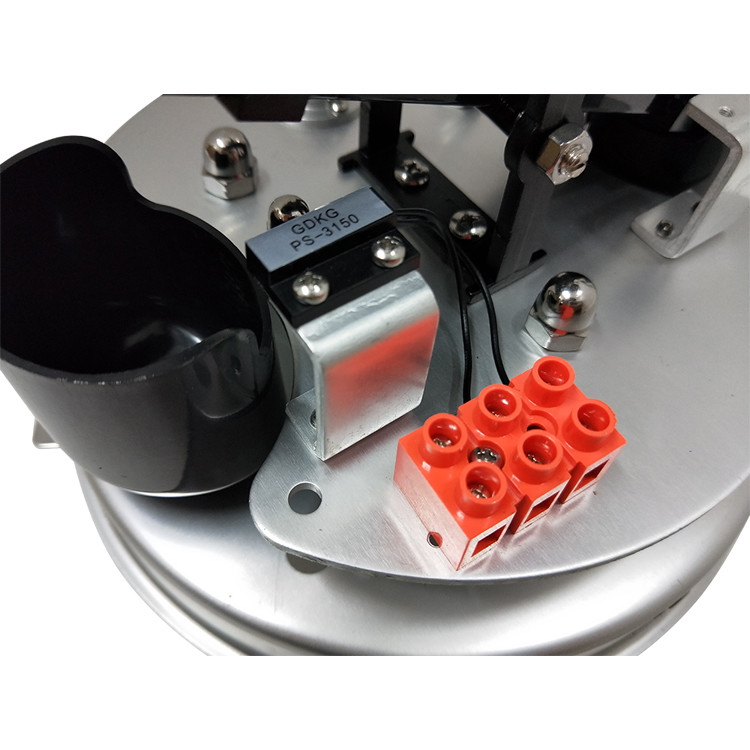

Reed witch, 2 pulse/mm (MaxDC 24V, 100mA)
Discharge Control
Straight through flow mechanism
Level Control

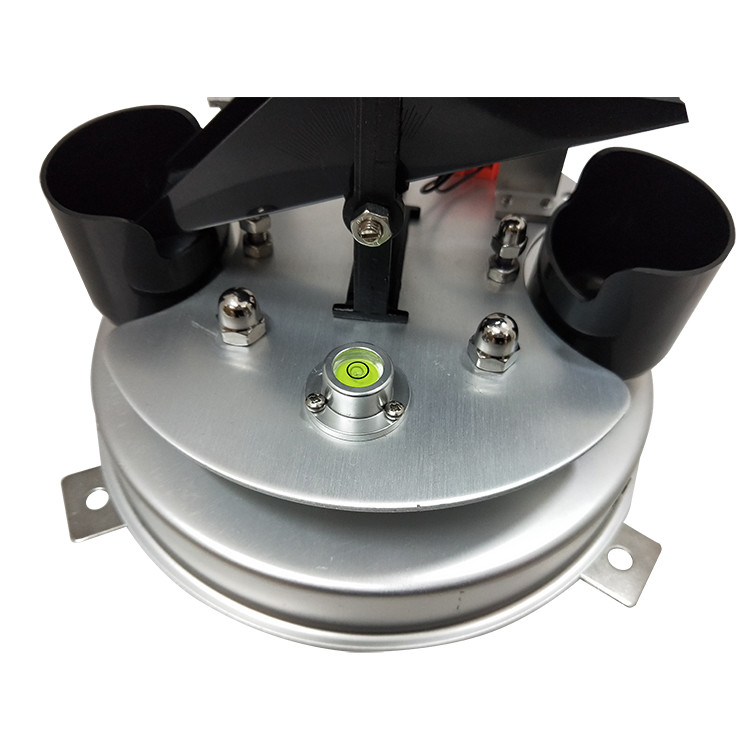

Bull-eye level fitted on base
Base
Diecast aluminium
Mounting holes
Three mountings
Weight
3.6kg
Packing size
300*300*500(mm)
Appliction
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 5
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 6
Company Profile

   Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer.
     We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.

Intelligent 0.5mm irrigation rain sensor tipping bucket rain gauge
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 8
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 9
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 10
EXS&CES
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 11
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 13
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 15
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 17
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 19
Produce &Package
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 21
Intelligent Stainless Steel 0.5mm Resolution Tipping Bucket Rain Gauge for Irrigation 22
Advantages& FAQ

Why Choose Us


    ◆8 years in hydrology and meteorology wireless communication industry
  ◆Apply in more than 50 countries & areas
  ◆Certificated completed
  ◆Millions of terminals on-line
  ◆Strong R&D team, senior staff more than 60
  ◆Support OEM/ODM cooperation


FAQ


Q1: Are you factory or trading company?

A: Yes, We are factory. We design, develop and produce products all by ourselves.

Q2: Can I have a sample order?

A: Yes, sample order for testing is acceptable before bulk order.

Q3. Do you have any MOQ limit?

A: Low MOQ, any order quantity is welcome.

Q4: What about the lead time?

A:Sample order: 3-5working days; bulk order:15-20 working days

Q5: How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.

Q6: Is it OK to print my logo on the products?

A: Yes, we support OEM/ODM service.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: Can I visit your company before placing orders to you?

A: Yes, warmly welcome to visit our company.

Q9: How is the quality of your goods?

A: We make a commitment to sell excellent quality goods to our customers. Should there be any problems with our products, we can send free replacement in the next order upon picture and video confirmation.
