200mm Inner Diameter Rain Gauge Sensor for PC and ABS Mixed Automatic Weather Station
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | WS-601 |
| Minimum Order Quantity | 1 piece |
| Price | $85.00/pieces 10-99 pieces |
| Packaging Details | Cartons |
| Supply Ability | 2000 Piece/Pieces per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Customized Support | OEM | Model | WS-601 |
|---|---|---|---|
| Inner Diameter | 200mm | Communication | 433Mhz / GSM /GPRS |
| Single-tip | 0.5mm(15.7cc) | Accuracy | ±≤ 4% |
| Operating Temperature | -20℃~50℃ | Weight | 3.5kg |
| Material | PC And ABS Mixed | Application | Weather Station / Rainfall Measurement |
| Key Word | Tipping Bucket Rain Gauge | Port | Tianjin |
Product Description
What We Sell
Pay more attention on flood , Save more lifes
Product Description

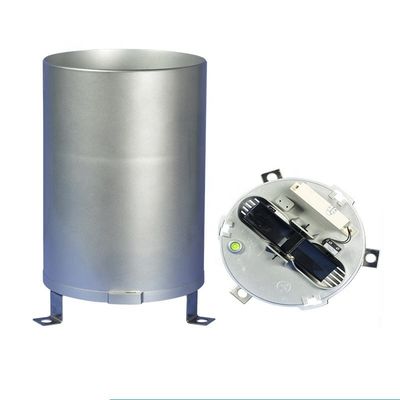

WS-601-A Tipping Bucket rain gauge
The Model WS-601-A Tipping Bucket Rain Gauge was designed for the National Weather Service to provide a reliabl, low-cost tipping bucket rain sensor. It has been update and improved with the additionof an inner funnel to even the flow of the railfall into the gauge, providing better accuracy at higher rainfall rates. It simplicity of esign assures trouble-free opertaion , yet provide accurate rainfall measurement .
Note:The tipping bucket rain gauge is just a rainfall sensor,if you need Lora Module,you need to purchase it extra,you can contact us directly.
Specifications
Acute angle of cutting edge | 40°~45° |
inner diameter | Φ200+0.6mm |
Rainfall definition | 0.5mm(15.7cc) |
MAX rainfall intensity allowed | 8mm/min |
Measurement error | ≤±4% |
Transmission distance | ≥100m |
Material | PC and ABS mixed |
Humidity | 95% |
Operating Temperature | -10℃~50℃ |
Discharge Control | drain out straightly by flow mechanism |
Level Control | Bull-eye level fitted on base |
Mounting holes | Three mountings |
Bucket net Weight | 1.655kg |
Bucket Height | 330mm |
Packing size | 248*248*380(mm) |

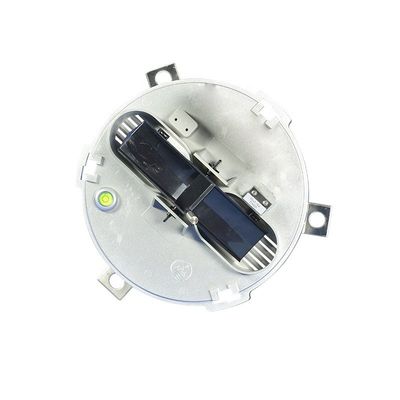

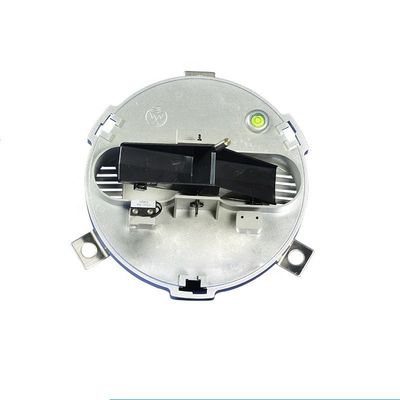

1. Collector mouth 2. Filter 3. Bucket body 4. Tripping bucket 5. Bull-eye level
6. Mounting 7. Base
Application
Company Profile
Beijing Guoxinhuayuan is a high- tech company which manufacture of flood monitoring equipment and system. We have our own R&D, Design and Sales departments and devoted to developing the technology of the flood monitoring equipment. With more than 50 patents in the flood monitoring industry.Guoxinhuayuan is a R&D oriented company which has a team with more than 10 people. We are the only one company which make the National Stand of the flood monitoring system and equipment. We have done very well at our domestic market , providing our products to 23 provinces and 500 counties .Business has no boundary , hope we can have a great start .
EXS&CES
Advantages& FAQ
Advantages:
Innovation: All Products have proprietary intellectual property rights
Brand: The main products are the No.1 in the flood monitoring equipment industry
Standard: The only one company who participates in making the national standard in the hydraulic engineering industry.
Market Share : Our main products have top 3 market share in China and have sold our products to more than 28 provinces, 500 counties.
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q9: Hoe about shipping?
A:1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days 2.Send by Air: Arrive at destination Airport fast then pick it up by yourself
3.Ship by Sea: Low shipping cost and slow delivery (15 - 30days)Recommended Products
