0.2mm Precipitation Calibration Electronic Rain Gauge Sensor for Measuring Range ≤4mm/min
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | GXHY |
| Model Number | WS-601-1S |
| Minimum Order Quantity | 1 piece |
| Price | $128.00/pieces 1-9 pieces |
| Packaging Details | Box |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Tipping Bucket Rain Gauge | Inner Diameter | 200mm(8 Inch) |
|---|---|---|---|
| Single-tip | 0.2mm | Measuring Range | ≤4mm/min |
| Accuracy | ±≤ 4% | Operating Temperature | -10℃~50℃ |
| Output | Reed Switch, 5 Purlse/mm | Material | ABS |
| Weight | 3.5kg |
Product Description
What We Sell
Tipping bucket rain gauge

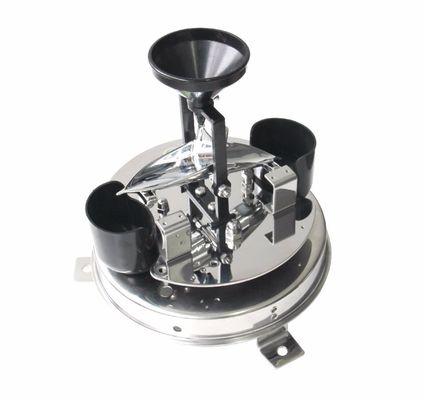

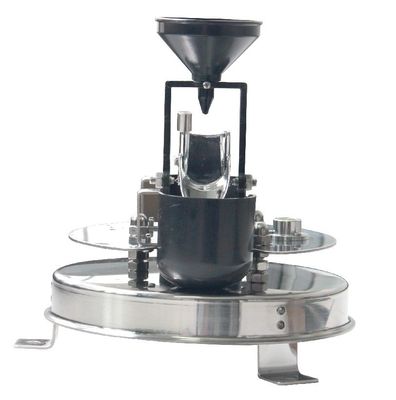

The tipping bucket rain gauge consists of a funnel that collects and channels the precipitation into a small seesaw-like container. After a pre-set amount of precipitation falls, the lever tips, dumping the collected water and sending an electrical signal
WS-601-1SS
The Model WS-601-1SS tipping bucket rain Gauge was designed for the National Weather Service to provide a reliabl, low-cost tipping bucket rain sensor. It has been update and improved with the additionof an inner funnel to even the flow of the railfall into the gauge, providing better accuracy at higher rainfall rates. It simplicity of esign assures trouble-free opertaion , yet provide accurate rainfall measurement . And this kind of rain gauge also can provide you the data logger feature and temperature.
FEATURES
World standard 200mm diameter catch
High accuracy-not affected by rainfall intensity
Long term stable calibration
Minimal maintenance required
Highly polished and Strength ABS Body
Horizontal Bubble in the bottom
High accuracy-not affected by rainfall intensity
Long term stable calibration
Minimal maintenance required
Highly polished and Strength ABS Body
Horizontal Bubble in the bottom
ABS UV Stabilished Plastic Bucket.
APPLICATIONS
Flood warning
Hydrological monitoring
Dam and levee safety
Automatic weather station
Natural disaster monitoring
Agro-meteorological research
Climate research
Appliction
Realated Products
Company Profile
EXS&CES
Produce &Package
Advantages& FAQ
Advantages:
Innovation: All Products have proprietary intellectual property rights
Brand: The main products are the No.1 in the flood monitoring equipment industry
Standard: The only one company who participates in making the national standard in the hydraulic engineering industry.
Market Share : Our main products have top 3 market share in China and have sold our products to more than 28 provinces, 500 counties.
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
