200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution

  • 200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution
  • 200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution
  • 200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution
  • 200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution
  • 200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution
Place of Origin Beijing, China
Brand Name BGT
Model Number WS-601
Minimum Order Quantity 1 piece
Price $125.00 - $165.00/pieces
Packaging Details Box
Supply Ability 2000 Piece/Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Rain Sensor Theory Reed Switch
Output Switching Transducer, Reed Switch, 5 Purlse/mm Product Name Tipping Bucket Rain Gauge
Inner Diameter 200mm(8 Inch) Single-tip 0.2mm
Measuring Range ≤4mm/min Accuracy ±≤ 4%
Operating Temperature -10℃~50℃ Material ABS
Weight 3.5kg Port Tianjin
Leave a Message
Product Description
What We Sell
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 0

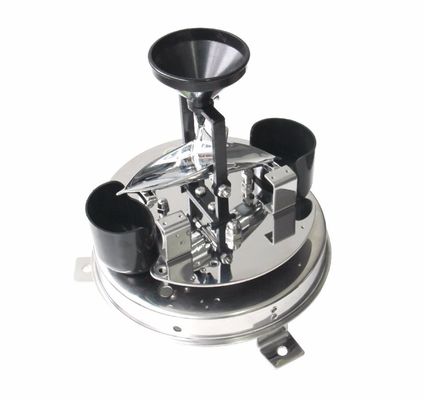

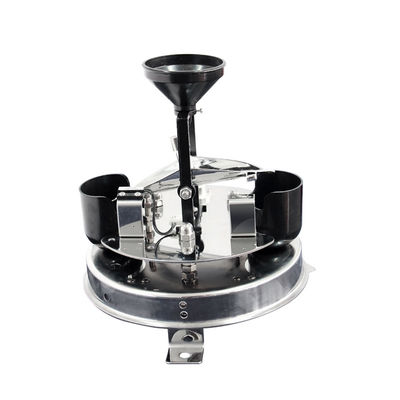

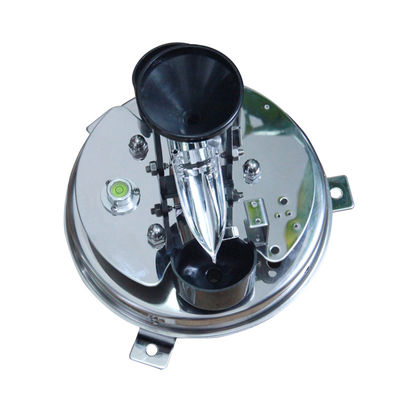

Tipping bucket rain gauge

The tipping bucket rain gauge consists of a funnel that collects and channels the precipitation into a small seesaw-like container. After a pre-set amount of precipitation falls, the lever tips, dumping the collected water and sending an electrical signal


WS-601-1SS

The Model WS-601-1SS tipping bucket rain Gauge was designed for the National Weather Service to provide a reliabl, low-cost tipping bucket rain sensor. It has been update and improved with the additionof an inner funnel to even the flow of the railfall into the gauge, providing better accuracy at higher rainfall rates. It simplicity of esign assures trouble-free opertaion , yet provide accurate rainfall measurement . And this kind of rain gauge also can provide you the data logger feature and temperature.




200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 1
Acute angle of cutting edge
40°～45°
inner diameter
Φ200+0.6mm
0.2gle -tip
0.2mm
Measuring range
4mm/min
Accuracy
≤±4%
Bucket
ABS UV Stabilished plastic bucket
Transmission distance
≥100m
Material
SS304
Humidity
95%
Operating Temperature
-10℃~50℃
Discharge Control
Drain out straightly by flow mechanism
Level Control
Bull-eye level fitted on base
Mounting holes
Three mountings
Weight
3.5kg
Height
330mm
Packing size
300*300*500(MM)
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 2
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 3



200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 4
Appliction
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 5
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 6
Realated Products
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 7
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 8
Company Profile
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 9
EXS&CES
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 10
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 11
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 12
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 13
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 14
Produce &Package
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 15
200mm Inner Diameter Electronic Tipping Bucket Rain Gauge Sensor with 0.2mm Resolution 16
Advantages& FAQ

Advantages:

Innovation: All Products have proprietary intellectual property rights

Brand: The main products are the No.1 in the flood monitoring equipment industry

Standard: The only one company who participates in making the national standard in the hydraulic engineering industry.

Market Share : Our main products have top 3 market share in China and have sold our products to more than 28 provinces, 500 counties.



FAQ

Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on the products?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
