10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design

Place of Origin Beijing, China
Brand Name BGT
Model Number WS-601-SS
Minimum Order Quantity 1 piece
Price $128.00/pieces 1-9 pieces
Packaging Details Carton

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Word Tipping Bucket Rain Gauge Product Name 0.2mm Metal Tipping Bucket Rain Gauge
Inner Diameter 200mm(8 Inch) Single-tip 0.2mm
Measuring Range ≤4mm/min Accuracy ±≤ 4%
Operating Temperature -10℃~50℃ Output Reed Switch, 5 Purlse/mm
Material Stainless Steel Weight 4.1kg
Leave a Message
Product Description
Please Attention
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 0

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 1
Product Description

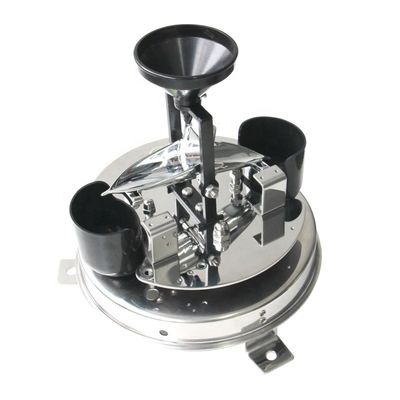

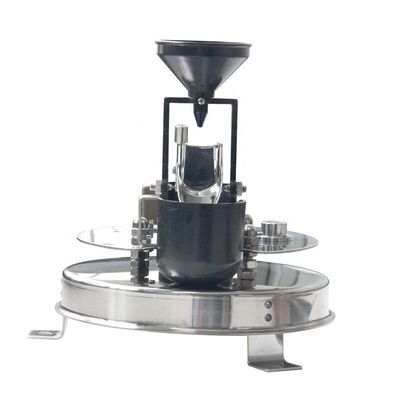

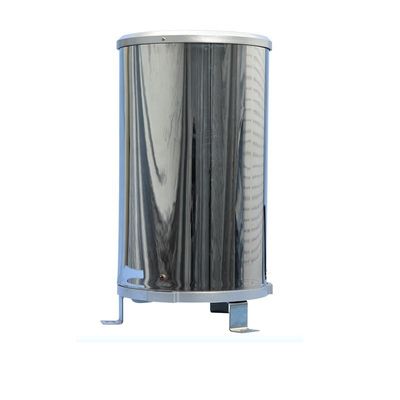

0.2mm metal tipping bucket rain gauge

The Model WS-601-1SS tipping bucket rain Gauge was designed for the National Weather Service to provide a reliabl, low-cost tipping bucket rain sensor. It has been update and improved with the additionof an inner funnel to even the flow of the railfall into the gauge, providing better accuracy at higher rainfall rates. It simplicity of esign assures trouble-free opertaion , yet provide accurate rainfall measurement . And this kind of rain gauge also can provide you the data logger feature and temperature.




10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 2
Acute angle of cutting edge
40°~45°
inner diameter
Φ200+0.6mm
0.2gle -tip
0.2mm
Measuring range
4mm/min
Accuracy
≤±4%
Bucket
ABS UV Stabilished plastic bucket
Transmission distance
≥100m
Material
SS304
Humidity
95%
Operating Temperature
-10℃~50℃
Discharge Control
Drain out straightly by flow mechanism
Level Control
Bull-eye level fitted on base
Mounting holes
Three mountings
4.1 Weight
4.1 Kg
Height
330mm
Packing size
300*300*500(MM)
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 3
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 4



Application
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 5
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 6
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 7
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 8
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 9
Company Profile

   Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company with R&D, production, marketing, project implementation and after sales. We are focus on providing professional hydrology and meteorology monitoring device and technical service, and developed a series of flood early warning system products by ourselves, which owing more than 50 patents and 60 software copyrights. Then our product line is including monitoring products, communication products, early warning products and cloud platform. However, our products have been sold to more than 30 countries, such as Australia, Japan, Sri Lanka and so on. Especially our tipping bucket rain gauge is doing well in foreign countries. Meanwhile, our products are covered all provinces in China and we have Guangxi/Guangdong/Hunan/Hubei/Qinhai branches.

     We are devoted to solving the flood disaster problems for human beings and becoming one of the famous brands in the flood early-warning industry. Welcome to contact us.
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 10
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 11
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 12
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 13
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 14
Produce &Package
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 15
10C-50C Metal Tipping Bucket Rain Gauge with ±≤ 4% Accuracy and User-Friendly Design 16
Advantages& FAQ

Why Choose Us

◆8 years in hydrology and meteorology wireless communication industry

◆Apply in more than 50 countries & areas

◆Certificated completed

◆Millions of terminals on-line

◆Strong R&D team, senior staff more than 60

◆Support OEM/ODM cooperation


FAQ


Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on the products?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
