Reed Switch Output WS-601 0.2mm Rainfall Measurement Sensor for Environment Monitoring
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | WS-601SS2 |
| Minimum Order Quantity | 1 piece |
| Price | $128.80/pieces 1-9 pieces |
| Packaging Details | Cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1year | Customized Support | OEM, ODM |
|---|---|---|---|
| Product Name | 0.2mm Rainfall Measurement Steel Stainless Tipping Bucket Rain Gauge | Inner Diameter | 200mm(8 Inch) |
| Resolution | 0.2mm | Measuring Range | ≤4mm/min |
| Bucket | ABS UV Stabilished Plastic Bucket | Accuracy | ±≤ 4% |
| Output | Reed Switch, 5 Purlse/mm | Material | Stainless Steel |
| Operating Temperature | -10℃~50℃ | Weight | 3.8kg |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description

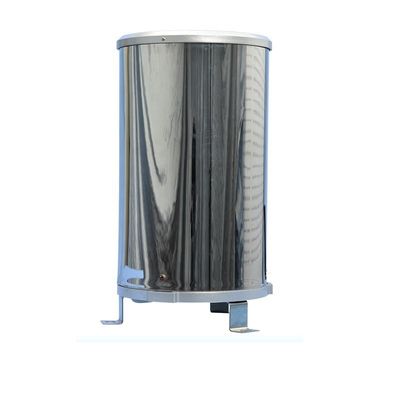

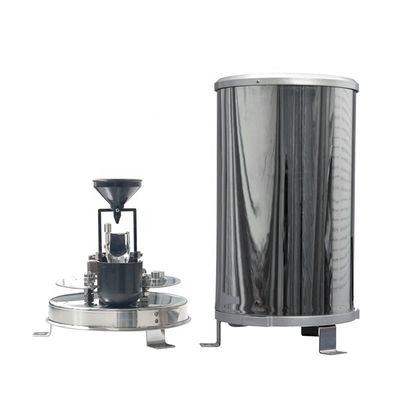

WS-601SS2 Tipping Bucket Rain Gauge
Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.
Features
WMO standard bucket's top diameter (200mm/8")
High Accuracy
Good stability
Low resistance
Mesh in the funnel preventing debris
Highly polished stainless steel construction
Horizontal Bubble in bottom
Application
Environmental monitoring
Water supply system
Hydrological monitoring
Natural disaster monitoring
Climate research
Weather monitoring stations
Smart Agriculture

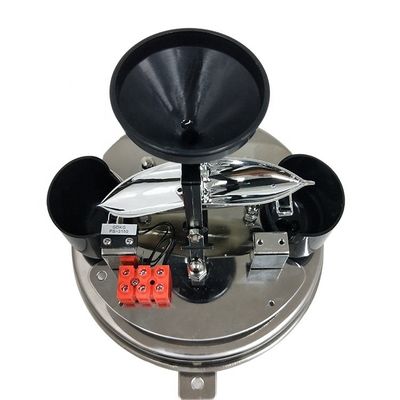

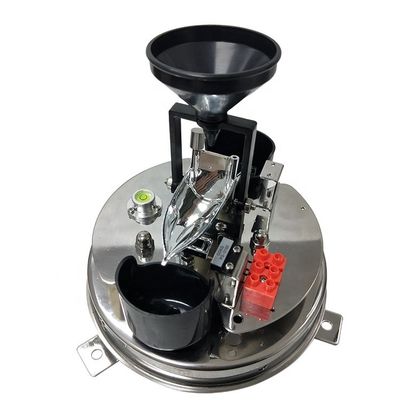

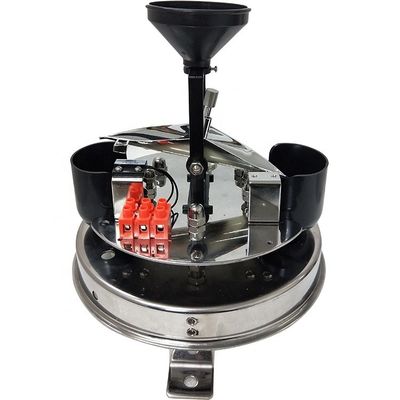

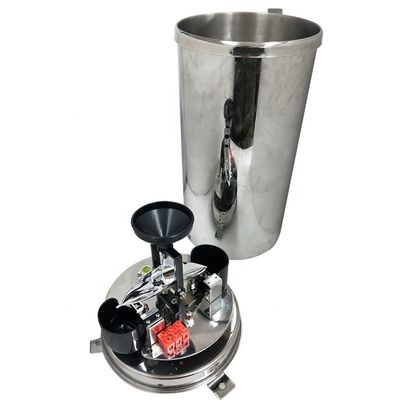

1.Stainless Steel Enclosure assembly (Body)
2.Stainless Steel Funnel
2.Stainless Steel Funnel
3.Aluminum Bracket
4.Stainless Steel Tips
4.Stainless Steel Tips
5.Reed switch.
6. Stainless Steel Discharge holder
7. Stainless Steel Mounting foot
8. Bull-eye Level
Acute angle of cutting edge | 40°~45° |
inner diameter | Φ200+0.6mm |
0.2gle -tip | 0.2mm |
Measuring range | ≤4mm/min |
Accuracy | ±≤ 2%(≤ 0.4mm/min); ±≤ 4% (≤4mm/min); |
Tips | ABS UV Stabilished plastic Tips |
Material | SS304 |
Humidity | 95% |
Operating Temperature | -10℃~50℃ |
Discharge Control | Drain out straightly by flow mechanism |
Level Control | Bull-eye level fitted on base |
Mounting holes | Three mountings |
Weight | 3.6kg |
Height | 330mm |
Packing size | 310*310*460(MM) |
Appliction
Company Profile
EXS&CES
Produce &Package
Advantages& FAQ
Advantages:
Innovation: All Products have proprietary intellectual property rights
Brand: The main products are the No.1 in the flood monitoring equipment industry
Standard: The only one company who participates in making the national standard in the hydraulic engineering industry.0.2mm rainfall measurement used steel stainless tipping bucket rain gauge
Market Share : Our main products have top 3 market share in China and have sold our products to more than 28 provinces, 500 counties.
FAQ0.2mm rainfall measurement used steel stainless tipping bucket rain gauge
Q1. Can I have a sample order ?
0.2mm rainfall measurement used steel stainless tipping bucket rain gauge
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
0.2mm rainfall measurement used steel stainless tipping bucket rain gauge
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
0.2mm rainfall measurement used steel stainless tipping bucket rain gauge
Q4. How do you ship the goods and how long does it take to arrive?
0.2mm rainfall measurement used steel stainless tipping bucket rain gauge
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
0.2mm rainfall measurement used steel stainless tipping bucket rain gauge
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
0.2mm rainfall measurement used steel stainless tipping bucket rain gauge
Q6. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
0.2mm rainfall measurement used steel stainless tipping bucket rain gauge
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
0.2mm rainfall measurement used steel stainless tipping bucket rain gauge
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.0.2mm rainfall measurement used steel stainless tipping bucket rain gauge
