High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4%

  • High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4%
  • High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4%
  • High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4%
  • High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4%
  • High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4%
Place of Origin Beijing, China
Brand Name GXHY
Model Number WS-601-AP
Minimum Order Quantity 1 piece
Price $65.00 - $280.00/sets
Packaging Details carton
Supply Ability 2000 Piece/Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Tipping Bucket Rain Gauge Inner Diameter 200mm(8 Inch)
Single-tip 0.5mm(15.7cc) Measuring Range ≤4mm/min
Accuracy ±≤ 4% Power Supply Solar Panel
Operating Temperature -10℃~50℃ Material SS 304
Weight 3.6 Kg Port Tianjin
Leave a Message
Product Description
What We Sell
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 0

Pay more attention on flood , Save more lifes

There are a lot of flood disasters around adn it will be more and more important things that we need do to prevent the flood . At the first step is that we need some equipment to forcast the flood so that we can prepare for the coming flood ,such as the flood barrier or move to the safe place .


Product Description

WS-601-1STipping Bucket Rain Gauge

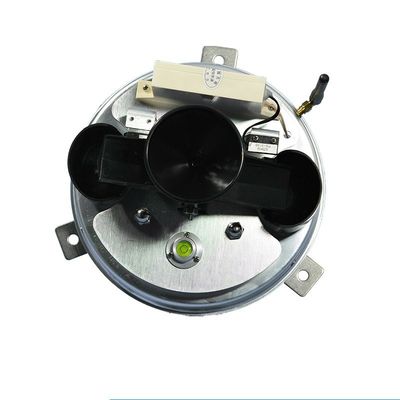

The Model WS-601-1S Tipping Bucket Rain Gauge was designed for the National Weather Service to provide a reliabl, low-cost tipping bucket rain sensor. It has been update and improved with the additionof an inner funnel to even the flow of the railfall into the gauge, providing better accuracy at higher rainfall rates. It simplicity of esign assures trouble-free opertaion , yet provide accurate rainfall measurement . And this kind of rain gauge also can provide you the data logger feature and temperature.




High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 1
Acute angle of cutting edge
40°～45°
inner diameter
Φ200+0.6mm
Single -tip
0.5mm(15.7cc)
Measuring range
4mm/min
Accuracy
≤±4%
Power
Solar  Panel
Transmission distance
≥100m
Communication mode
433MHz (China is free) 868MHZ( USA is free)
Material
ABS
Humidity
95%
Operating Temperature
-10℃~50℃
Discharge Control
Drain out straightly by flow mechanism
Level Control
Bull-eye level fitted on base
Mounting holes
Three mountings
Weight
3.5kg
Height
330mm
Packing size
248*248*380(mm)
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 2
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 3

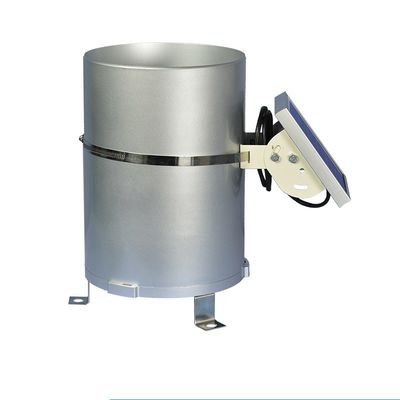

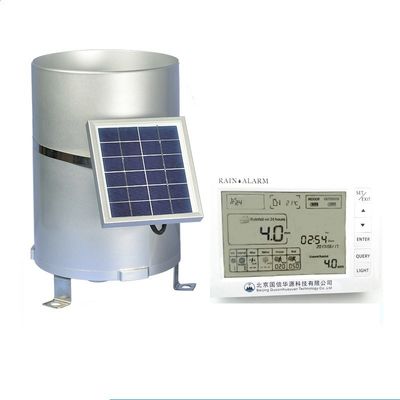

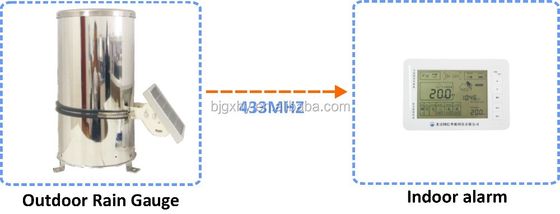

The outdoor Tipping bucket rain gauge

Displays daily,3-years record with total rainfall records and
allows remote observation and monitoring. Extremely accurate measurements! Increments of 0.5mm will allow you to know precisely how much rain is falling in your farm and around your house.

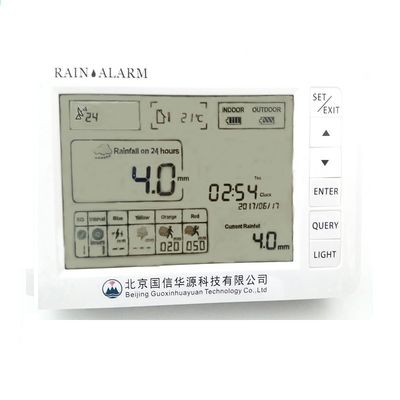

The idoor display

The  indoor display can show the temprature and rainfall of the rain guage .  Have the different lights to show the rainfall and when the raifall reach each 10mm will show the different lights .  Have the data storage which has built -in memory for sitorage of 60 recorded datas

High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 4
Appliction
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 5
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 6
Realated Products
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 7
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 8
Company Profile
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 9
EXS&CES
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 10
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 11
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 12
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 13
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 14
Produce &Package
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 15
High Accuracy Tipping Bucket Rain Gauge with Data Logger Feature 3.6 kg ±≤ 4% 16
Advantages& FAQ

Advantages:

Innovation: All Products have proprietary intellectual property rights
Brand: The main products are the No.1 in the flood monitoring equipment industry
Standard: The only one company who participates in making the national standard in the hydraulic engineering industry.
Market Share : Our main products have top 3 market share in China and have sold our products to more than 28 provinces, 500 counties.

FAQ

Q1. Can I have a sample order ?
 A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.


Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new one with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
