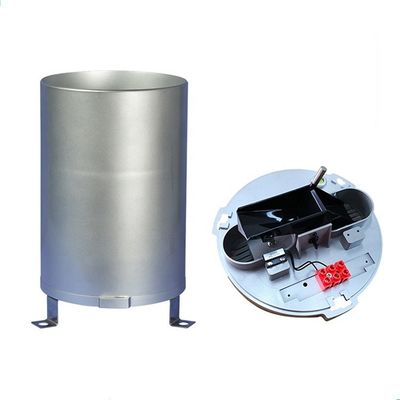

0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring

  • 0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring
  • 0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring
  • 0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring
  • 0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring
  • 0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring
  • 0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring
Place of Origin Beijing, China
Brand Name BGT
Model Number WS-601ABS5
Minimum Order Quantity 1 piece
Price $56.80/pieces 1-9 pieces
Packaging Details box

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1YEAR Customized Support OEM, ODM
Product Name Tipping Bucket Rain Gauge Inner Diameter 200mm(8 Inch)
Resolution 0.5mm(15.7cc) ; Optional 0.2mm Measuring Range ≤4mm/min
Accuracy ±≤ 4% Operating Temperature -10℃~50℃
Material PC And ABS Mixed Output Pulse; RS485 Optional
Leave a Message
Product Description
Please Attention
0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 0

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 1
Product Description

WS-601SS2 Tipping Bucket Rain Gauge ( rain sensor )

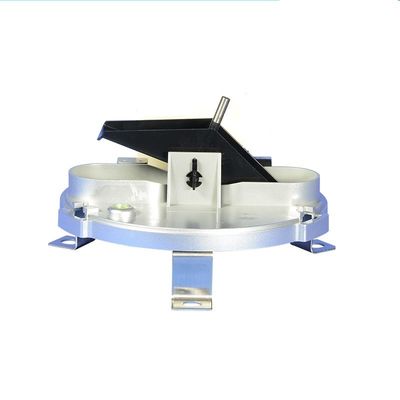

Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.

Features

WMO standard bucket's top diameter (200mm/8")

High Accuracy

Good stability

Low resistance

Mesh in the funnel preventing debris

Highly polished stainless steel construction

Horizontal Bubble in bottom


Application

Environmental monitoring

Water supply system

Hydrological monitoring

Natural disaster monitoring

Climate research

Weather monitoring stations

Smart Agriculture

0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 2

Calibration Certification

0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 3

                        CE


0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 4

             ISO9001


0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 5
0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 6
0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 7

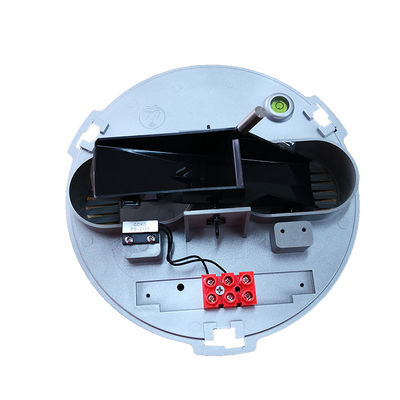

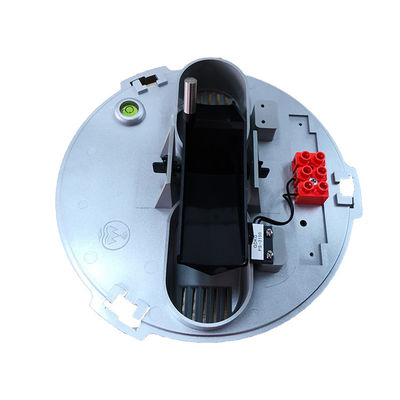

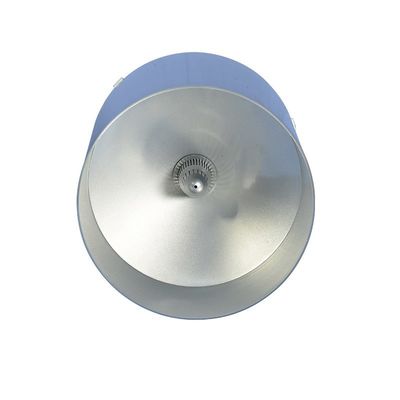

1.Rainfall collector

2.Filter

3.Enclosure assembly

4.Tipping bucket (ABS material)

5.Bull-eye level

6.Mounting foot

7.Base
Item no.
WS-601ABS5
Acute angle of cutting edge
40°~45°
Name
Tipping bucket rain gauge ( rain sensor )
inner diameter
Φ200+0.6mm
Single -tip
0.5mm
Measuring range
4mm/min
Accuracy
±≤ 4% (≤4mm/min);
Output
Pulse; RS485(optional)
Material
ABS + PC
Humidity
95%
Operating Temperature
-10℃~50℃
Level Control
Bull-eye level fitted on base
Mounting holes
Three mountings
Weight
2.1kgs
Height
283mm + 38mm(mounting foot height)
Related Products
0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 8

Wind sensor

0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 9

Tipping bucket rain gauge

0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 10

Solar radiation sensor

0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 11
0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 12

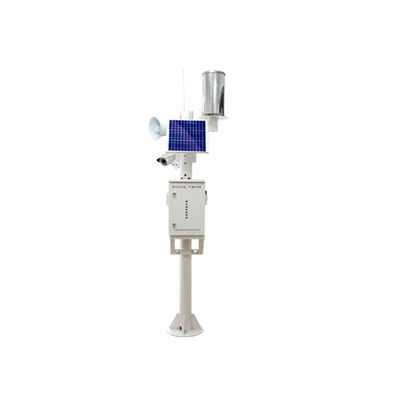

                                   Weather Station                                                                Soil Moisture Sensor

Our Factory
0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 13
0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 14
0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring 15
Advantages& FAQ

Why Choose Us


    ◆8 years in hydrology and meteorology wireless communication industry
  ◆Apply in more than 50 countries & areas
  ◆Certificated completed
  ◆Millions of terminals on-line
  ◆Strong R&D team, senior staff more than 60
  ◆Support OEM/ODM cooperation

FAQ


Q1: Are you factory or trading company?

A: Yes, We are factory. We design, develop and produce products all by ourselves.

Q2: Can I have a sample order?

A: Yes, sample order for testing is acceptable before bulk order.

Q3. Do you have any MOQ limit?

A: Low MOQ, any order quantity is welcome.

Q4: What about the lead time?

A:Sample order: 3-5working days; bulk order:15-20 working days

Q5: How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.

Q6: Is it OK to print my logo on the products?

A: Yes, we support OEM/ODM service.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: Can I visit your company before placing orders to you?

A: Yes, warmly welcome to visit our company.

Q9: How is the quality of your goods?

A: We make a commitment to sell excellent quality goods to our customers. Should there be any problems with our products, we can send free replacement in the next order upon picture and video confirmation.
