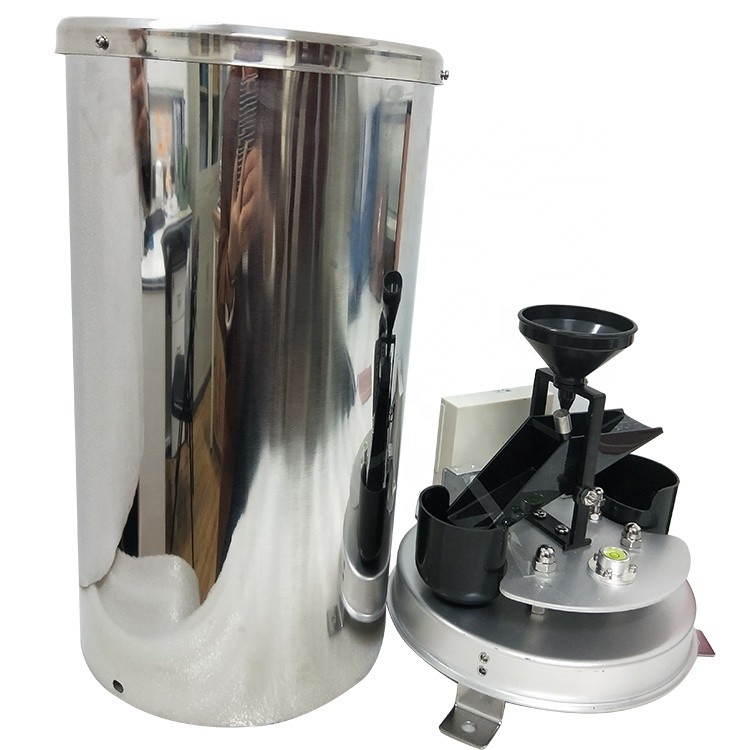

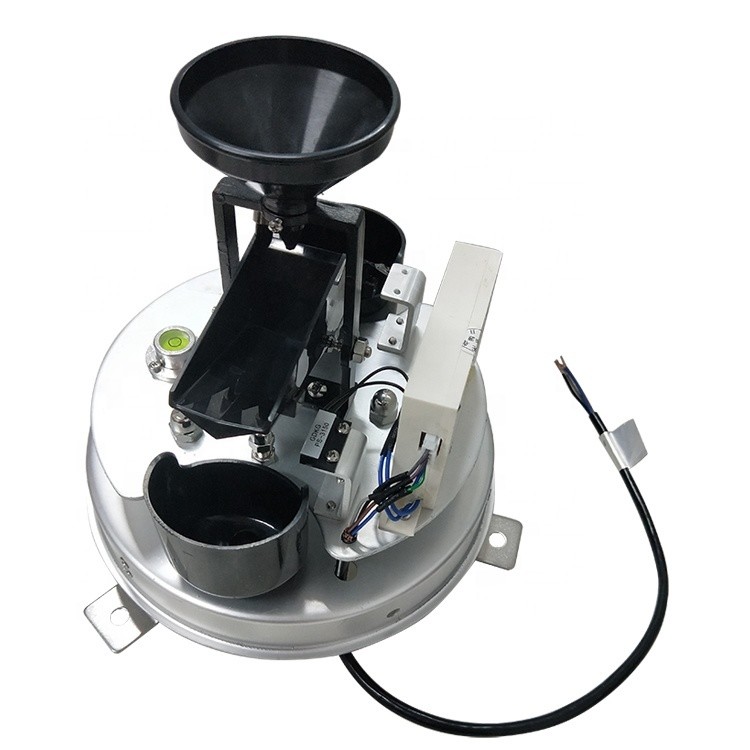

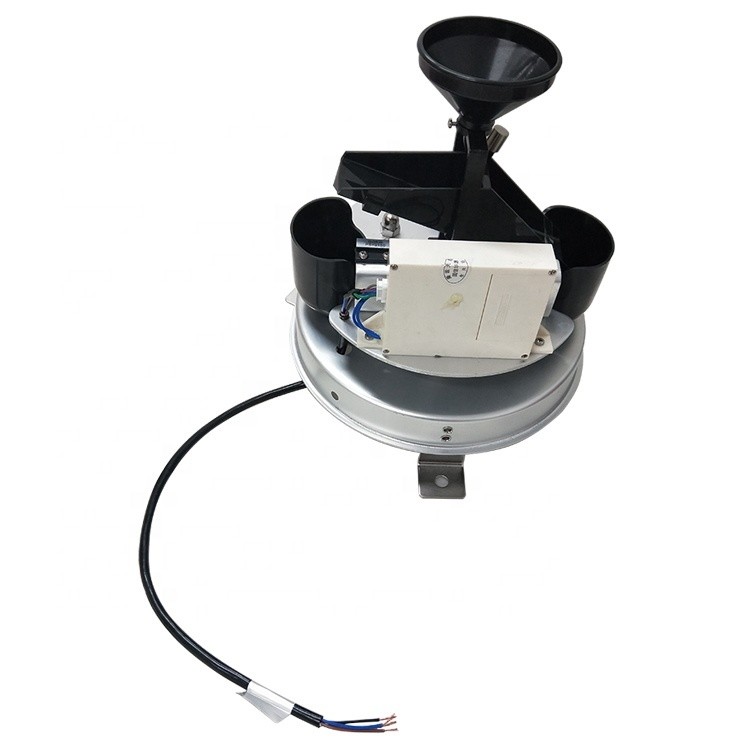

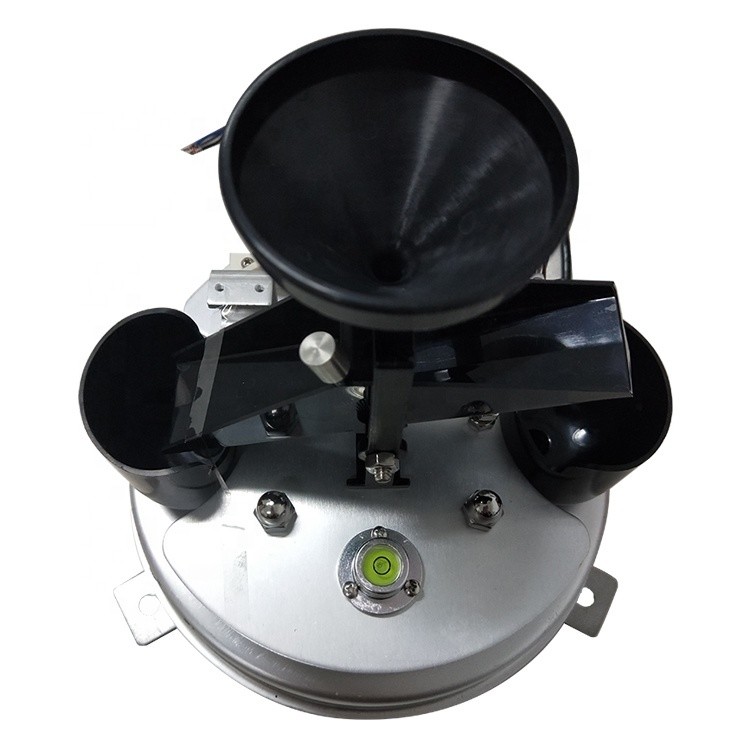

8 Inch Inner Diameter RS485 Tipping Bucket Rain Gauge for Precipitation Measurement

  • 8 Inch Inner Diameter RS485 Tipping Bucket Rain Gauge for Precipitation Measurement
  • 8 Inch Inner Diameter RS485 Tipping Bucket Rain Gauge for Precipitation Measurement
  • 8 Inch Inner Diameter RS485 Tipping Bucket Rain Gauge for Precipitation Measurement
  • 8 Inch Inner Diameter RS485 Tipping Bucket Rain Gauge for Precipitation Measurement
Place of Origin China
Brand Name BGT
Model Number WS-601SS5
Minimum Order Quantity 1 piece
Price $113.90/sets 1-9 sets
Packaging Details CARTON

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name RS485 Outdoor Precipitation Rain Gauge Wireless Resolution 0.5mm; Optional:0.1mm/0.2mm
Inner Diameter 200mm(8 Inch) Measuring Range ≤4mm/min
Accuracy ±≤ 2%(≤ 0.4mm/min); ±≤ 4% (≤4mm/min) Operating Temperature -10℃~50℃
Material Steel Stainless Weight 3.8kg
Output Method RS485
Leave a Message
Product Description
Please Attention
8 Inch Inner Diameter RS485 Tipping Bucket Rain Gauge for Precipitation Measurement 0

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
8 Inch Inner Diameter RS485 Tipping Bucket Rain Gauge for Precipitation Measurement 1

RS485 Outdoor precipitation rain gauge wireless

The Model WS-601-SS5 Tipping Bucket Rain Gauge (rain sensor) was designed for the National Weather Service to provide a reliable, low-cost tipping bucket rain sensor. It has been update and improved with the additionof an inner funnel to even the flow of the railfall into the gauge, providing better accuracy at higher rainfall rates. It simplicity of esign assures trouble-free opertaion , yet provide accurate rainfall measurement . And this kind of rain gauge also can provide you the data logger feature and temperature.

8 Inch Inner Diameter RS485 Tipping Bucket Rain Gauge for Precipitation Measurement 2

Features

WMO standard bucket's top diameter (200mm/8")

High Accuracy

Good stability

Low resistance

Mesh in the funnel preventing debris

Highly polished stainless steel construction

Horizontal Bubble in bottom


Application

Environmental monitoring

Water supply system

Hydrological monitoring

Natural disaster monitoring

Climate research

Weather monitoring stations

Smart Agriculture

8 Inch Inner Diameter RS485 Tipping Bucket Rain Gauge for Precipitation Measurement 3
8 Inch Inner Diameter RS485 Tipping Bucket Rain Gauge for Precipitation Measurement 4
Type
WS-601SS5
Acute angle of cutting edge
40°~45°
Inner diameter
200mm/8 inch  ±0.3%
Resolution
0.5mm
Measuring range
4mm/min
Accuracy
≤±4%
Material
304 Stainless steel
Working humidity
0%~95%RH
Operating Temperature
-10℃~50℃
Insect protection
Steel stainless Mesh
Output method
RS485
Discharge Control
Straight through flow mechanism
Level Control
Bull-eye level fitted on base
Base
Diecast aluminium
Mounting holes
Three mountings
Weight
3.6kg
Packing size
300*300*500(mm)
Appliction
8 Inch Inner Diameter RS485 Tipping Bucket Rain Gauge for Precipitation Measurement 5
8 Inch Inner Diameter RS485 Tipping Bucket Rain Gauge for Precipitation Measurement 6
8 Inch Inner Diameter RS485 Tipping Bucket Rain Gauge for Precipitation Measurement 8
