WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | WS-601SS5 |
| Minimum Order Quantity | 1 piece |
| Price | $92.70/sets 1-49 sets |
| Packaging Details | CARTON |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1year | Customized Support | OEM, ODM |
|---|---|---|---|
| Product Name | Tipping Bucket Rain Gauge | Inner Diameter | 200mm(8 Inch) |
| Resolution | 0.5mm; Optional:0.1mm/0.2mm | Measuring Range | ≤4mm/min |
| Accuracy | ±≤ 4% | Output | Pulse; RS485 (Optional) |
| Operating Temperature | -10℃~50℃ | Material | Steel Stainless |
| Weight | 3.5kg |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description

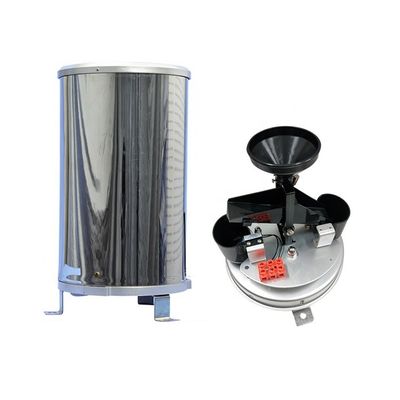

WS-601SS5 Tipping Bucket Rain Gauge ( rain sensor )
Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.
Features
WMO standard bucket's top diameter (200mm/8")
High Accuracy
Good stability
Low resistance

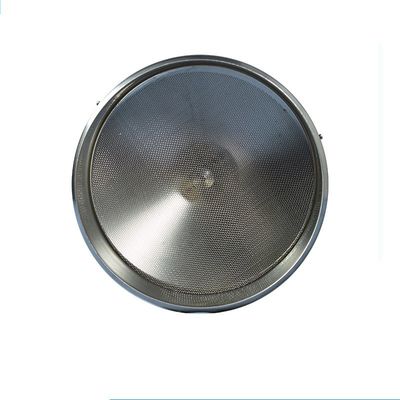

Mesh in the funnel preventing debris
Highly polished stainless steel construction
Horizontal Bubble in bottom
Application
Environmental monitoring
Water supply system
Hydrological monitoring
Natural disaster monitoring
Climate research
Weather monitoring stations
Smart Agriculture
Calibration Certification
CE
ISO9001

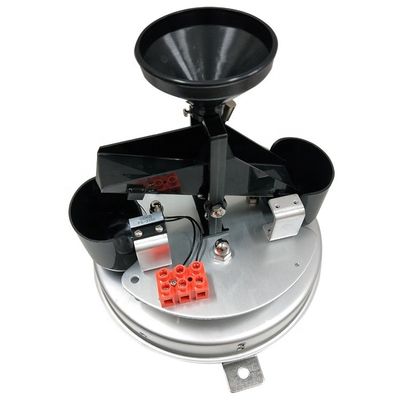

1.Enclosure assembly (Body)
2.Funnel
3.Bracket
4.Tips

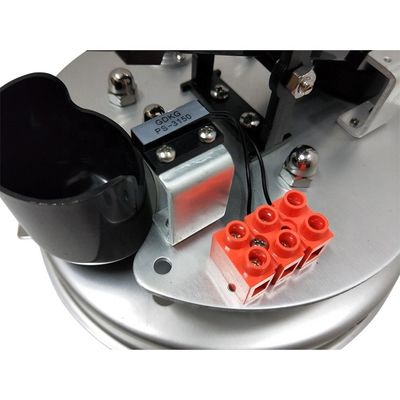

5.Reed switch
6. Discharge holder
7. Mounting foot

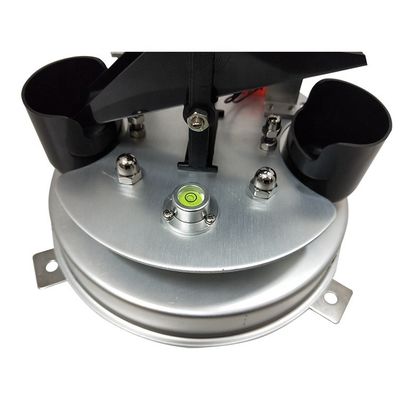

8. Bull-eye Level
Type | WS-601SS5 |
Material | Steel stainless(Boday) |
Tipping Bucket | Black ABS (plastic) |
Measuring range | 0~8mm/min |
Accuracy | ±≤ 3%(≤ 250mm/hr); ±≤ 4% (≤300mm/hr); |
Resolution | 0.5mm (15.7cc) |
Inner diameter | 200mm/8inch ±0.3% |
Acute angle of cutting edge | 40~45° |
Insect protection | Steel stainless Mesh |
Output | Standard Pulse(Reed switch, 2pulse/mm); RS485 optional (RS485 Price will be higher) |
Power supply | Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V |
Level control | Bulls eye level adhered |
Base | Diecast aluminium |
Mounting holes | Three mountings |
Discharge control | Straight through flow mechanism |
Working temperature | -20～80℃ |
Working humidity | 0%~95%RH |
Weight | 3.3Kg |
Packing Size | 31*31*46cm |
Note:
The price is for standard pulse output, if you need RS 485 output , please ask us.

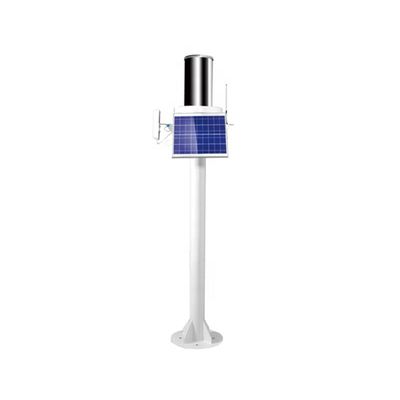

Appliction
Related Products
Wind sensor
Atomospheric sensor
Solar radiation sensor
Weather Station Soil Moisture Sensor
Our Factory
Advantages& FAQ
Why Choose Us
◆10 years in hydrology and meteorology wireless communication industry
◆Apply in more than 70 countries & areas
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation
FAQ
Q1: Are you factory or trading company?
A: Yes, We are factory. We design, develop and produce products all by ourselves.
Q2: Can I have a sample order?
A: Yes, sample order for testing is acceptable before bulk order.
Q3. Do you have any MOQ limit?
A: Low MOQ, any order quantity is welcome.
Q4: What about the lead time?
A:Sample order: 3-5working days; bulk order:15-20 working days
Q5: How do you ship the goods?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q6: Is it OK to print my logo on the products?
A: Yes, we support OEM/ODM service.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: Can I visit your company before placing orders to you?
A: Yes, warmly welcome to visit our company.
Q9: How is the quality of your goods?
A: We make a commitment to sell excellent quality goods to our customers. Should there be any problems with our products, we can send free replacement in the next order upon picture and video confirmation.
