High accuracy garden optical rain sensor with operating temperature range -40C 60C

  • High accuracy garden optical rain sensor with operating temperature range -40C 60C
  • High accuracy garden optical rain sensor with operating temperature range -40C 60C
  • High accuracy garden optical rain sensor with operating temperature range -40C 60C
  • High accuracy garden optical rain sensor with operating temperature range -40C 60C
  • High accuracy garden optical rain sensor with operating temperature range -40C 60C
  • High accuracy garden optical rain sensor with operating temperature range -40C 60C
Place of Origin Beijing, China
Brand Name BGT
Model Number BGT-RS-100
Minimum Order Quantity 1 piece
Price $99.22/pieces
Packaging Details Carton

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Rain Sensor Output Relay/pulse Output
Theory Optical Sensor Product Name High Accuracy Lora Garden Optical Rain Sensor
Key Word Optical Rain Sensor Input Voltage 9V ~ 30VDC
Current Drain 14mA@12VDC Accuracy ±15%
Unit 0.2mm/pulse UART Parameter 115200 8N1
Max Instantaneous 0.4mm/s Operating Temperature Range -40℃ ~ 60℃
Leave a Message
Product Description
Please Attention
High accuracy garden optical rain sensor with operating temperature range -40C 60C 0

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
High accuracy garden optical rain sensor with operating temperature range -40C 60C 1
Product Description
High accuracy garden optical rain sensor with operating temperature range -40C 60C 2
High accuracy garden optical rain sensor with operating temperature range -40C 60C 3

High accuracy lora garden optical rain sensor


BGT-RS-100 Optical rain measuring gauge sensor

The Optical Rain Sensor senses water hitting its outside surface using beams of infrared light. It uses the same sensing principle used in millions of automotive rain sensing windshield wiper controls.
The Sensor is optical-- not mechanical, chemical, or conductive. Consequently, it is far more rugged, sensitive and reliable than any other technology. And the sensor is extremely sensitive, and virtually immune to false trips.In addition, it is completely unaffected by jostling and motion. There are no exposed conductors to corrode, and no openings for bugs to crawl into. And there is no place for leaves or other debris to collect.O


Note:Optical Rain Sensor is just a rainfall sensor,if you need Lora Module,you need to purchase it extra,you can contact us directly.suring gauge sensor

High accuracy garden optical rain sensor with operating temperature range -40C 60C 4
Input Voltage
9V ~ 30VDC
Current Drain
14mA@12VDC
Output
Relay closure/Pulse
Max load 1A,24VDC/5V High Pulse
Operating Temperature Range
-40℃ ~ 60℃
Accuracy
±15%
Unit
0.2mm/pulse
Max instantaneous
0.4mm/s
UART parameter
115200 8N1

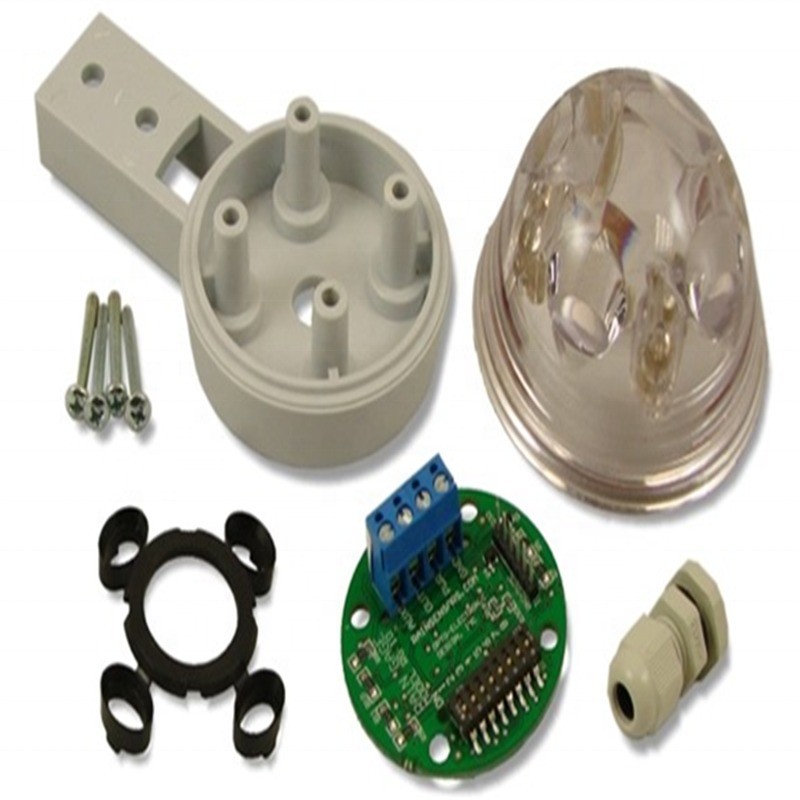

Products details
High accuracy garden optical rain sensor with operating temperature range -40C 60C 5
High accuracy garden optical rain sensor with operating temperature range -40C 60C 6

OPTICAL RAIN GAUGE CONNECTIONS

High accuracy garden optical rain sensor with operating temperature range -40C 60C 7
High accuracy garden optical rain sensor with operating temperature range -40C 60C 8

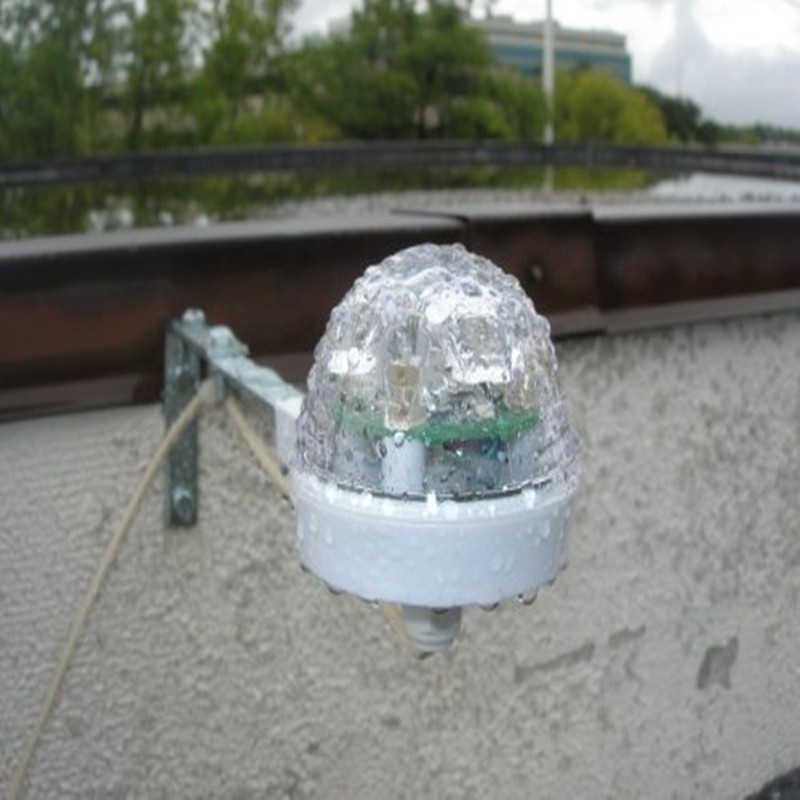

Application
High accuracy garden optical rain sensor with operating temperature range -40C 60C 9
High accuracy garden optical rain sensor with operating temperature range -40C 60C 10
Company Profile

   Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company with R&D, production, marketing, project implementation and after sales. We are focus on providing professional hydrology and meteorology monitoring device and technical service, and developed a series of flood early warning system products by ourselves, which owing more than 50 patents and 60 software copyrights. Then our product line is including monitoring products, communication products, early warning products and cloud platform. However, our products have been sold to more than 30 countries, such as Australia, Japan, Sri Lanka and so on. Especially our tipping bucket rain gauge is doing well in foreign countries. Meanwhile, our products are covered all provinces in China and we have Guangxi/Guangdong/Hunan/Hubei/Qinhai branches.

     We are devoted to solving the flood disaster problems for human beings and becoming one of the famous brands in the flood early-warning industry. Welcome to contact us.
Optical rain measuring gauge sensor
High accuracy garden optical rain sensor with operating temperature range -40C 60C 11
High accuracy garden optical rain sensor with operating temperature range -40C 60C 12
High accuracy garden optical rain sensor with operating temperature range -40C 60C 13
High accuracy garden optical rain sensor with operating temperature range -40C 60C 14
High accuracy garden optical rain sensor with operating temperature range -40C 60C 15
High accuracy garden optical rain sensor with operating temperature range -40C 60C 16
Advantages& FAQ

Why Choose Us


    ◆8 years in hydrology and meteorology wireless communication industry
  ◆Apply in more than 50 countries & areas
  ◆Certificated completed
  ◆Millions of terminals on-line
  ◆Strong R&D team, senior staff more than 60
  ◆Support OEM/ODM cooperation

FAQ


Q1: Are you factory or trading company?

A: Yes, We are factory. We design, develop and produce products all by ourselves.

Q2: Can I have a sample order?

A: Yes, sample order for testing is acceptable before bulk order.

Q3. Do you have any MOQ limit?

A: Low MOQ, any order quantity is welcome.

Q4: What about the lead time?

A:Sample order: 3-5working days; bulk order:15-20 working days

Q5: How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.

Q6: Is it OK to print my logo on the products?

A: Yes, we support OEM/ODM service.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: Can I visit your company before placing orders to you?

A: Yes, warmly welcome to visit our company.

Q9: How is the quality of your goods?

A: We make a commitment to sell excellent quality goods to our customers. Should there be any problems with our products, we can send free replacement in the next order upon picture and video confirmation.
