0.1mm Resolution Pluviometro Rain Instrumental Sensor for Meteorological Applications
| Place of Origin | Beijing, China, CN;BEI |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-SS1 |
| Minimum Order Quantity | 1 piece |
| Price | $328.00/pieces 1-9 pieces |
| Packaging Details | Box |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 0.1mm Pluviometro Rain Instrumental Sensor Tipping Bucket Prices | Resolution | 0.1mm |
|---|---|---|---|
| Inner Diameter | 200mm(8 Inch) ±0.3% | Measuring Range | 0mm/min~8mm/min |
| Accuracy | ±≤ 2%(≤ 50mm/hr); ±≤ 4% (≤240mm/hr); | Operating Temperature | -10℃~50℃ |
| Material | Stainless Steel 304 & Brass & Plastic | Output | Pulse |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
0.1mm Pluviometro rain instrumental sensor tipping bucket prices

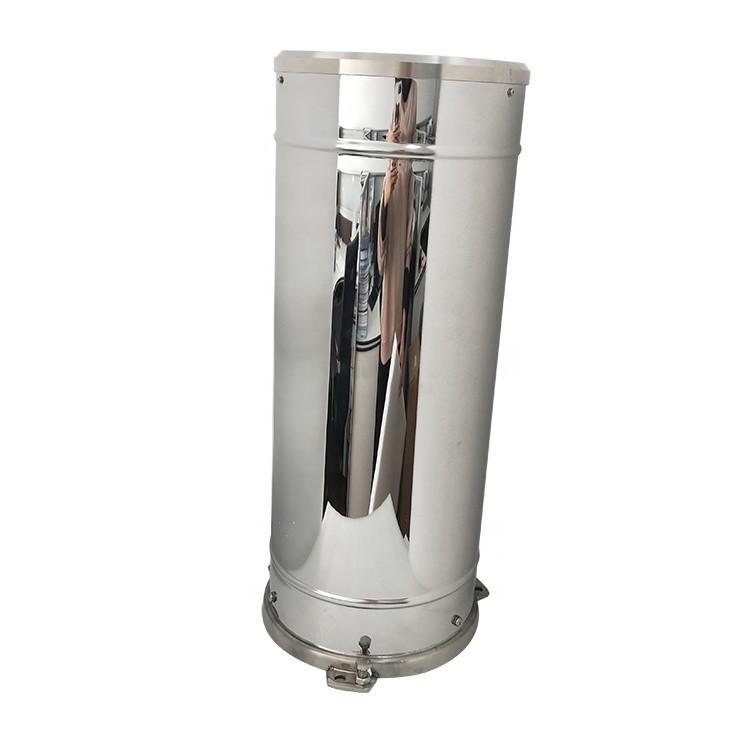

BGT-SS1Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.
Features
WMO standard bucket's top diameter (200mm/8")
High Accuracy
Good stability
Low resistance

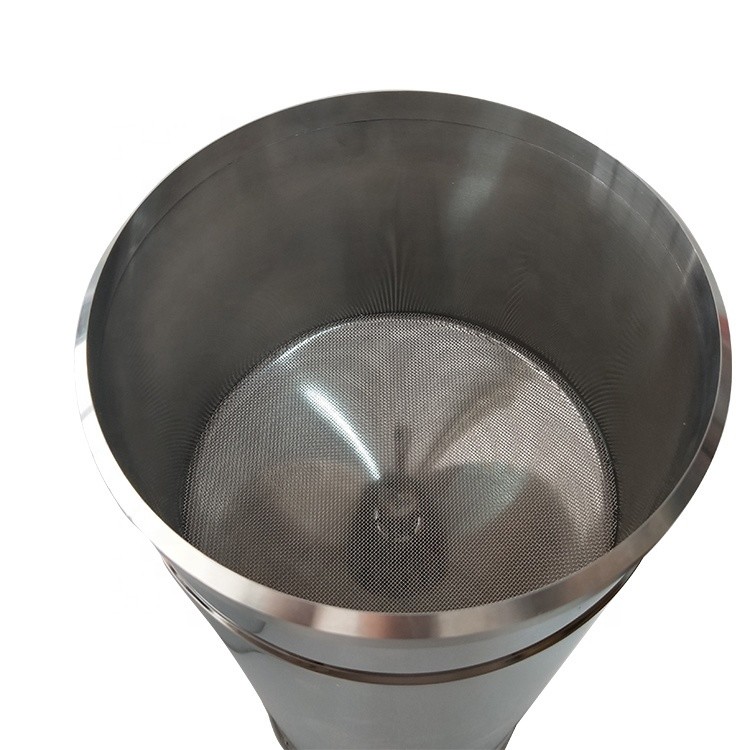

Mesh in the funnel preventing debris
Highly polished stainless steel construction
Horizontal Bubble in bottom
Application
Environmental monitoring
Water supply system
Hydrological monitoring
Natural disaster monitoring
Climate research
Weather monitoring stations
Smart Agriculture
Products Parameters

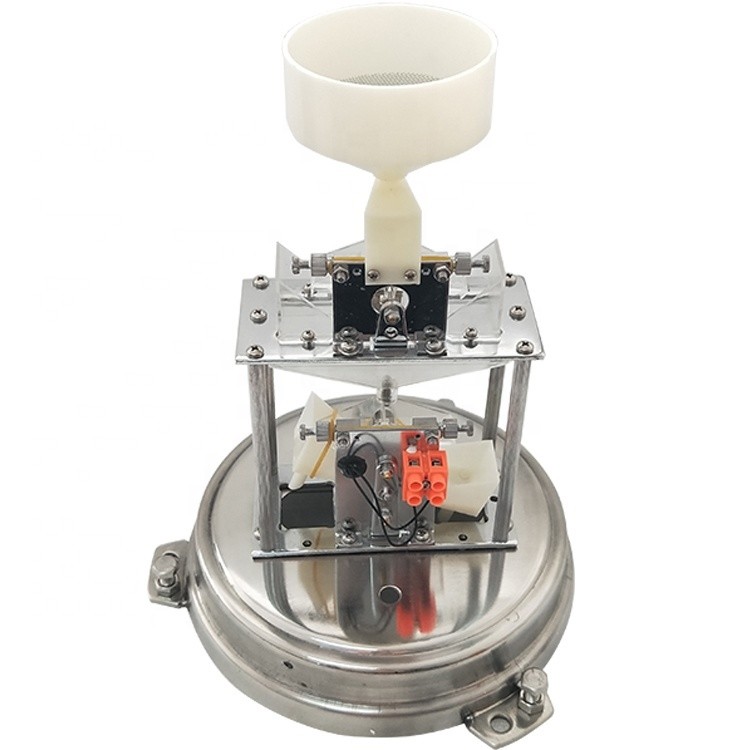

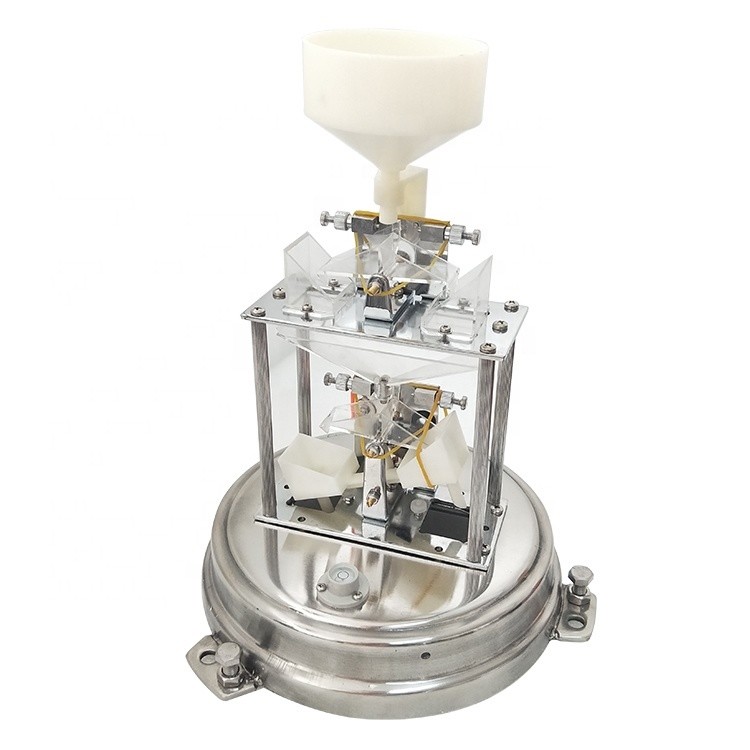

1. Collector 2. Mesh Enclosure
3. Funnel 4. Upper tipping bucket
5. Gathering funnel 6. Counting tipping bucket
7. Bull-eye level 8. Adjusting screw hex
9. Chassis 10. Reed switch
11. Red and black cable terminal 12. Measuring tipping bucket
13. Capacity adjusting screw 14. Locating screw
15. Cleaning and removing nuts
Appliction
Company Profile
Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer. We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.
0.1mm Pluviometro rain instrumental sensor tipping bucket prices
EXS&CES
Produce &Package
Advantages& FAQ
Why Choose Us
◆8 years in hydrology and meteorology wireless communication industry
◆Apply in more than 50 countries & areas
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation
FAQ
Q1: Are you factory or trading company?
A: Yes, We are factory. We design, develop and produce products all by ourselves.
Q2: Can I have a sample order?
A: Yes, sample order for testing is acceptable before bulk order.
Q3. Do you have any MOQ limit?
A: Low MOQ, any order quantity is welcome.
Q4: What about the lead time?
A:Sample order: 3-5working days; bulk order:15-20 working days
Q5: How do you ship the goods?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q6: Is it OK to print my logo on the products?
A: Yes, we support OEM/ODM service.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: Can I visit your company before placing orders to you?
A: Yes, warmly welcome to visit our company.
Q9: How is the quality of your goods?
A: We make a commitment to sell excellent quality goods to our customers. Should there be any problems with our products, we can send free replacement in the next order upon picture and video confirmation.
