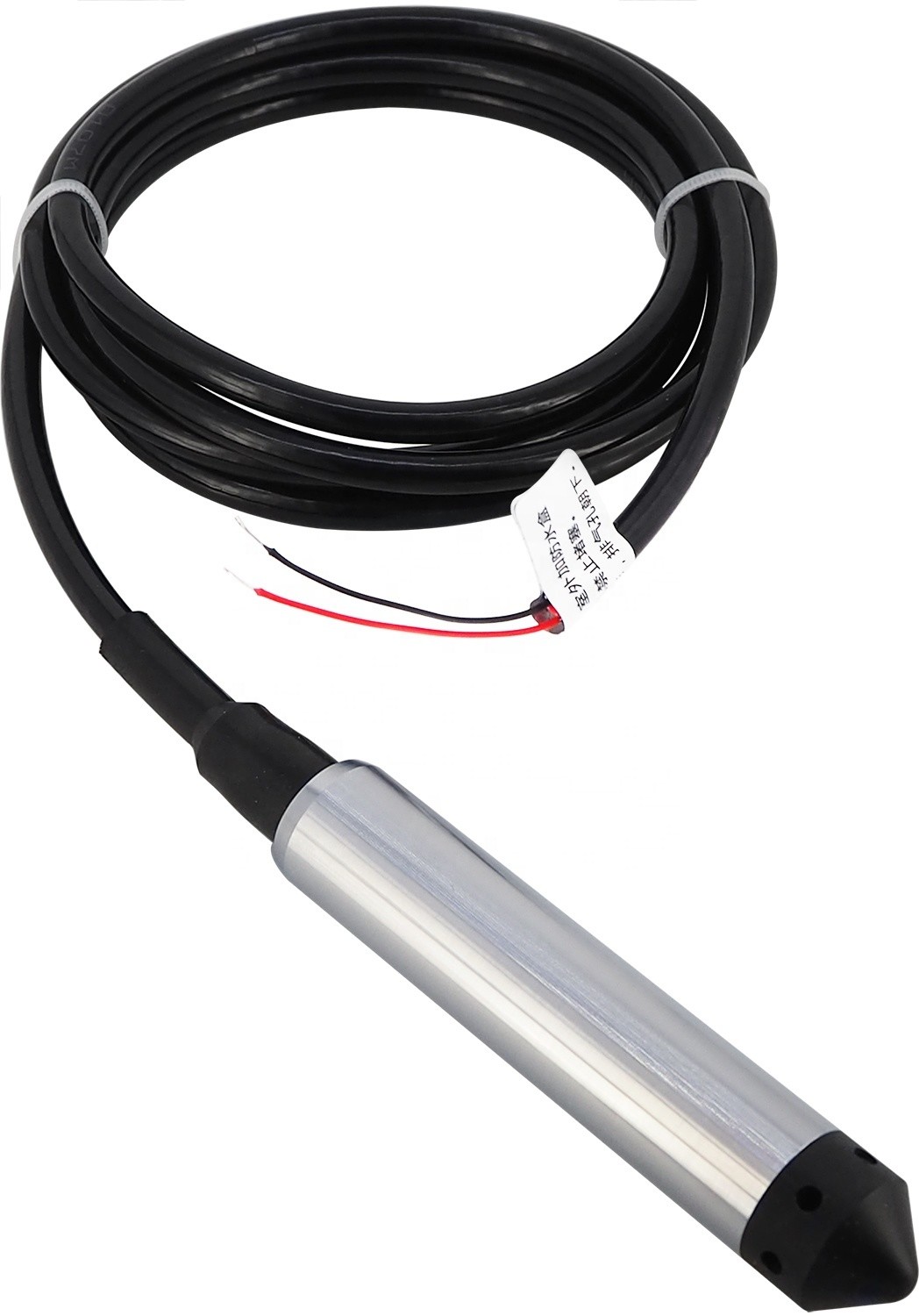

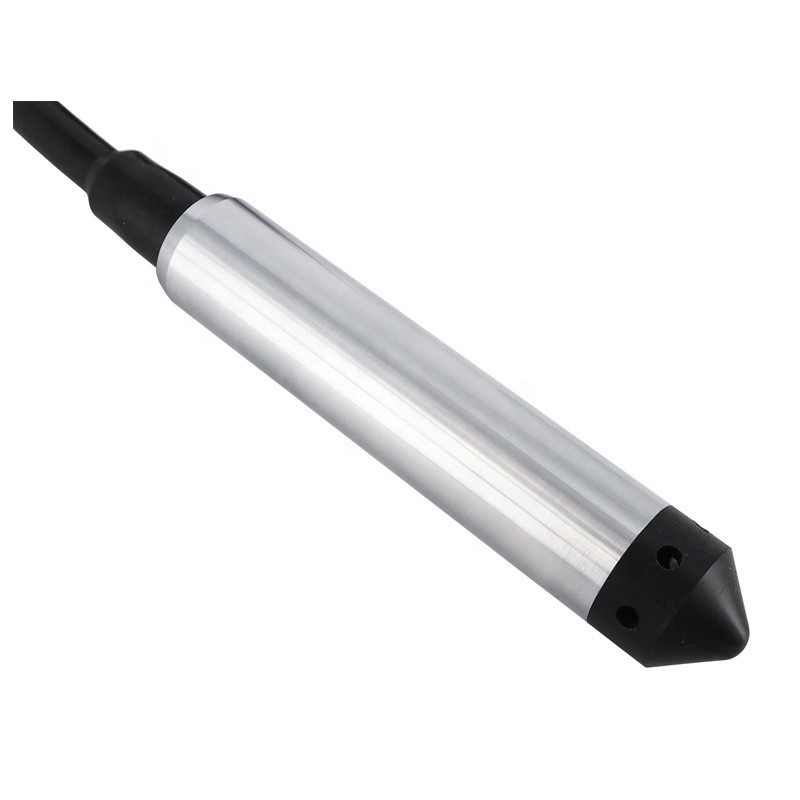

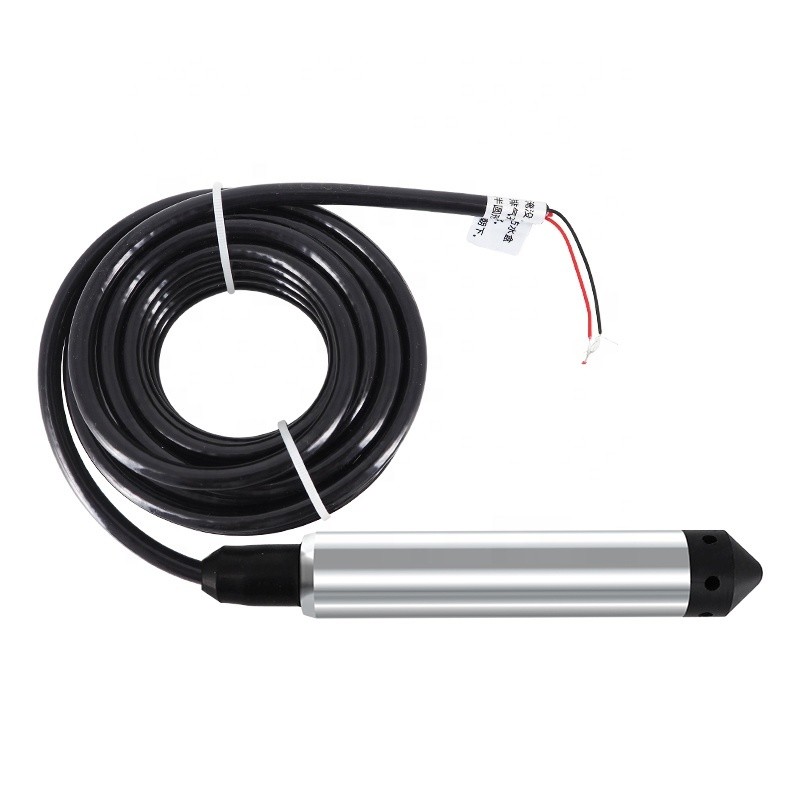

316L Stainless Steel Submersible Water Pressure Level Transmitter 24VDC/12VDC/5VDC
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Certification | CE |
| Model Number | BGT-GL801 |
| Minimum Order Quantity | 1 piece |
| Price | $29.97/pieces 2-24 pieces |
| Packaging Details | Box |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Customized Support | OEM, ODM | Product Name | Submersible Water Pressure Tank Level Sensor |
|---|---|---|---|
| Output Signal | 4-20mA | Accuracy | 0.5% FS (can Customize 0.2% FS) |
| Power Supply | 24VDC/12VDC/5VDC | Diaphragm, Shell Material | 316L Stainless Steel |
| Cable Length | 5m (optional) | Measuring Range | 0-5m |
| Protection Level | IP68 | Operating Temperature | -20℃-70℃ |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Submersible water pressure tank level sensor
BGT-GL801 pressure water level transmitter uses high performance inductive chip, with advanced circuit processing and temperature compensation technology, to convert the pressure change into linear current or voltage signal. The product is compact in size and easy to install. The stainless steel shell is used for isolation and anticorrosion. It is suitable for measuring gas, liquid and other media compatible with the contact materials.
The product is widely used in water plant, oil refinery, sewage treatment plant, building materials, light industry, machinery and other industrial fields, to achieve the measurement of liquid pressure.
Product Parameters
Product Name | Submersible water pressure tank level sensor |
Type | BGT-GL801 |
Output signal | 4-20mA;(Optional: RS485) |
Measuring range | 0-5m; |
Accuracy | 0.5% FS (can customize 0.2% FS) |
Power supply | 24VDC（Default, 12VDC/5VDC for optional) |
Diaphragm, shell material | 316L Stainless steel |
Cable length | 5m (optional) |
Protection level | IP68 |
Operating temperature | -20℃-70℃ |
For other measuring range ( max0-200M), please ask us for price.
The price is 4-20mA, 24VDC power , measuring range 0-5M, cable lenth 5M. For other requirement, price will be different
Products Details
Wiring method
For example:
Output 4-20mA (Two-wire)： Red: VCC Black: GND Calculation formula： H=(Measured current value - 4)/16*Range H-water level,”m”; Range: if measuring range is 10m, then range=10 )
