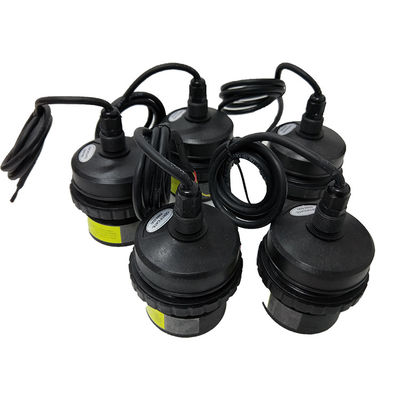

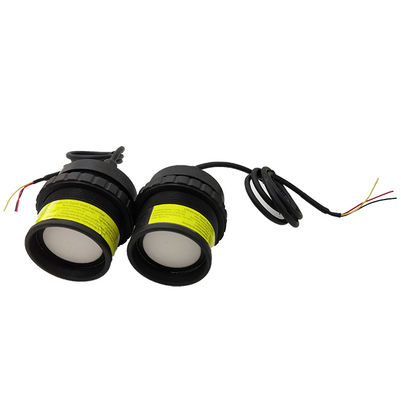

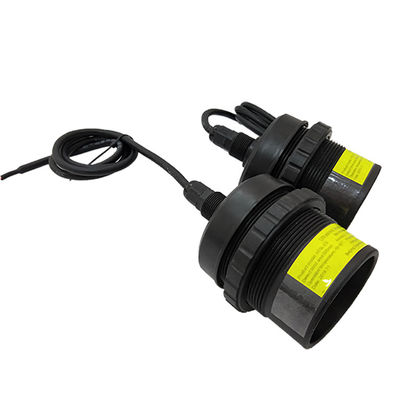

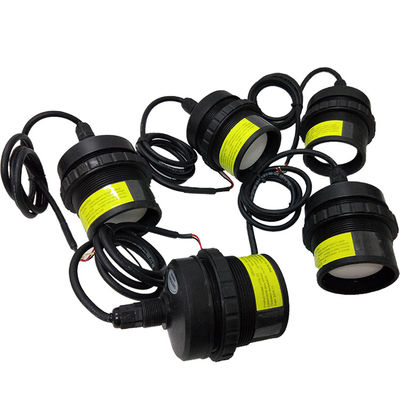

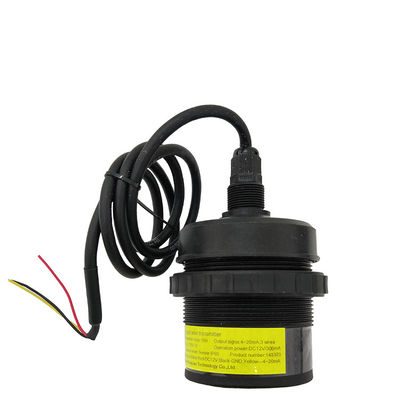

Industrial 05m15m Ultrasonic Level Sensor with 500m Detection Range and 4-20mA Output
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | HSTL-ES |
| Minimum Order Quantity | 1 piece |
| Price | $78.00 - $200.00/pieces |
| Packaging Details | Box |
| Supply Ability | 2000 Piece/Pieces per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Low Cost Non-Contact 05m15m 500m 4-20mA Ultrasonic Level Sensor | Max Measure Range | 10m(clean Environment, Stable And Smooth Objective Surface) |
|---|---|---|---|
| Output Signal | 4-20mA;0-5V;RS485/RS232 | Operation Temperature | -10~50℃ |
| Operation Power | DC24V/300mA,or DC12V/300mA | Detect Accuracy | ±0.5%F.S (at 25 ℃, Two Times Outside The Blind Area) |
| Protection Level | IP65 | Port | Tianjin |
Product Description
What We Sell
Low Cost Non-Contact 05m15m 500m 4-20mA Ultrasonic Level Sensor
Product Description
Low Cost Non-Contact 05m15m 500m 4-20mA Ultrasonic Level Sensor
This type sensor is used for non-contact level sensing of highly viscous liquids, as well as bulk solids. They are also widely used in water treatment applications for pump control and openchannel flow measurement. The sensors emit high frequency (20 kHz to 200 kHz) acoustic waves that are reflected back to and detected by the emitting transducer.
FEATURES
* Range of up to 60 meters
* Level or material measurement
* Good stability
* Response speed is adjustable
* Easy Installation
APPLICATION
* River water level measurement
* Lake water level measurement
* Shallow water level measurement
* Hydrological monitoring
* Environmental protection
Range | 0 ~ 10m（0-500m optional） | ||
Detect blind area | ≤500mm(max measure range including blind area) | ||
Detect accuracy | ±0.5%F.S (at 25 ℃, two times outside the blind area, with smooth object surface) | ||
Current output | 1) Current: 0-20mA or 4-20mA; 2)Voltage: 0-5V or 1-5V 3)Digital: RS485/RS232 | ||
Output Resolution | 0.03% of the actual range | ||
Operation power | DC24V/300mA,or DC12V/300mA | ||
IP grade | IP 65 | ||
Installation | Flange or bracket | ||
Cable length | 0.5M | ||
Appliction
Company Profile
Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer. We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.
Plastic weighing type tipping bucket 0.2mm rain gauge hotting
Our Factory

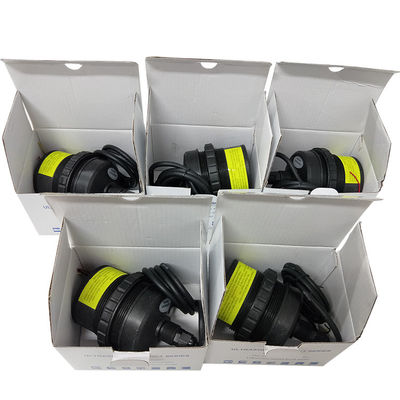

Produce &Package
