Advanced 0.2mm Resolution Siphon Type Rain Gauge with Stainless Steel Tipping Bucket
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | WS-601SS |
| Minimum Order Quantity | 1 piece |
| Price | $228.60/pieces 2-9 pieces |
| Packaging Details | Cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Siphon Type 0.2mm Full Stainless Steel Tipping Bucket Rain Gauge | Inner Diameter | 200mm(8 Inch) |
|---|---|---|---|
| Resolution | 0.2mm | Measuring Range | ≤4mm/min |
| Bucket | Stainless Steel | Accuracy | ±≤ 1% (60mm/hr) |
| Output | Reed Switch, 5 Purlse/mm | Material | Stainless Steel |
| Operating Temperature | -10℃~50℃ | Weight | 4.2kg |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description
Hot sale meteorological pluviometer precipitation gauge siphon type 0.2mm full stainless steel tipping bucket rain gauge
WS-601SS Tipping Bucket Rain Gauge with Siphon function is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.
Features
WMO standard bucket's top diameter (200mm/8")
High Accuracy
Good stability
Low resistance

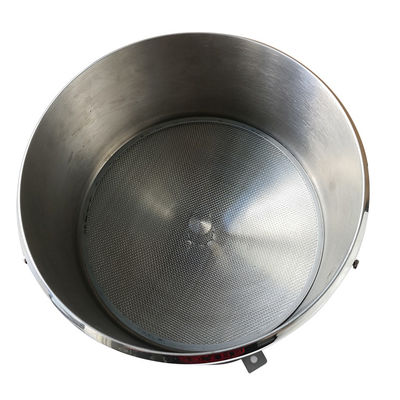

Mesh in the funnel preventing debris
Highly polished stainless steel construction
Horizontal Bubble in bottom
Application
Environmental monitoring
Water supply system
Hydrological monitoring
Natural disaster monitoring
Climate research
Weather monitoring stations
Smart Agriculture

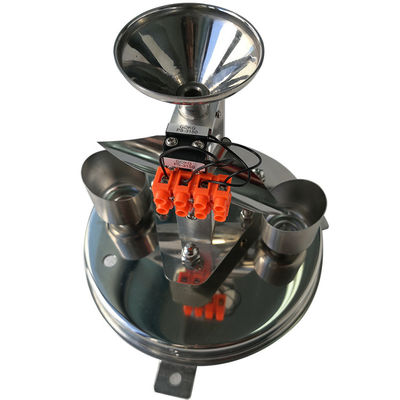

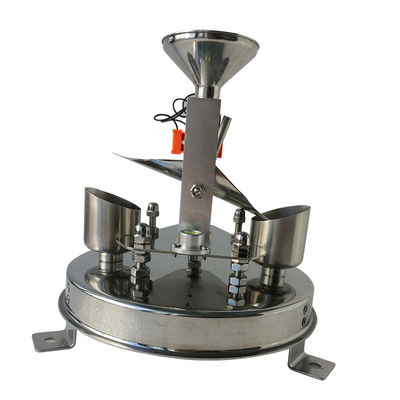

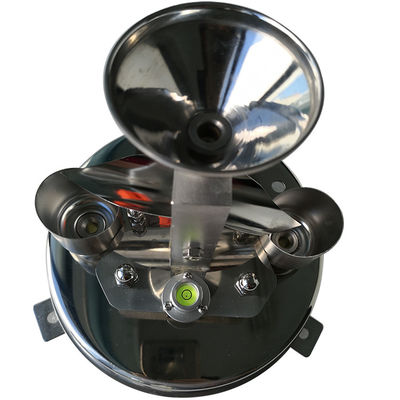

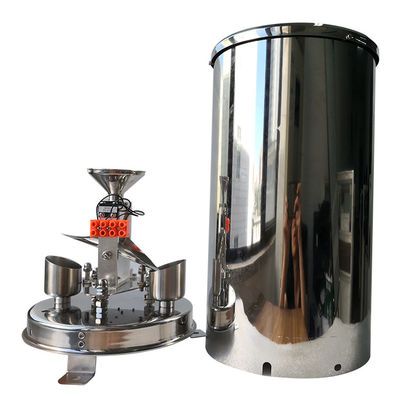

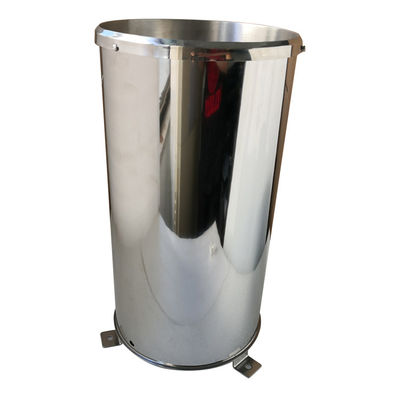

1.Stainless Steel Enclosure assembly (Body)
2.Stainless Steel Funnel
2.Stainless Steel Funnel
3.Aluminum Bracket
4.Stainless Steel Tips
4.Stainless Steel Tips
5.Double Reed switch & Cable terminal.
6. Stainless Steel Discharge holder
7. Stainless Steel Mounting foot
8. Bull-eye Level
Acute angle of cutting edge | 40°~45° |
inner diameter | Φ200+0.6mm |
0.2gle -tip | 0.2mm |
Measuring range | ≤4mm/min, Workable ≤8mm/min |
Accuracy | ±≤ 2%(≤ 30mm/hr); ±≤ 3% (≤250mm/hr); |
Tips | Stainless Steel Tips |
Material | SS304 |
Output | Pulse |
Humidity | 95% |
Operating Temperature | -10℃~50℃ |
Discharge Control | Drain out straightly by flow mechanism |
Level Control | Bull-eye level fitted on base |
Mounting holes | Three mountings |
Weight | 4.2kg |
Height | 330mm |
Packing size | 310*310*470(MM) |
Calibration Certifiction
Approved by National Center For Meteorological Metrology, China ( Lab under China Meteorological Administration.) In May 2017, WMO approved the second operational center for Asia, hosted by the China Meteorological Administration.
