StreamPro ADCP Acoustic Doppler Water Flow Profiler Meter Streamline Your Operations
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Tekhydro |
| Model Number | StreamPro ADCP |
| Minimum Order Quantity | 1 piece |
| Price | $33,000.00 - $35,000.00/sets |
| Packaging Details | Cartons |
| Supply Ability | 2000 Piece/Pieces per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Micro-transducer | Diameter 3.5cm, Length 12cm | Electronic Unit | 20cm Long, 10cm Wide, 15cm Thick |
|---|---|---|---|
| Small Floating Body | 71cm Long, 43cm Wide, 10cm Thick | Wireless Communication | Bluetooth (BlueTooth) |
| Pocket PC Operating Software | StreamPro | Laptop Operating Software | WinRiver II |
| Dimensions Electronic Unit | 15x 20x 10cm | Transducer | 3.5cm( D)x 15cm( L) |
| Float | 44x 70x 11cm | Port | Tianjin |
Product Description
StreamPro ADCP Acoustic Doppler Flow Profiler

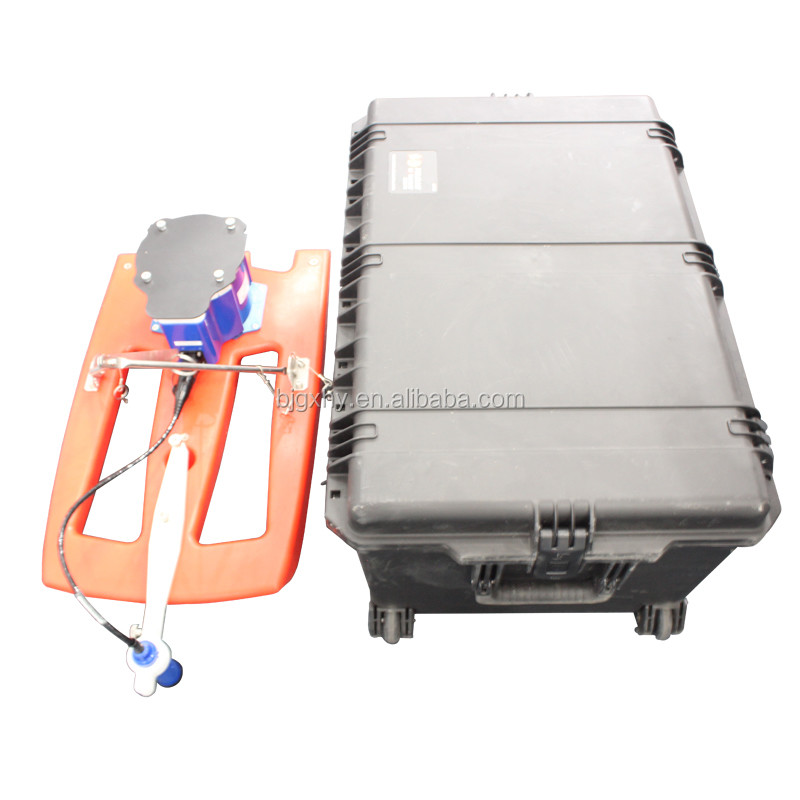

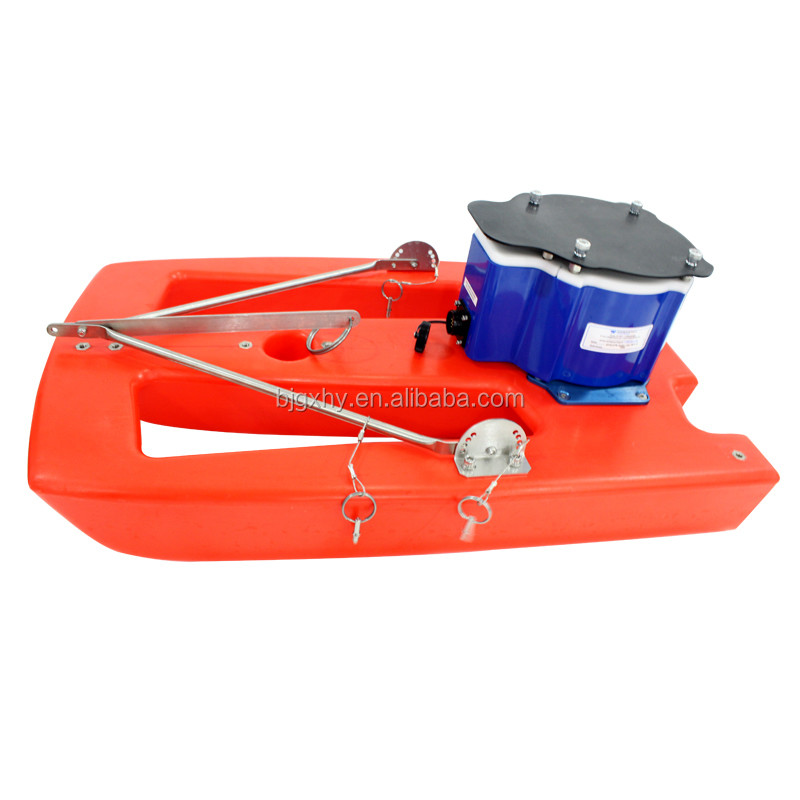

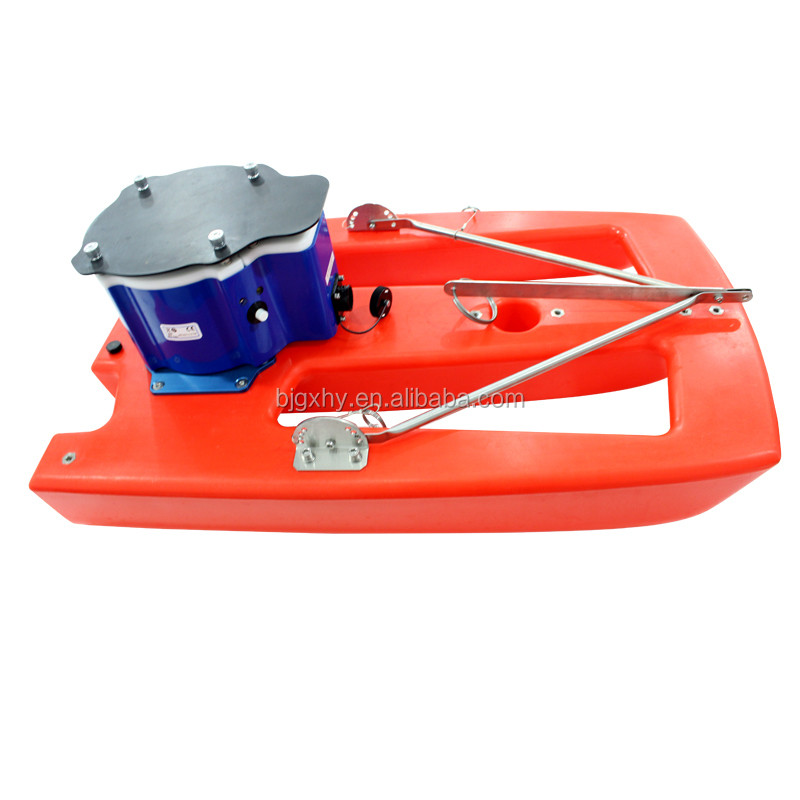

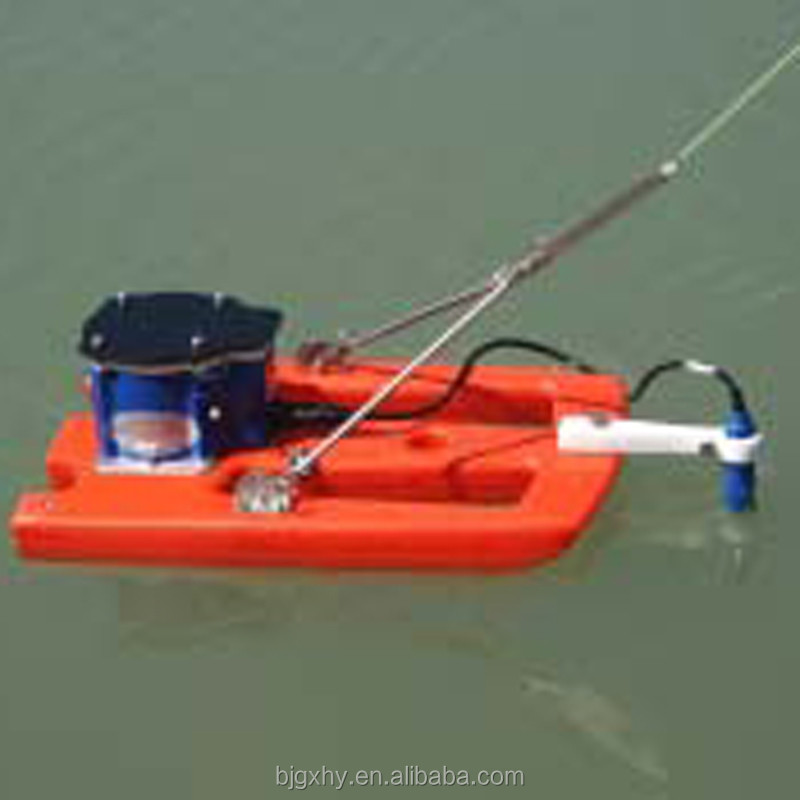

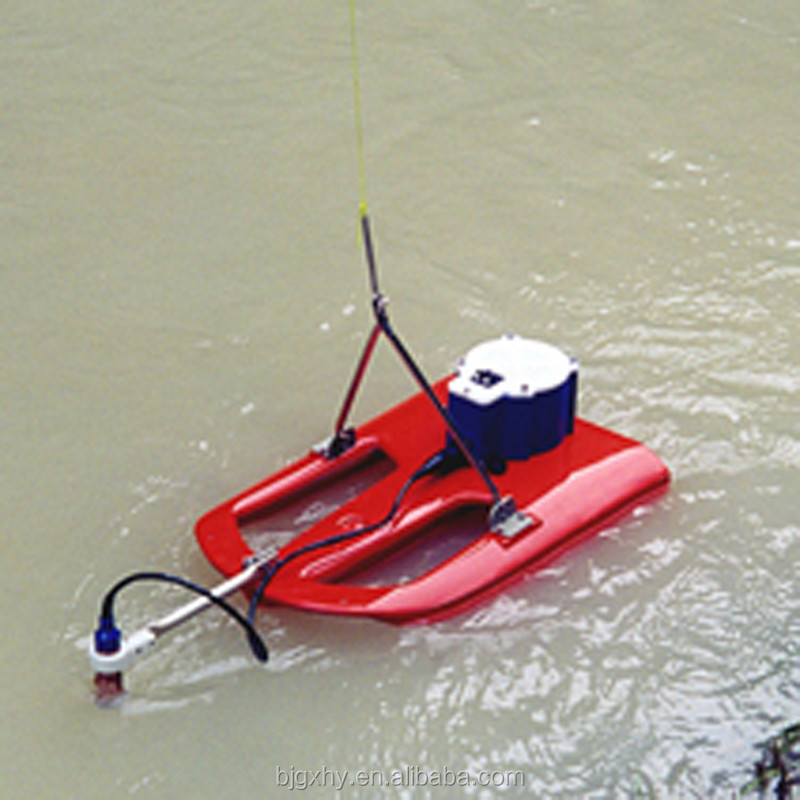

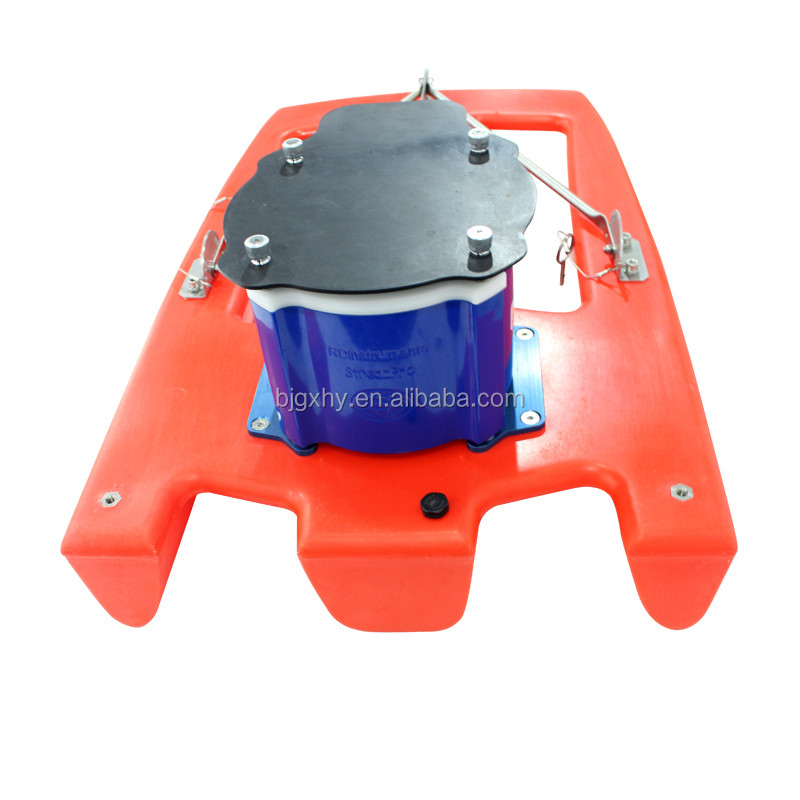

The StreamPro ADCP is designed to measure real-time velocity and discharge measurements in shallow streams. The StreamPro system consists of a transducer, electronics housing, float, and software.
Detailed Images
1. Velocity Profiling Specifications
* # Cells: 1-20
* Min. Cell size (cm): 2
* Max. cell size (cm): 10
* Max. Range (m): 2
* 1st Cell start (cm): 3 to 50
Accuracy
* (cell = 1/2 max.): ±1.0%, ± 0.2cm/s
* Resolution (mm/s): 1
* Velocity Range (m/s): ±2
2. Transducer Specifications
* Frequency: 2.0 MHz
* Geometry: 4 beams, ±20ºbeam angle
* Beam Width: 3.0 degrees
* Material: Polyurethane
3. Standard Sensors Specifications
* Range: -4º to 40ºC
* Accuracy: ±0.5ºC
* Resolution: 0.01º
* Temperature: Thermistor in metallic housing in direct contact with the water
4. Communications Specifications
* Bluetooth Wireless
* Bad Rates: 115,200 BPS
NOTE: FCC Compliance - This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference;
(2) this device must accept any interference received, including interference that may cause undesired operation.
5. Power Specifications
* Voltage: 12 VDC nominal
* Deployment Duration (Continuous operation): Battery Used for Test
* 8 AA cells, Lithium (2900mAh @ 1.5vdc) ≈21 hours; Energizer Lithium L91
* 8 AA cells, Rechargeable Nickel-metal hydride (1850mAh @ 1.2vdc) ≈12.75 hours; Rayovac 15 minute IC3
* 8 AA cells, Alkaline (2850mAh @ 1.5vdc) ≈7.5 hours Energizer Alkaline and Duracell Procell
6. Environmental Specifications
* Range of: O℃ to 21℃.
* Battery Shelf Life: Use within one month.
* ADCP must be under 50ºC).
* Operating temperature: -5°to 40℃(internal temperature of the StreamPro
* Storage temperature: -25° to 60℃(with battery pack removed).
* Battery Storage: Batteries should be stored in dry air with a temperature.
