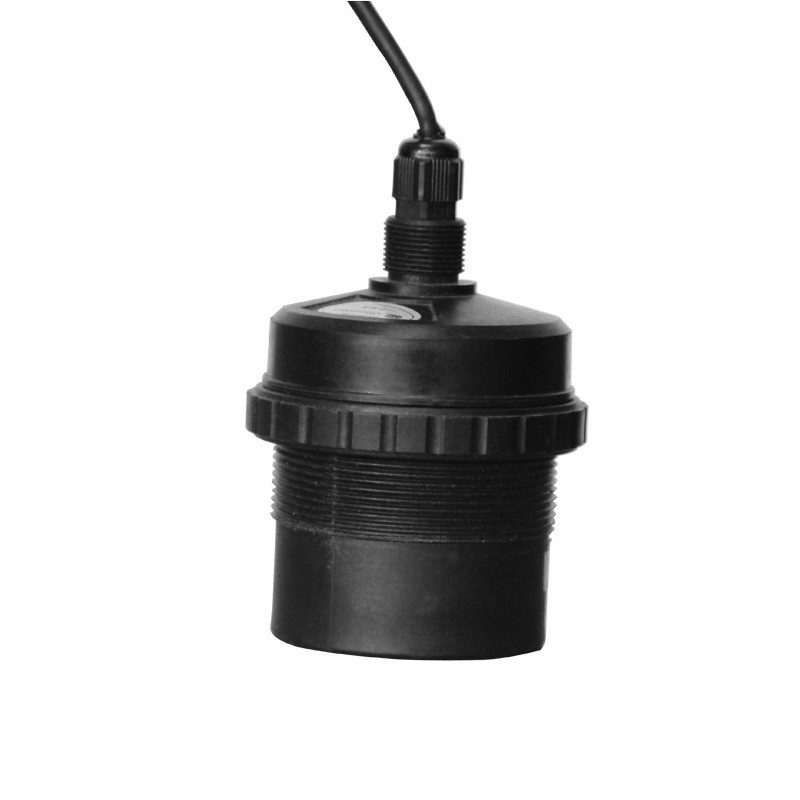

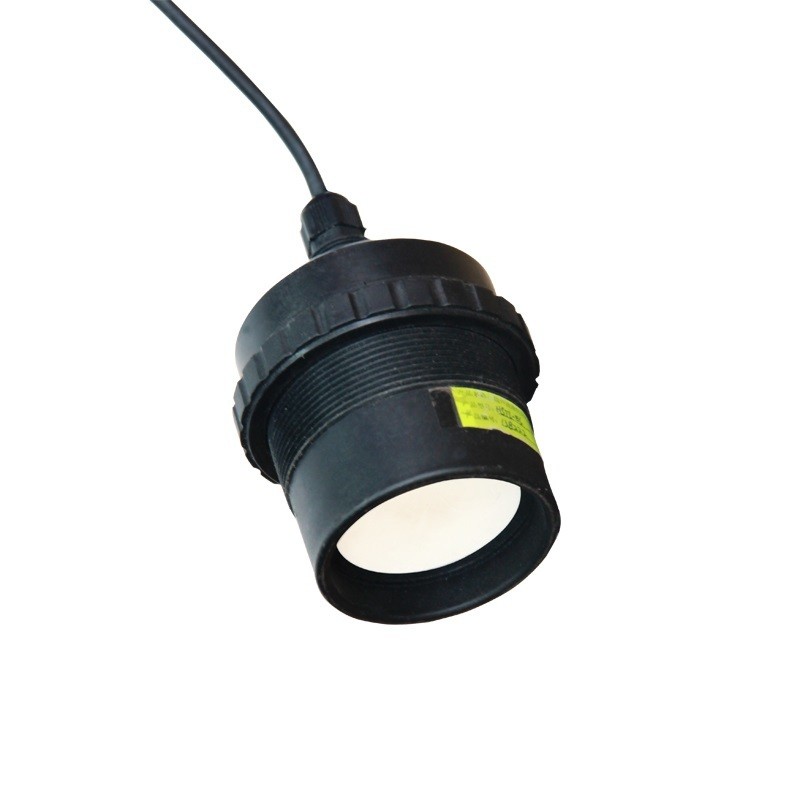

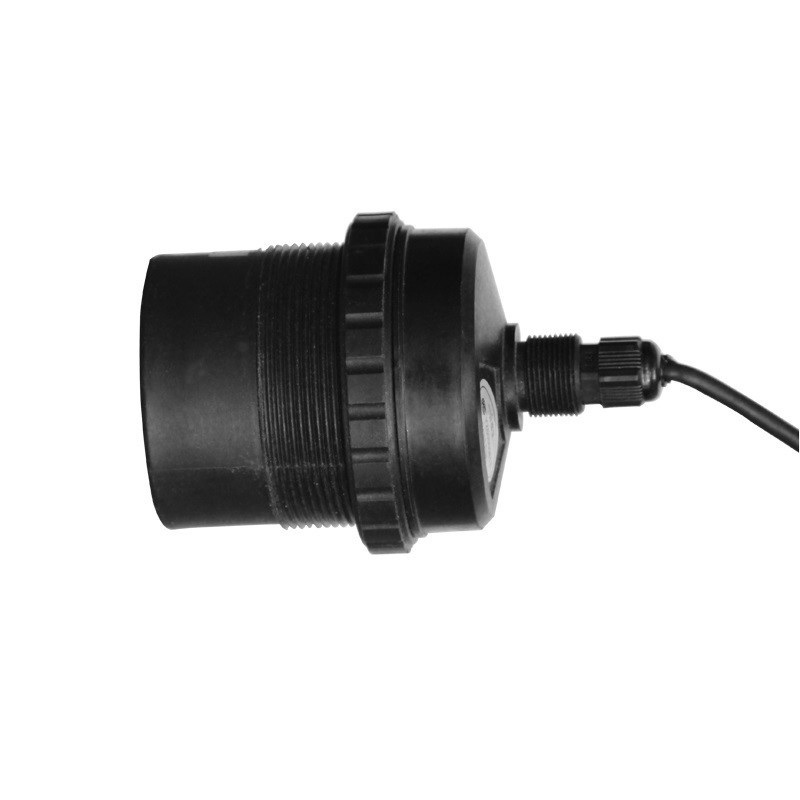

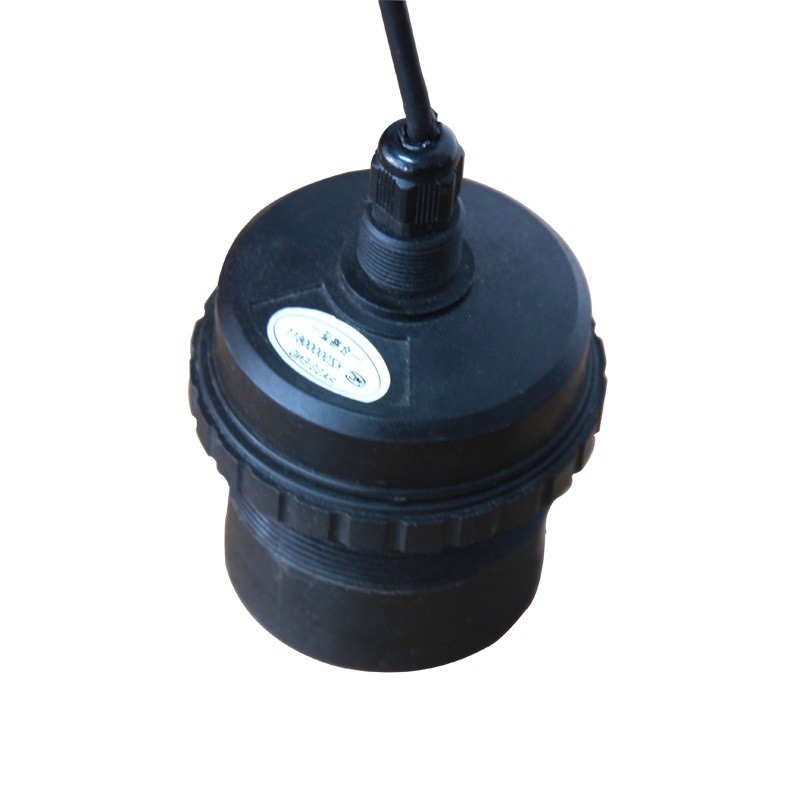

10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level

  • 10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level
  • 10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level
  • 10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level
  • 10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level
  • 10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level
Place of Origin Beijing, China
Brand Name BGT
Model Number HTSL-ES
Minimum Order Quantity 1 piece
Price $80.00 - $200.00/pieces
Packaging Details Box
Supply Ability 2000 Piece/Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ultrasonic Water Liquid Level Transmitter Operation Temperature -10~50℃
Max Measure Range 10 M Detect Accuracy ±0.5%F.S
The Sensor Casing Material Plastics Output Signal RS485-pc,or4~20mA
Operation Power DC24V/300mA,or DC12V/300mA Port Tianjin
Leave a Message
Product Description
What We Sell
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 0

Ultrasonic Water Level  Transmitter

Ultrasonic level sensors are used for non-contact level sensing of highly viscous liquids, as well asbulk solids. They are also widely used in water treatment applications for pump control and open channel flow measurement.


Product Description

HSTL-ES Ultrasonic water liquid level transmitter

This type  sensor is used for non-contact level sensing of highly viscous liquids, as well as bulk solids. They are also widely used in water treatment applications for pump control and openchannel flow measurement. The sensors emit high frequency (20 kHz to 200 kHz) acoustic waves that are reflected back to and detected by the emitting transducer.

FEATURES

* Range of up to 60 meters

  * Level or material measurement

  * Good stability

  * Response speed is adjustable

  * Easy Installation

APPLICATION

  * River water level measurement

  * Lake water level measurement

  * Shallow water level measurement

  * Hydrological monitoring

  * Environmental protection

10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 1
Range
0 ~ 10m
Blind area
≤300~800mm
Accuracy (in air)
0.5% (full scale)
Current output
4 ~ 20mA; RS485(optional)
Output Resolution
0.03% of the actual range
Temperature range
-10-- +60℃
Power supplier
DC12V/300mA
IP grade
IP 65
Installation
Flange or bracket
Cable length
0.5M
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 2
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 3



Appliction
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 4
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 5
Realated Products
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 6
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 7
Company Profile
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 8
EXS&CES
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 9
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 10
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 11
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 12
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 13
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 14
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 15
Produce &Package
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 16
10m Max Measure Range Ultrasonic Water Liquid Level Transmitter for Water Level 17
Advantages& FAQ

Why Choose Us


    ◆8 years in hydrology and meteorology wireless communication industry
  ◆Apply in more than 50 countries & areas
  ◆Certificated completed
  ◆Millions of terminals on-line
  ◆Strong R&D team, senior staff more than 60
  ◆Support OEM/ODM cooperation

FAQ


Q1: Are you factory or trading company?

A: Yes, We are factory. We design, develop and produce products all by ourselves.

Q2: Can I have a sample order?

A: Yes, sample order for testing is acceptable before bulk order.

Q3. Do you have any MOQ limit?

A: Low MOQ, any order quantity is welcome.

Q4: What about the lead time?

A:Sample order: 3-5working days; bulk order:15-20 working days

Q5: How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.

Q6: Is it OK to print my logo on the products?

A: Yes, we support OEM/ODM service.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: Can I visit your company before placing orders to you?

A: Yes, warmly welcome to visit our company.

Q9: How is the quality of your goods?

A: We make a commitment to sell excellent quality goods to our customers. Should there be any problems with our products, we can send free replacement in the next order upon picture and video confirmation.
