Ultrasonic level sensors are used for non-contact level sensing of highly viscous liquids, as well asbulk solids. They are also widely used in water treatment applications for pump control and open channel flow measurement.
All Products
Contact Person :
Li
Phone Number :
+8618001182408
Temperature-Resistant 15M Ultrasonic Water Level Sensor with RS485 Modbus Output
| Place of Origin | China |
|---|---|
| Brand Name | BGT |
| Model Number | HTSL-ES |
| Minimum Order Quantity | 1 piece |
| Price | $168.30/pieces 1-9 pieces |
| Packaging Details | Box |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Ultrasonic Water Level Sensor | Range | 0-15m |
|---|---|---|---|
| Supply Voltage | DC24V/300mA | Output Signal | RS485-pc / 0-5V / 4~20mA |
| Accuracy | ±0.5%F.S | Detect Blind Area | ≤800mm(max Measure Range Including Blind Area) |
| Operation Temperature | -10~50℃ |
Product Description
What We Sell
Ultrasonic Water Level Sensor
Product Description

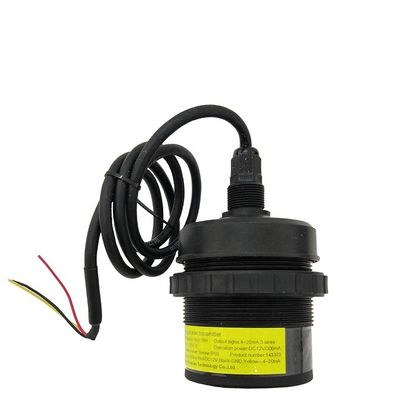

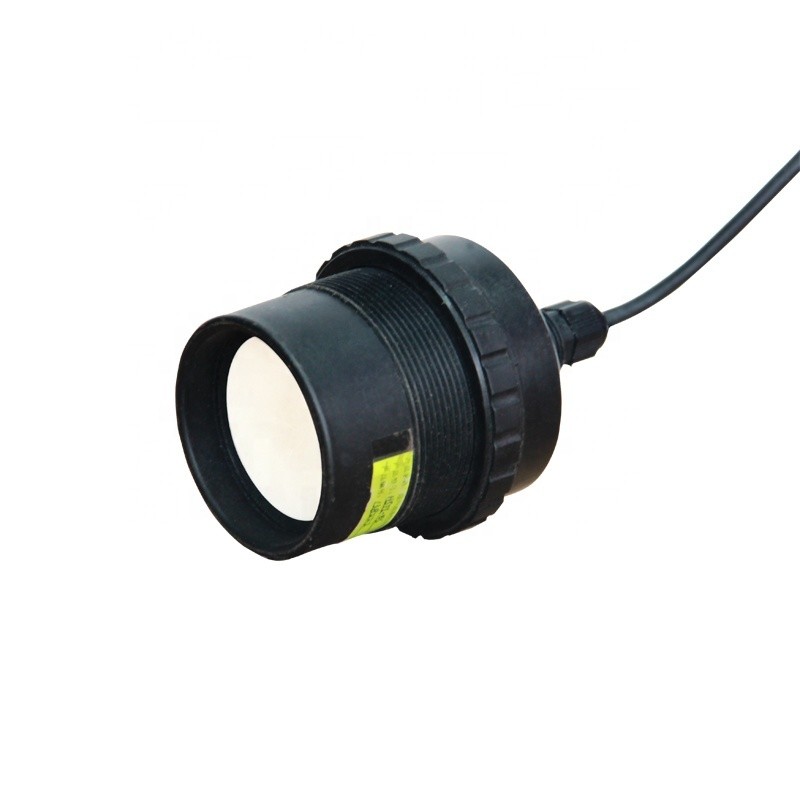

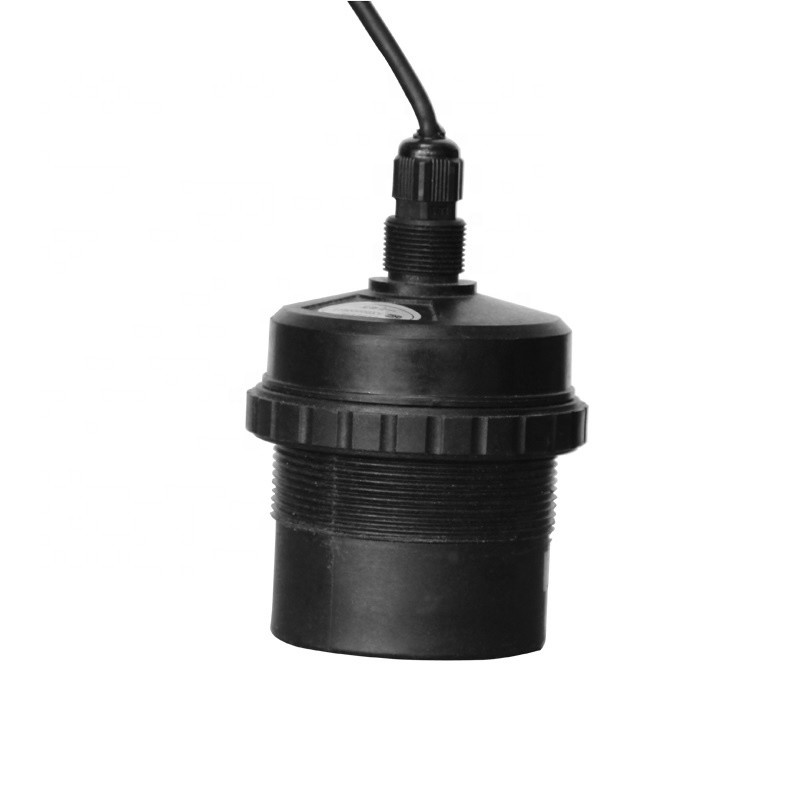

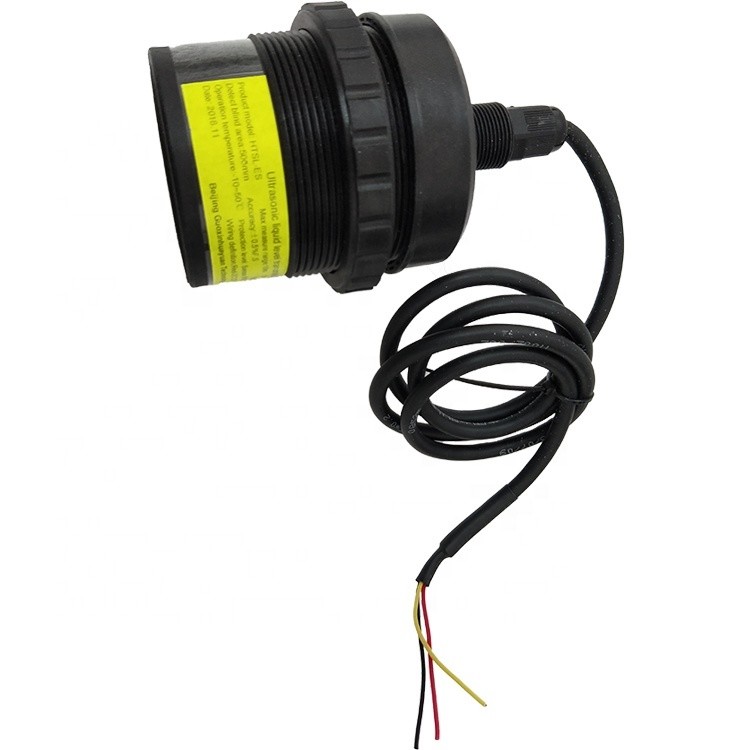

HTSL-ES Ultrasonic Water Level Sensor
Ultrasonic water level sensor are used in a wide variety of applications to detect the location of level in a process or storage vessel. These switches can be used in virtually liquid. A complete offering of materials and mounting configurations are available to meet your application needs.
FEATURES
* Range of up to 30 meters
* Level or material measurement
* Good stability
* Response speed is adjustable
* Easy Installation
APPLICATION
* River water level measurement
* Lake water level measurement
* Shallow water level measurement
* Hydrological monitoring
* Environmental protection
Range | 0 ~ 15m | ||
Blind area | ≤800mm | ||
Accuracy (in air) | 0.5% (full scale) | ||
Current output | 4 ~ 20mA; 0-5V;RS485(optional) | ||
Output Resolution | 0.03% of the actual range | ||
Temperature range | -10-- +60℃ | ||
Beam angle | 9degree | ||
Application environment | Constant pressure, NOTexplosion-proof, Non erosive environment | ||
Power supplier | DC24V/300mA | ||
IP grade | IP 66 | ||
Installation | screwM68×2.0mm，or sifter clamping | ||
Cable length | 3M | ||
Appliction
Realated Products
Company Profile
EXS&CES

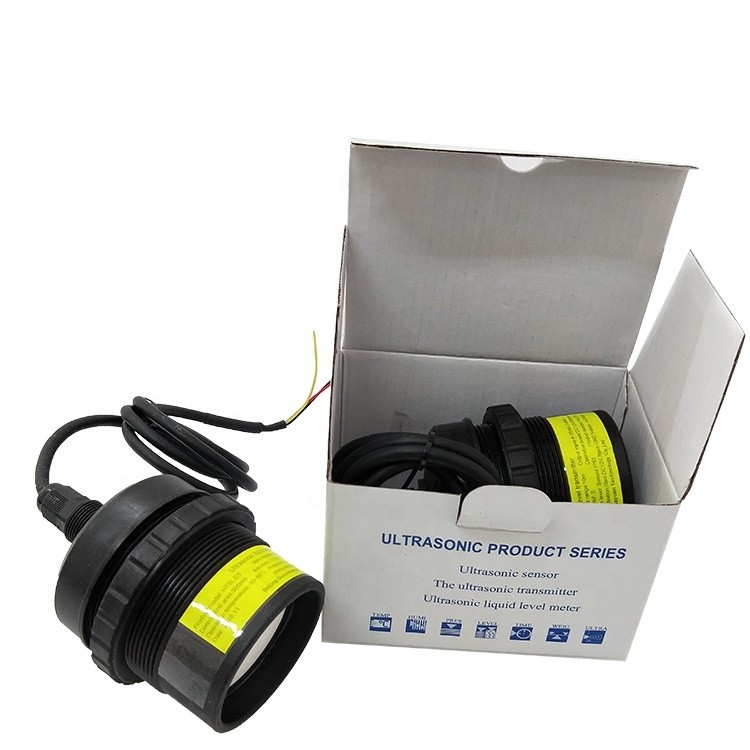

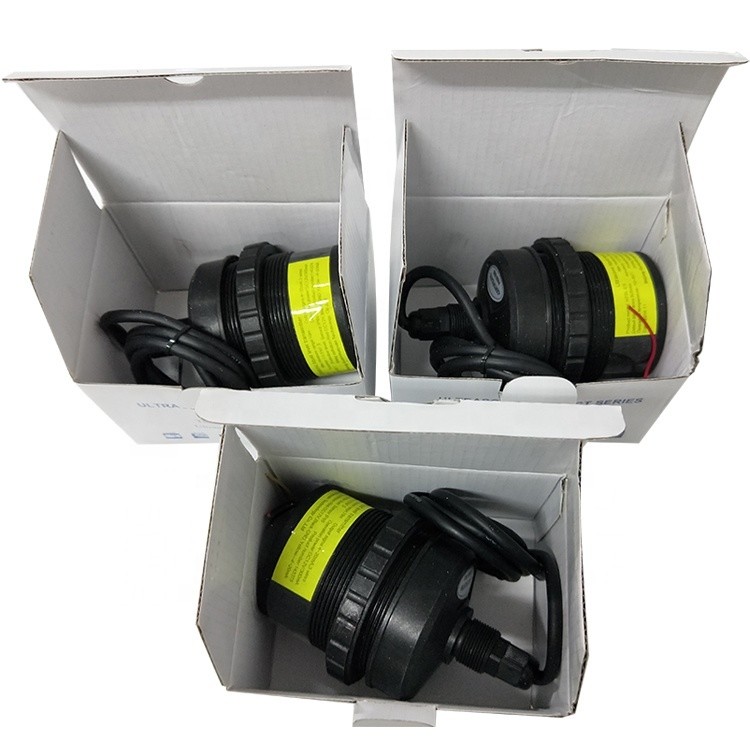

Produce &Package
Advantages& FAQ
Advantages:
Innovation: All Products have proprietary intellectual property rights
Brand: The main products are the No.1 in the flood monitoring equipment industry
Standard: The only one company who participates in making the national standard in the hydraulic engineering industry.
Market Share : Our main products have top 3 market share in China and have sold our products to more than 28 provinces, 500 counties.
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
