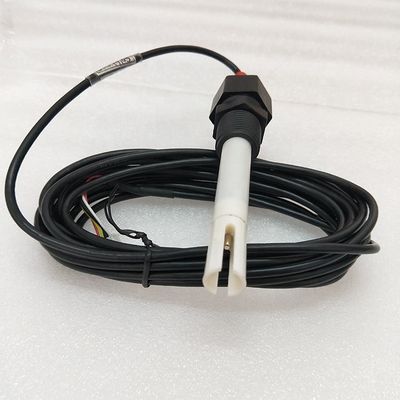

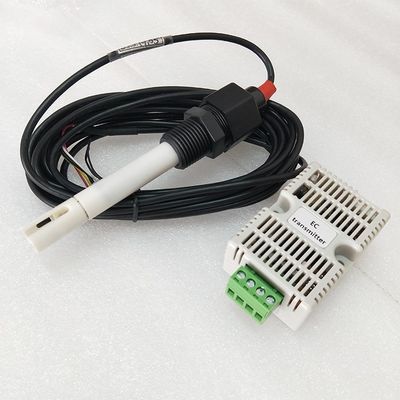

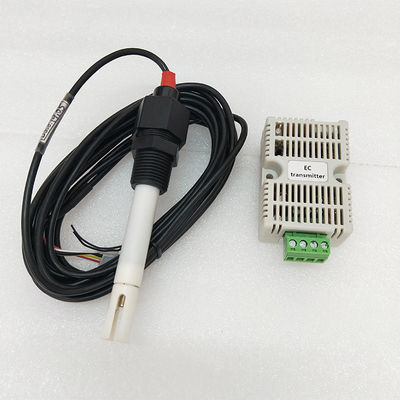

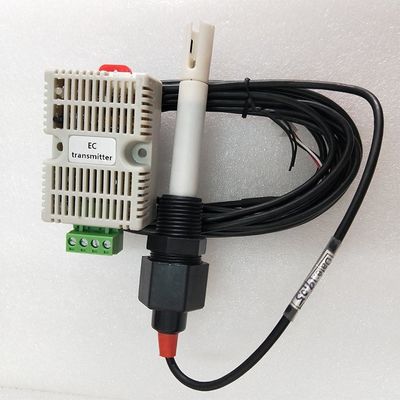

Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus

Place of Origin Beijing, China
Brand Name BGT
Model Number D178-E
Minimum Order Quantity 1 piece
Price $65.80/sets 2-99 sets
Packaging Details Cartons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Water Ec Sensor Key Word EC Sensor
Test Objects Water Working Temperature 0-100℃
Working Humidity 0-100%RH Detection Substance EC
Detection Range Default 0-4400us/cm (optional 0-44000us/cm) Output Signal Default 4-20mA (optional RS485 Modbus)
Product Material ABS 5 M Platinum Black Electrode
Leave a Message
Product Description
Please Attention
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 0

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 2

China manufacturer Water EC sensor



Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 4

Specification

Product Name
Water Conductive  Sensor
Working Voltage
12-24V DC
Power consumption
<1W
Working Temperature
 0-100℃
Working Humidity
0-100%RH
Storage Temperature
10-50℃
Storage Humidity
20-60%RH
Detection Substance
EC
Detection Range
Default 0-4400us/cm (optional 0-44000us/cm)
Output Signal
Default 4-20mA (optional RS485)
Accuracy
 ≤±2%F*S (full scale)
Product Material
ABS 5m platinum black electrode
Product Size
65mm*46mm*28.5mm
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 5
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 6
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 7

           ISO14001

Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 9

                        CE


Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 11

             ISO9001


Company Profile

   Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer.
     We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.

BGT-SR ABS RS485/Relay Rainfall and snow sensor with optional heating function
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 13
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 15
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 17
Our Factory
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 19
EXS&CES
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 21
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 23
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 25
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 27
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 29
How to Order

1. Tell us what resistance, color, quantity you want to purchase.

2. PI will made for you to confirm.
3. After confirmation, products will arranged when we received your payment.
4. Delivery the goods once tested approved.
5. Any questions will be responded within 24 hours.

Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 31
Hydroponics Aquaculture Water Monitoring EC Sensor 12V 24V Module 4-20ma RS485 Modbus 33
Advantages& FAQ

Why Choose Us


◆ 8 years in hydrology and meteorology wireless communication industry
◆ Apply in more than 50 countries & areas
◆ Certificated completed
◆ Millions of terminals on-line
◆ Strong R&D team, senior staff more than 60
◆ Support OEM/ODM cooperation


FAQ


Q1: Are you factory or trading company?
A: Yes, We are factory. We design, develop and produce products all by ourselves.

Q2: Can I have a sample order?
A: Yes, sample order for testing is acceptable before bulk order.

Q3. Do you have any MOQ limit?
A: Low MOQ, any order quantity is welcome.

Q4: What about the lead time?
A:Sample order: 3-5working days; bulk order:15-20 working days

Q5: How do you ship the goods?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.

Q6: Is it OK to print my logo on the products?
A: Yes, we support OEM/ODM service.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.

Q8: Can I visit your company before placing orders to you?
A: Yes, warmly welcome to visit our company.

Q9: How is the quality of your goods?
A: We make a commitment to sell excellent quality goods to our customers. Should there be any problems with our products, we can send free replacement in the next order upon picture and video confirmation.
