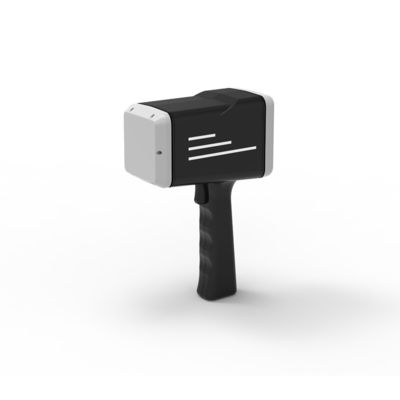

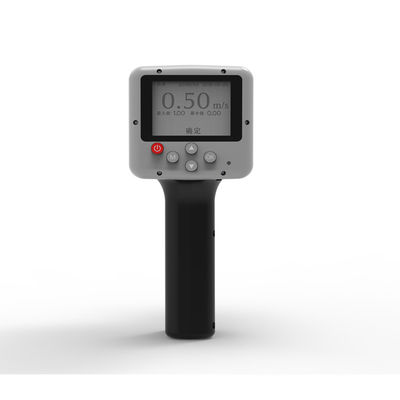

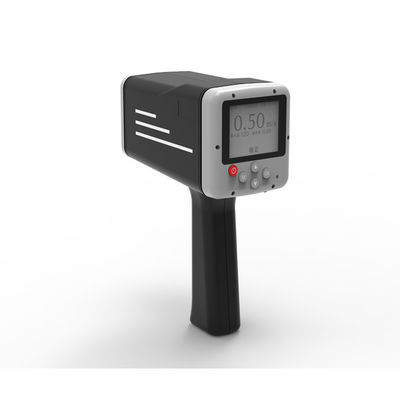

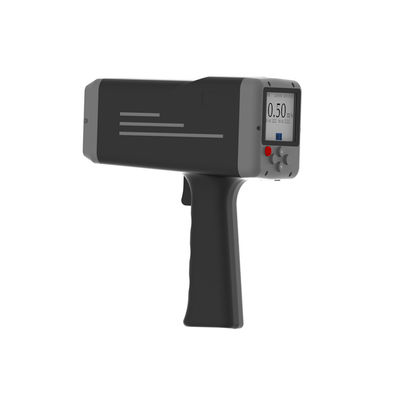

Open Channel Handheld Portable Lcd Display Radar for Water Flow Velocity Measurement
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Certification | CE |
| Model Number | BGT-RD104 |
| Minimum Order Quantity | 1 piece |
| Price | $2,217.72/pieces 1-9 pieces |
| Packaging Details | Box( radar water flow velocity sensor) |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 YEAR | Customized Support | OEM |
|---|---|---|---|
| Key Word | Channel Handheld Radar Sensor | Measuring Range | 0.03~20m/s |
| Resolution | 0.01m/s | Accuracy | ±0.03m/s |
| Frequency | 24GHz | Measuring Distance | 100m |
| Use Temperature | -20~+70℃ | Material | ABS |
| Protection Level | IP67 |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description
Open Channel Handheld Portable Lcd Display Radar Surface Water Flow Velocity Sensor For Water And Liquid Speed Measurement

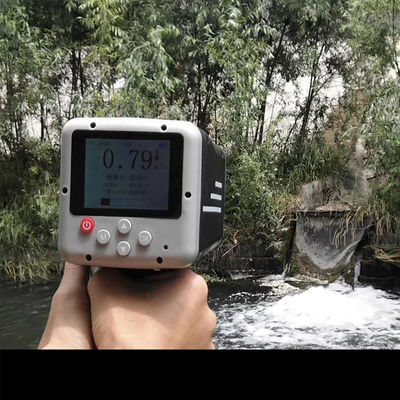

BGT-RD104 radar wave flow meter is an advanced flow rate measuring instrument, which uses radar technology to achieve a simple, fast non-contact surface velocity. The instrument is small and lightweight, easy to carry, very suitable for floods or rapids other than other instruments which is difficult to use for measuring river flow velocity as water-immersed using and on-site testing.
BGT-RD104 radar wave flow meter integrated a lot of leading technology. Such as the use of precision planar narrowband array radarsensor, FFT digital signal processing, flow direction identification, vertical and horizontal angle of the automatic correction;the instrument can measure the maximum flow rate is 20m/ s, detection sensitivity. Flow meter has a large color LCDscreen,embedded guide menu-style software, very user-friendly operation.

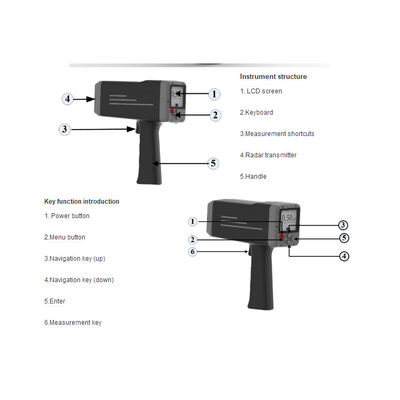

characteristics of instruments
1.for single use, the weight is less than 1 kg, hand-held measurement or on a tripod (option);
2.Chinese/English interface, easy operation; 3.non-contact operation, is not affected by sediment, also not be eroded by water;
4.the horizontal and vertical direction Angle automatic correction;
5.a variety of measurement mode, can rapid measurement can also be continuous measurement;
6.The data can be transmitted wirelessly via blue-tooth (as optional blue-tooth);
7.BGT-60 can be used continuously for more than 10 hours using built-in high capacity lithium ion battery,
8.a variety of charging ways, you can use alternating current, vehicular charging and mobile power charging.
Data sheet
Measuring principle | Radar |
Measuring range | 0.03~20m/s |
Measurement accuracy | ±0.03m/s |
Radio wave emission angle | 12° |
Radio wave emission standard power | 100mW |
Radio frequency | 24GHz |
Angle compensation | Horizontal and vertical angle automatic |
Horizontal and vertical angle automatic compensation range | ±60° |
Communication method | Bluetooth,USB |
Storage size | 2000 measurement results |
Maximum measuring distance | Within 100 meters |
Protection level | IP67 |
