Liquid Level Sensor RS485 Modbus Hydrostatic Submersible Ground Temperature Pressure
| Place of Origin | China |
|---|---|
| Brand Name | BGT |
| Certification | CE |
| Model Number | GX-701PT |
| Minimum Order Quantity | 1 piece |
| Price | $95.23/pieces 1-49 pieces |
| Packaging Details | Box( liquid level gauge) |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | Industrial | Warranty | 1 Year |
|---|---|---|---|
| Customized Support | OEM | Product Name | Liquid Level Temperature Sensor |
| Key Word | Liquid Level Sensor | Accuracy | 0.5% FS (0.25%FS;0.1%FS Customized) |
| Output Signal | RS485 Modbus | Power Supply | 8-30V DC |
| Diaphragm Material | 316L | Operate Temperature | -20℃~85℃ |
| Protection Level | IP68 | Storage Temperature | -40℃~125℃ |
| Cable Length | Customized(The Quotation Do Not Include Cable ) |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description

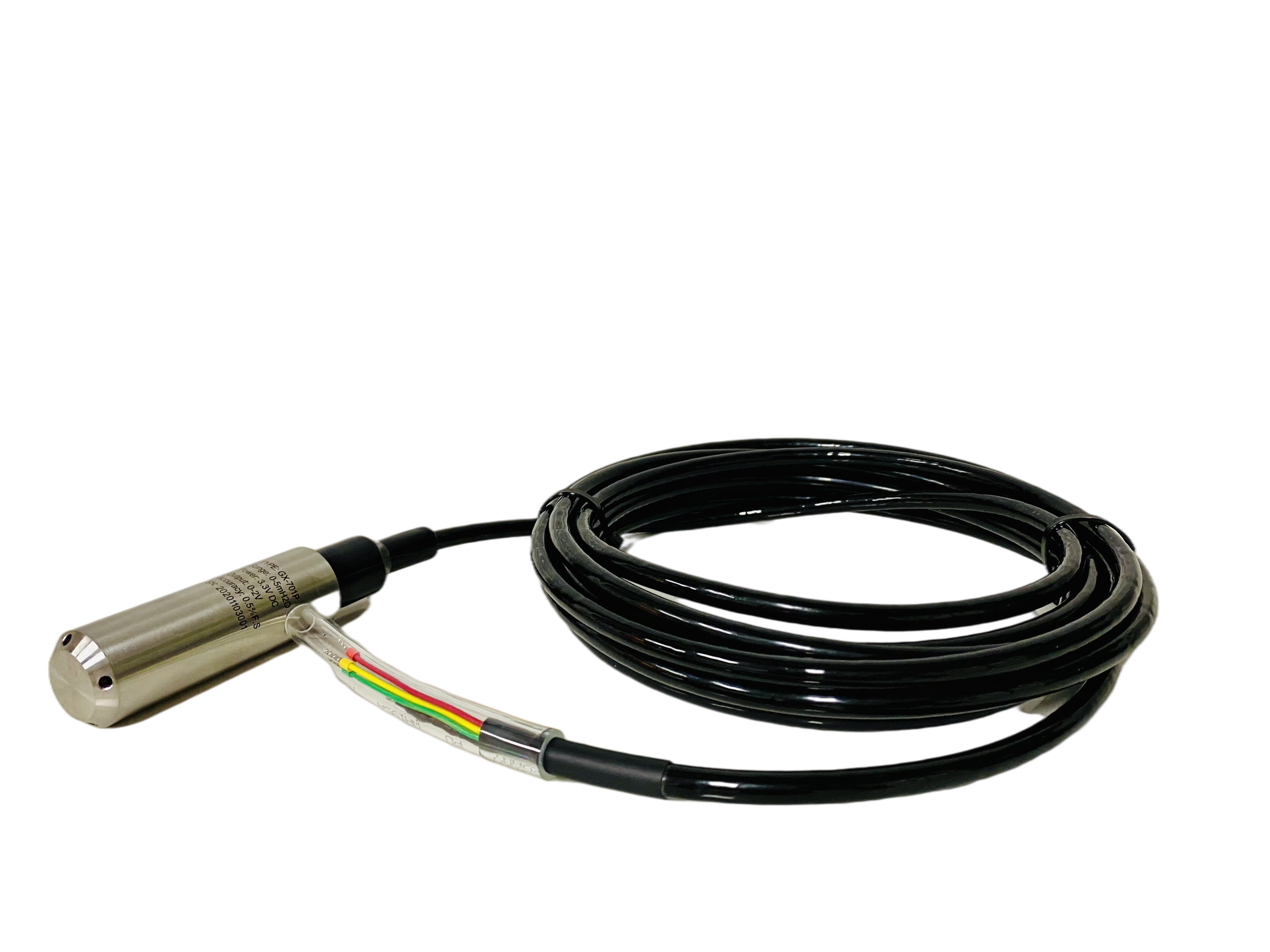

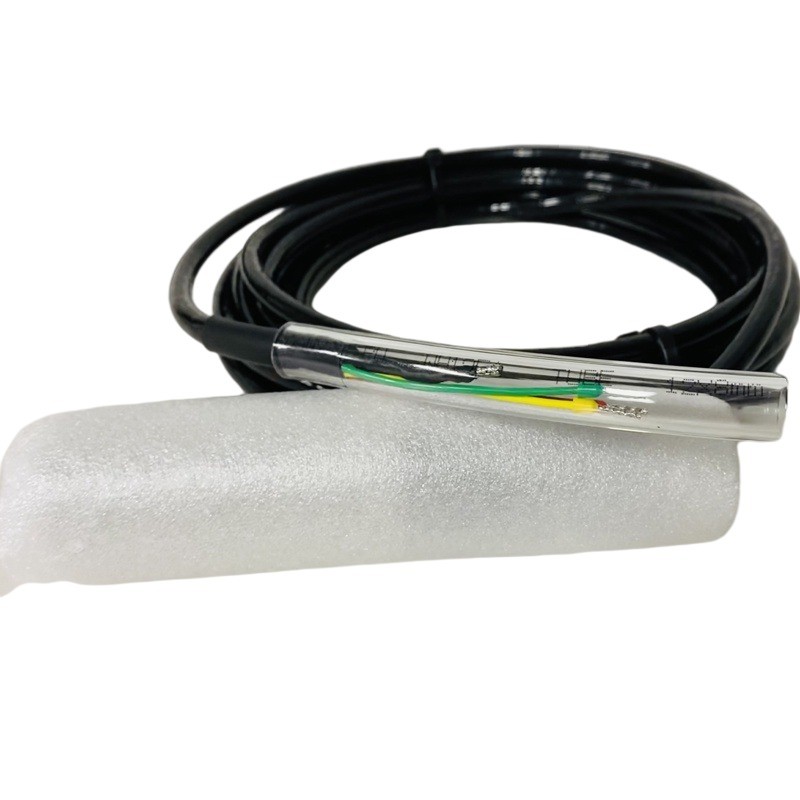

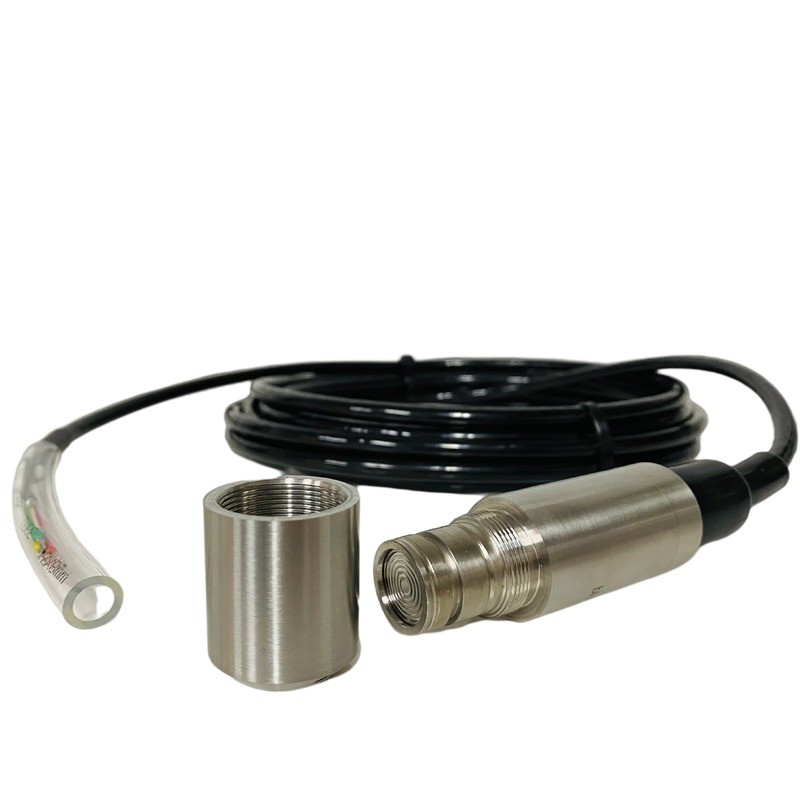

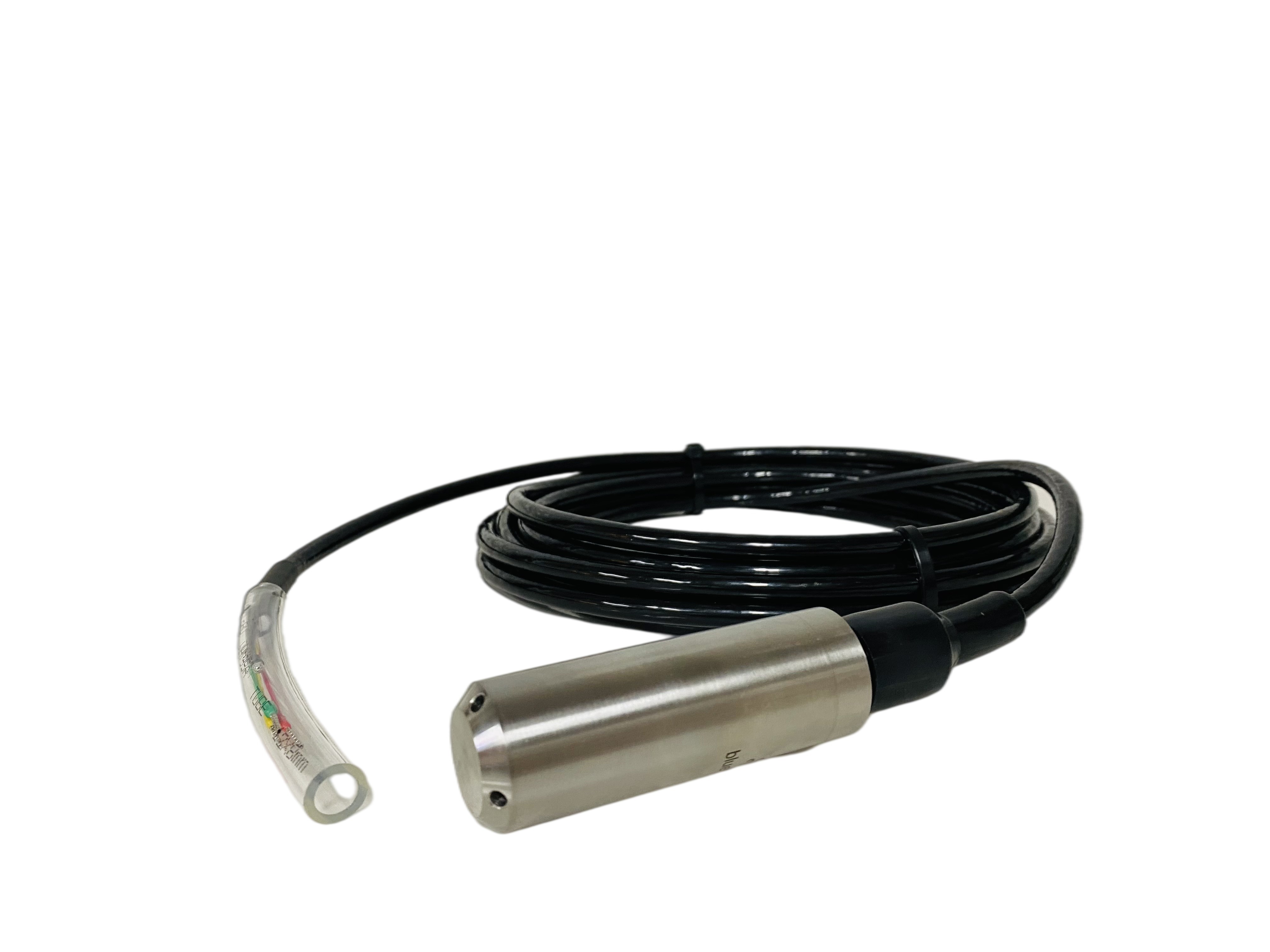

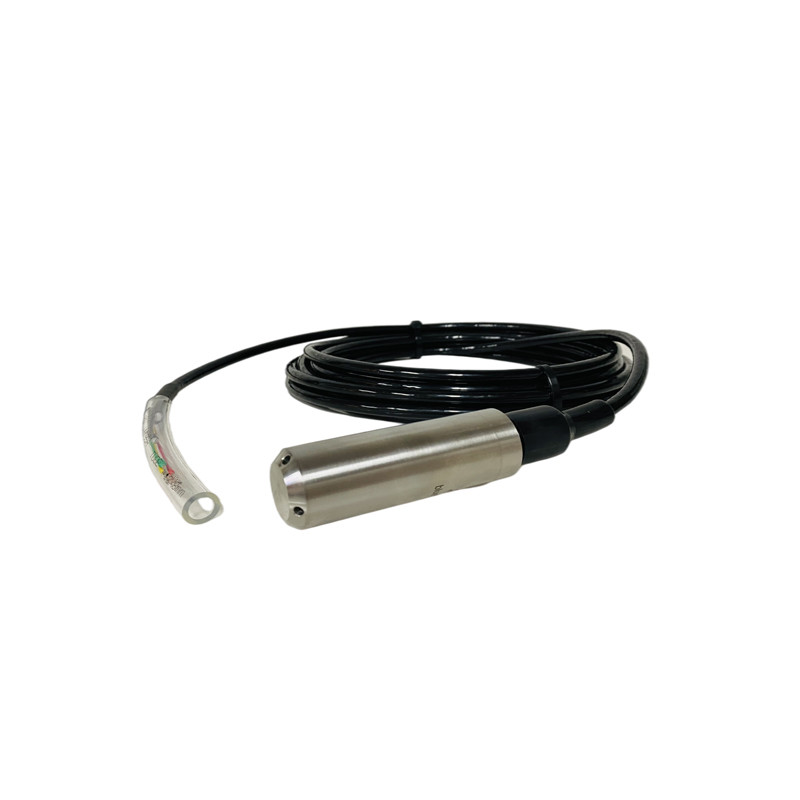

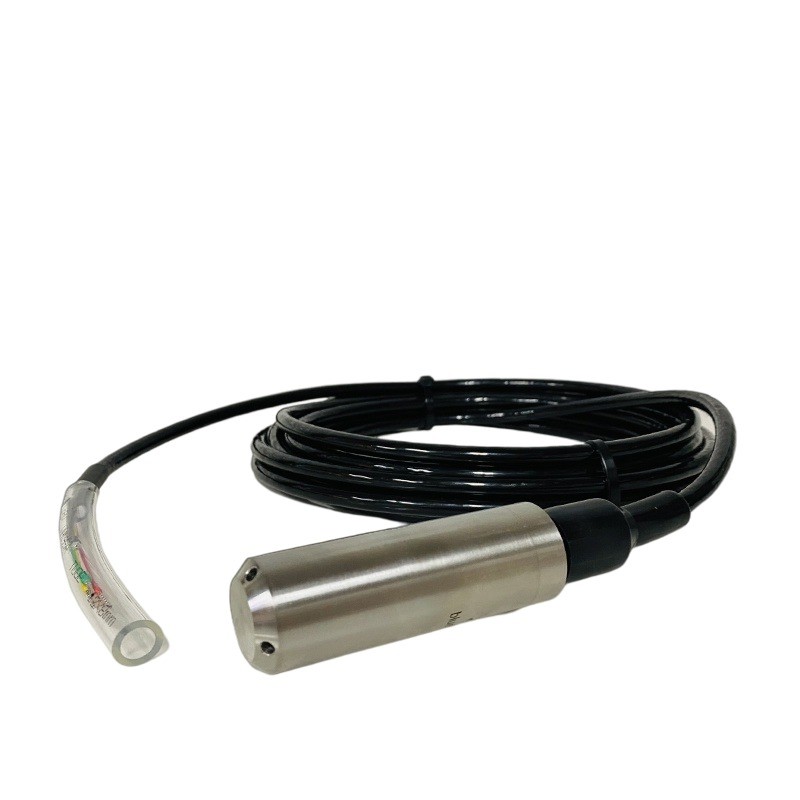

RS485 Modbus Hydrostatic Submersible Ground Piezometers Water Liquid Level Temperature Pressure Sensor
GX-701PT series liquid level temperature transmitter is based on the principle that the static pressure of the liquid is
proportional to the height of the liquid, using the piezoresistive effect of diffusion silicon or ceramic sensitive elements, thestatic pressure into electrical signals, built-in temperature sensor PT100 can be measured at the same time the liquid
temperature.Then with the special digital circuit, through signal amplification, linear compensation, anti-interference,
anti-surge protection signal processing, made can simultaneously measure the liquid level and temperature of the integration of products.
◆Multi output signal for choice
◆All welding process, durable
◆Anti-interference，Surge protection
◆Range：0～1m～300mH2O
◆316L Stainless steel diaphragm，Integrated design
◆All welding process, durable
◆Anti-interference，Surge protection
◆Range：0～1m～300mH2O
◆316L Stainless steel diaphragm，Integrated design
Data sheet
Product Name | Rs485 Modbus Hydrostatic Submersible Ground Piezometers Water Liquid Level Temperature Pressure Sensor |
Type | GX-701PT |
Level measurement range | 0-100m |
Accuracy | 0.5% FS (can customize 0.2% FS or 0.1% FS) |
Ambient temperature | - 20 ~85℃ |
Power supply | DC 8-30V, |
Output signal: | RS485 Modbus(can customizd voltage output and current output) |
Diaphragm material | 316L |
Cable material | PU(can customized PE,PTFE) |
Protection level | IP68 |
Application
Customer feedback
More than 30 good feedback from Alibaba Trade Assurance Order since 2018.
Company Profile
Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company with R&D, production, marketing, project implementation and after sales. We are focus on providing professional hydrology and meteorology monitoring device and technical service, and developed a series of flood early warning system products by ourselves, which owning more than 50 patents and 60 software copyrights. Then our product line is including monitoring products, communication products, early warning products and cloud platform. However, our products have been sold to more than 30 countries, such as Australia, Japan, Sri Lanka and so on. Especially our tipping bucket rain gauge is doing well in foreign countries. Meanwhile, our products are covered all provinces in China and we have Guangxi/Guangdong/Hunan/Hubei/Qinhai branches.
We are devoted to solving the flood disaster problems for human beings and becoming one of the famous brands in the flood early-warning industry. Welcome to contact us.Hot sale industrial universal water tank level pressure sensor
EXS&CES
Advantages& FAQ
Why Choose Us
◆8 years in hydrology and meteorology wireless communication industry
◆Apply in more than 50 countries & areas
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation
FAQ
Q1. Can I have a sample order ?
Hot sale industrial universal water tank level pressure sensor
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Hot sale industrial universal water tank level pressure sensor
Q2. What about the lead time?
Hot sale industrial universal water tank level pressure sensor
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3. Do you have any MOQ limit?
Hot sale industrial universal water tank level pressure sensor
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Hot sale industrial universal water tank level pressure sensor
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
Hot sale industrial universal water tank level pressure sensor
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Hot sale industrial universal water tank level pressure sensor
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Hot sale industrial universal water tank level pressure sensor
