1.The data can be transmitted wirelessly via blue-tooth (as optional blue-tooth);
2.RD-600S can be used continuously for more than 10 hours using built-in high capacity lithium ion battery,
3.a variety of charging ways, you can use alternating current, vehicular charging and mobile power charging.
All Products
Contact Person :
Li
Phone Number :
+8618001182408
RD-600S 24GHz Open Channel 3 in 1 Non-Contact Radar Water Flow Velocity Flowmeter 7m
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Certification | CE |
| Model Number | RD-600S |
| Minimum Order Quantity | 1 piece |
| Price | $1,970.22/pieces 1-9 pieces |
| Packaging Details | Box( radar water flow velocity sensor) |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 YEAR | Customized Support | OEM |
|---|---|---|---|
| Product Name | Radar Flow Meter | Key Word | Radar Water Flow Meter |
| Power Supply | 7-32V DC (5.5-32V DC Optional) | Accuracy | ±0.01m/s |
| Output Signal | RS485 Default | Frequency | 24GHz |
| Maximum Range | 7m | Use Temperature | -20~+70℃ |
| Material | Aluminum Shell | Protection Level | IP68 |
Product Description
Product Description

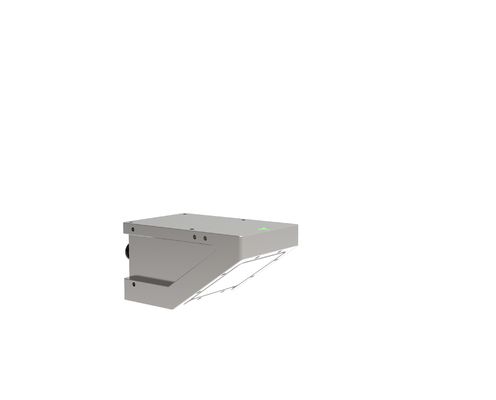

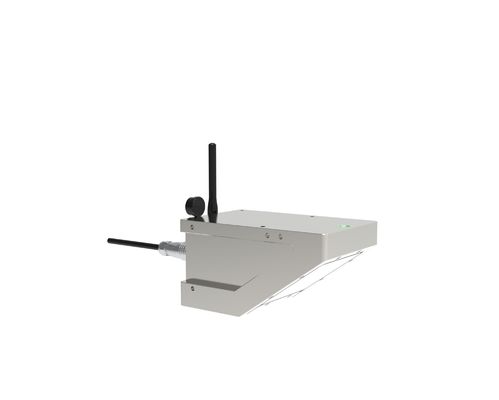

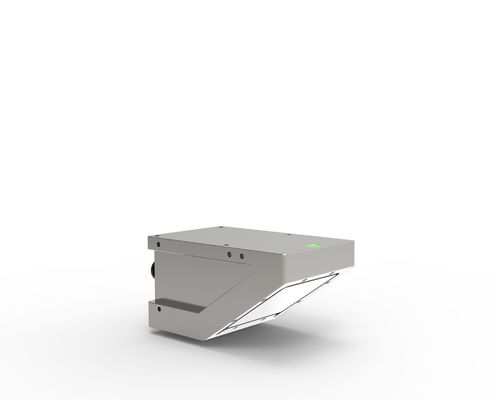

RD-600S 24GHz Open Channel 3 In 1 Non-contact 7m Measuring Range Radar Water Flow Velocity Flowmeter For Rivers
RD-600S radar flowmeter is a non-contact instrument which can measure water level, velocity and flow. During the measurement, the equipment is not affected by sewage corrosion, temperature and sediment; the civil engineering is simple, less affected by water damage, easy to maintain and ensure the safety of construction personnel. The RD-600S radar flowmeter uses microwave radar technology, which adopts precision planar narrow-band array radar sensor, digital signal floating-point algorithm processing, velocity direction identification, rain day denoising, vertical angle automatic correction and other functions; the equipment is easy to install, and can realize non-contact measurement of water level, velocity and flow of river, open channel, reservoir, sewage pipe network, etc.
Data sheet
Measurement parameters | Radar | |
Product name | Radar Water Flowrate Water level water flow 3 in 1 meter | |
Flow measurement system | ±0.03m/s | |
Measuring principle | Radar Planar microstrip array antenna CW + PCR | |
Operating mode | Manual, automatic, telemetry | |
Applicable environment | 24 hours, rainy day | |
Operating temperature range | -30℃~+80℃ | |
Operating Voltage | 7-32V / 5.5-32V (optional) DC power supply | |
Relative humidity range | 20%~80% | |
Storage temperature range | -30℃~80℃ | |
Working current | 4VDC input, working mode: ≤300mA standby mode | |
Lightning protection level | 6KV | |
Physical dimension | 160*100*80（mm） | |
Weight | 1KG | |
Protection level | IP68 | |
Radar Flowrate sensor | ||
Flowrate Measuring range | 0.03~20m/s | |
Flowrate Measurement accuracy | ±0.01m/s ;±1%FS | |
Flowrate Radar frequency | 24GHz | |
Radio wave emission angle | 12° | |
Radio wave emission standard power | 100mW | |
Measuring direction | Automatic recognition of water flow direction, built-in vertical angle correction | |
Radar Water level gauge | ||
Water level Measuring range | 0.2~7.0m | |
Water level Measuring accurancy | ±2mm | |
Water level Radar frequency | 60GHz | |
Radar power | 10mW | |
