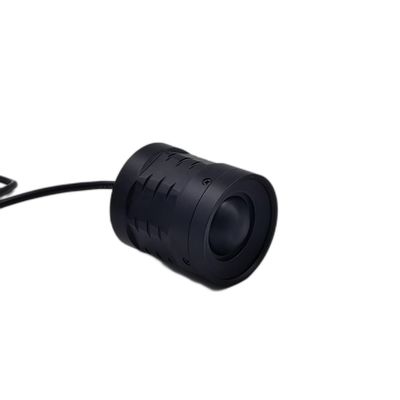

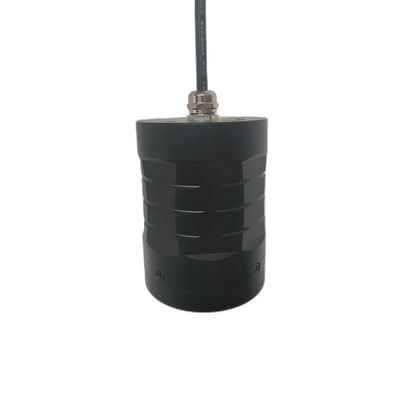

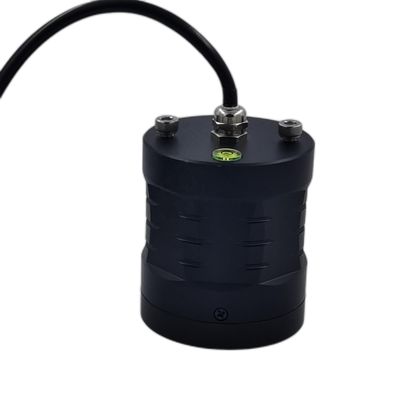

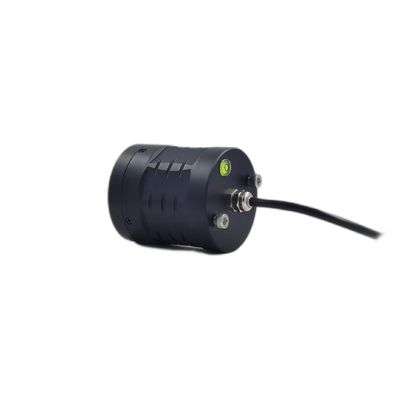

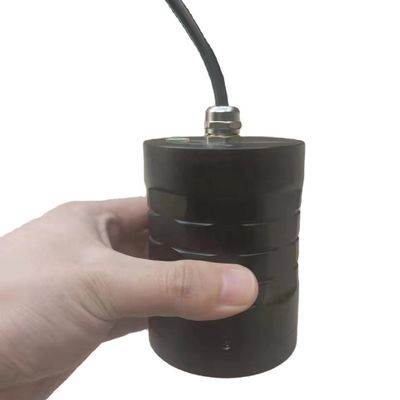

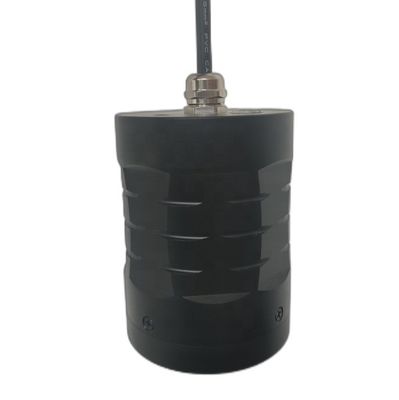

60Ghz RS485 River Tank Pulse Coherent Radar Level Sensor for Open Channel Industrial
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-RD401 |
| Minimum Order Quantity | 1 piece |
| Price | $268.80/pieces 1-49 pieces |
| Packaging Details | Carton |
| Supply Ability | 1000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | Industrial | Warranty | 1 Years |
|---|---|---|---|
| Customized Support | OEM, ODM, Software Reengineering | Product Name | Radar Level Transmitter |
| Measuring Range | 12m | Accuracy | ±2mm |
| Power Supply | 12~24VDC | Output Signal | RS485 |
| Protection Level | IP68 | Probe Blind Area | 200mm |
| Frequency | 60Ghz | Port | Tianjin |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description
BGT-RD401 radar level transmitter is using pulse coherent radar (PCR) technology, it has higher measurement accuracy, lower power consumption and ultra-small volume compared with traditional pulse radar level transmitter. Using 60G submillimeter radar wave as carrier signal with accuracy 2mm, it has the characteristics of high integrated, small size and energy saving, and the measurement process is not affected by temperature, air pressure and mud Sand, dust, river pollutants, floating objects, air and other environmental factors; the optimized algorithm makes the measurement results more accurate and stable
Features
* Level or material measurement
* Good stability
* Response speed is adjustable
* Easy Installation
Application
* River water level measurement
* Lake water level measurement
* Shallow water level measurement
* Hydrological monitoring
* Environmental protection
* Lake water level measurement
* Shallow water level measurement
* Hydrological monitoring
* Environmental protection
Technical Parameters
Level measurement | ||
Measure range | 0.2-12m | |
Accuracy | ±2mm (Water) | |
Radar frequency | 60GHz | |
Antenna angle:8° Horn antenna length 40mm( Standard) Lens horn antenna length 15mm (optional) | ||
Scan rate | 1~10Hz | |
Other parameters | ||
Power supply range | 12-24V DC (Customized 5V DC) | |
Digital interface | RS485 | |
Blind Area | 200mm | |
12V Power Consumption | 35mW | |
Shell material | Aluminum alloy shell The dark brown part contains the radar lens made of POM material | |
Protection Level | IP68 | |
Working temperature | -40℃-70℃ | |
Cable Length | 1m (Standard) Customized for other length | |
Size（mm） | 82*73(mm) | |
Structure Size
Wiring Definition
Caution!!!
Be careful when connecting cables. If the power supply voltage is too high or the polarity is reversed, the sensor will be permanently damaged.
