Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg

Place of Origin Beijing, China
Brand Name BGT
Model Number WS-601-1S
Minimum Order Quantity 1 piece
Price $85.00 - $300.00/pieces
Packaging Details Box
Supply Ability 2000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1year Customized Support OEM, ODM
Product Name Tipping Bucket Rain Gauge Inner Diameter 200mm(8 Inch)
Single-tip 0.5mm(15.7cc) Measuring Range ≤4mm/min
Accuracy ±≤ 4% Operating Temperature -10℃~50℃
Material Stainless Steel Weight 3.5kg
Port Tianjin
Leave a Message
Product Description
What We Sell
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 0

Pay more attention on flood , Save more lifes

There are a lot of flood disasters around and it will be more and more important things that we need do to prevent the flood . At the first step is that we need some equipment to forcast the flood so that we can prepare for the coming flood ,such as the flood barrier or move to the safe place .


Product Description

WS-601 Flood Early-warning Rainfall Station

The community based flood early-warning rainfall station is devided into two parts : the out door tipping bucket rain gauge (rain sensor), which is the low-cost tipping bucket rain sensor. It has been update and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. It simplicity of design assures trouble-free operation , yet provide accurate rainfall measurement . And the indoor alarm can show the data and at same time it will send the alarm signal to local people and the data can be sent to the platform.



Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 1
Acute angle of cutting edge
40°~45°
inner diameter
Φ200+0.6mm
Single -tip
0.5mm(15.7cc)
Measuring range
4mm/min
Accuracy
≤±4%
Power
Solar panel
Transmission distance
≥100m
Communication mode
433MHz( China) 868MHZ(USA)
Material
SS 304
Humidity
95%
Operating Temperature
-10℃~50℃
Discharge Control
Drain out straightly by flow mechanism
Level Control
Bull-eye level fitted on base
Mounting holes
Three mountings
Weight
3.5kg
Height
330mm
Packing size
248*248*380(mm)
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 2
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 3

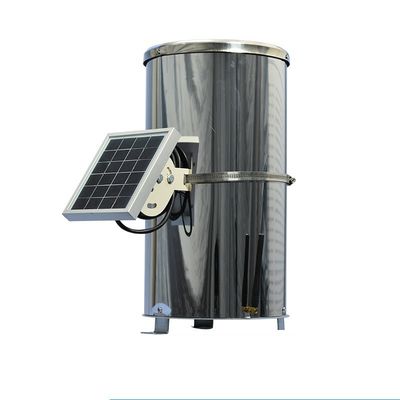

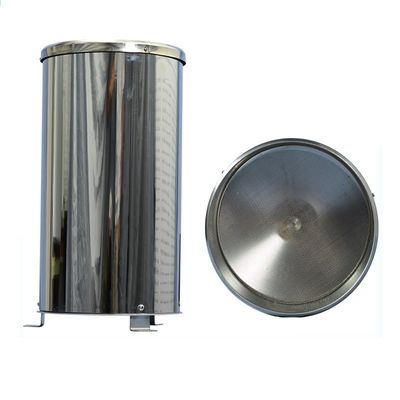

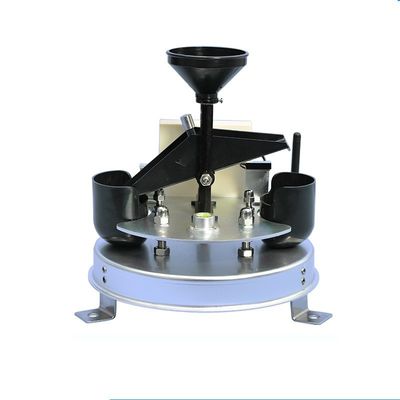

The outdoor Tipping bucket rain gauge (rain sensor)

Displays daily, 3-years record with total rainfall records and
allows remote observation and monitoring. Extremely accurate measurements! Increments of 0.5mm will allow you to know precisely how much rain is falling in your farm and around your house.

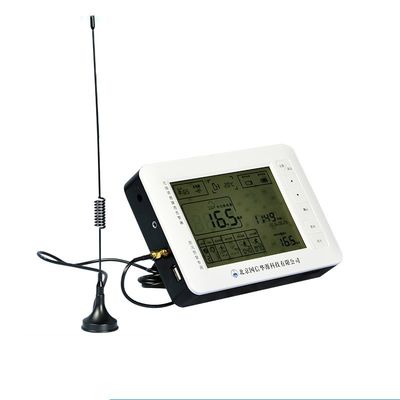

The idoor display

The  indoor display can show the temprature and rainfall of the rain guage .  Have the different lights to show the rainfall and when the raifall reach each 10mm will show the different lights .  Have the data storage which has built -in memory for sitorage of 60 recorded datas

Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 4
Appliction
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 5
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 6
Realated Products
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 7
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 8
Company Profile
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 9
EXS&CES
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 10
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 11
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 12
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 13
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 14
Produce &Package
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 15
Customized Support Tipping Bucket Rain Gauge Station for Flood Early Warning System 3.5kg 16
Advantages& FAQ

Advantages:

Innovation: All Products have proprietary intellectual property rights

Brand: The main products are the No.1 in the flood monitoring equipment industry

Standard: The only one company who participates in making the national standard in the hydraulic engineering industry.

Market Share : Our main products have top 3 market share in China and have sold our products to more than 28 provinces, 500 counties.



FAQ

Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on the products?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
