Smart Agriculture 200mm Collector Diameter Stainless Steel Rain Gauge with RS485 Output
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | WS-601SS2 |
| Minimum Order Quantity | 1 piece |
| Price | $128.80 - $149.80/pieces |
| Packaging Details | tipping bucket rain gauge Cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1year | Customized Support | OEM |
|---|---|---|---|
| Name | Tipping Bucket Rain Gauge | Power Supply | Pulse : MaxDC24V,100mA ; RS485: DC5V Or DC 7-24V |
| Output | Standard Pulse(Reed Switch, 5pulse/mm); RS485 Optional | Accuracy | ±≤ 2%(≤ 1mm/min); ±≤ 4% (≤4mm/min) |
| Resolution | 0.2mm | Material | Stainless Steel ( Body, Base) |
| Working Temperature | Temperature -20~80℃ | Collector Diameter | 200mm ±0.3% |
| Rainfall Capacity | ≤ 4mm/min | Height | 402.2mm |
| Port | Beijing |
Product Description
Product Description
WS-601SS2 Stainless Steel Tipping Bucket Rain Guage
Tipping Bucket Rain Gauge was designed for the National Weather Service to provide a reliable, low-cost tipping bucket rain
sensor. It has been update and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge,
providing better accuracy at higher rainfall rates. It simplicity of design assures trouble-free operation , yet provide accurate
rainfall measurement.
sensor. It has been update and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge,
providing better accuracy at higher rainfall rates. It simplicity of design assures trouble-free operation , yet provide accurate
rainfall measurement.
Features
WMO standard bucket’s top diameter (200mm/8”)
High Accuracy
Good stability
Low resistance
Mesh in the funnel preventing debris
Highly polished stainless steel construction
Horizontal Bubble in bottom
High Accuracy
Good stability
Low resistance
Mesh in the funnel preventing debris
Highly polished stainless steel construction
Horizontal Bubble in bottom
Applications
Environmental monitoring
Water supply system
Hydrological monitoring
Natural disaster monitoring
Water supply system
Hydrological monitoring
Natural disaster monitoring
Climate research
Weather monitoring stations
Smart Agriculture
Weather monitoring stations
Smart Agriculture

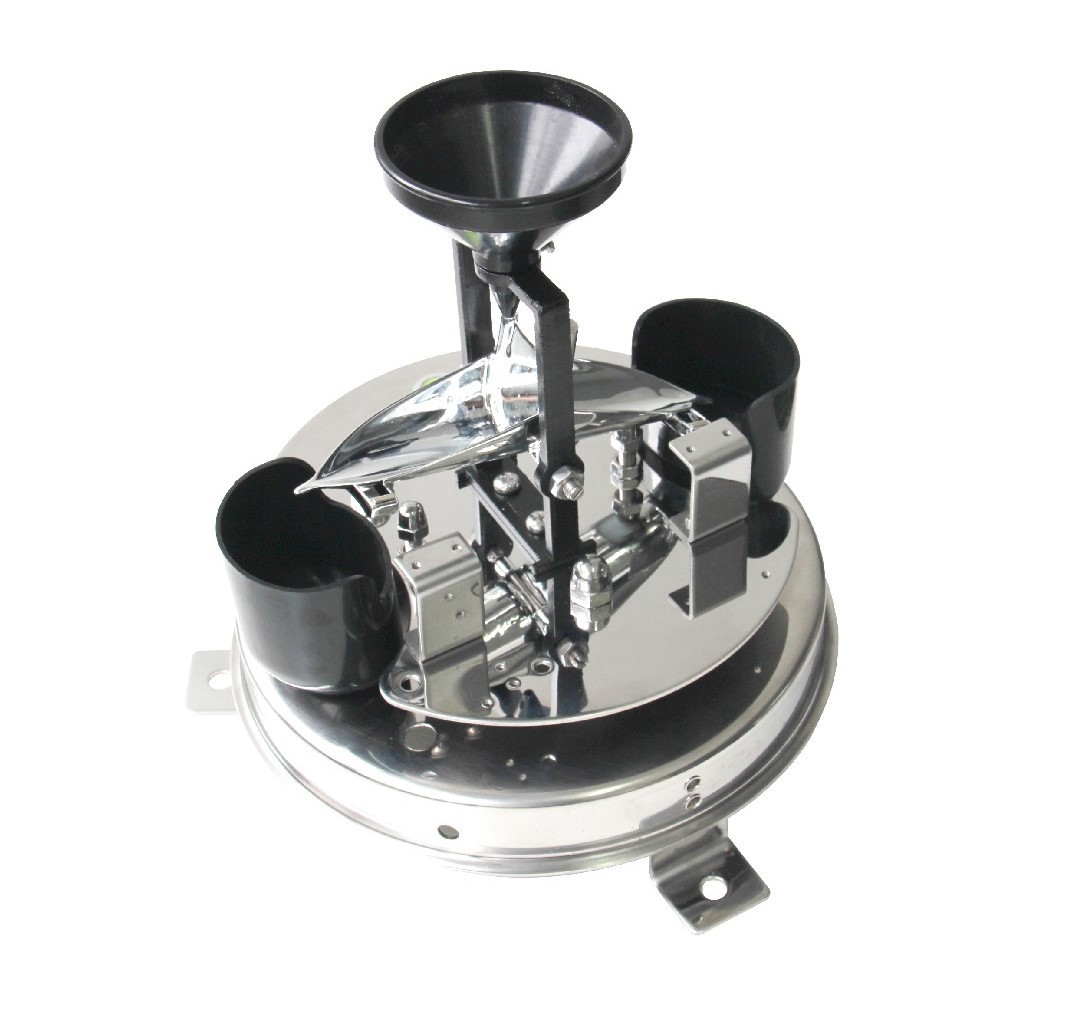

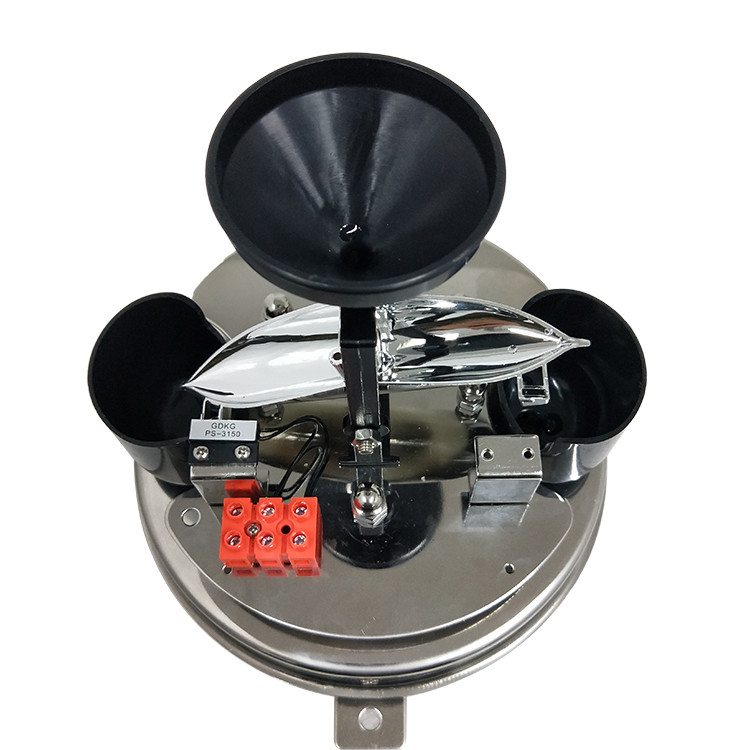

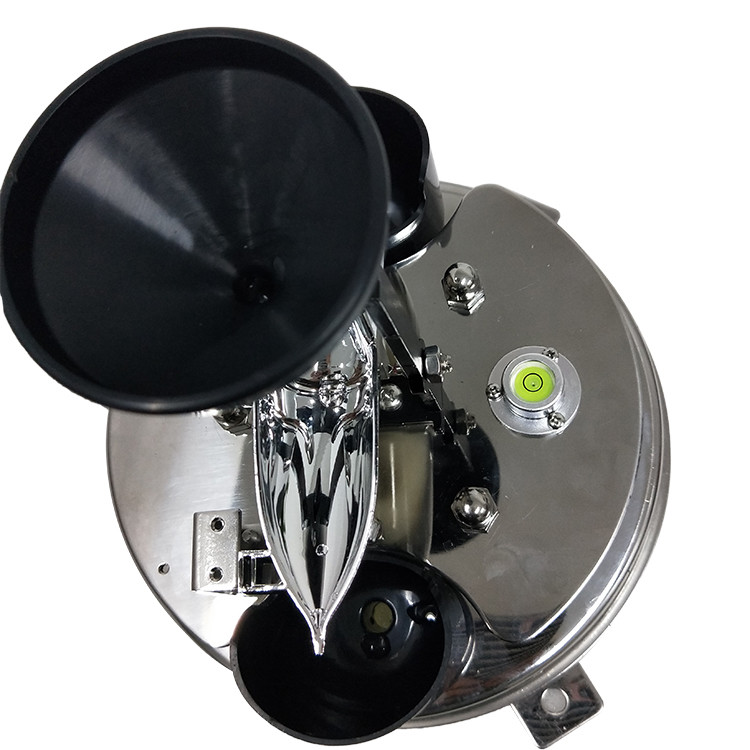

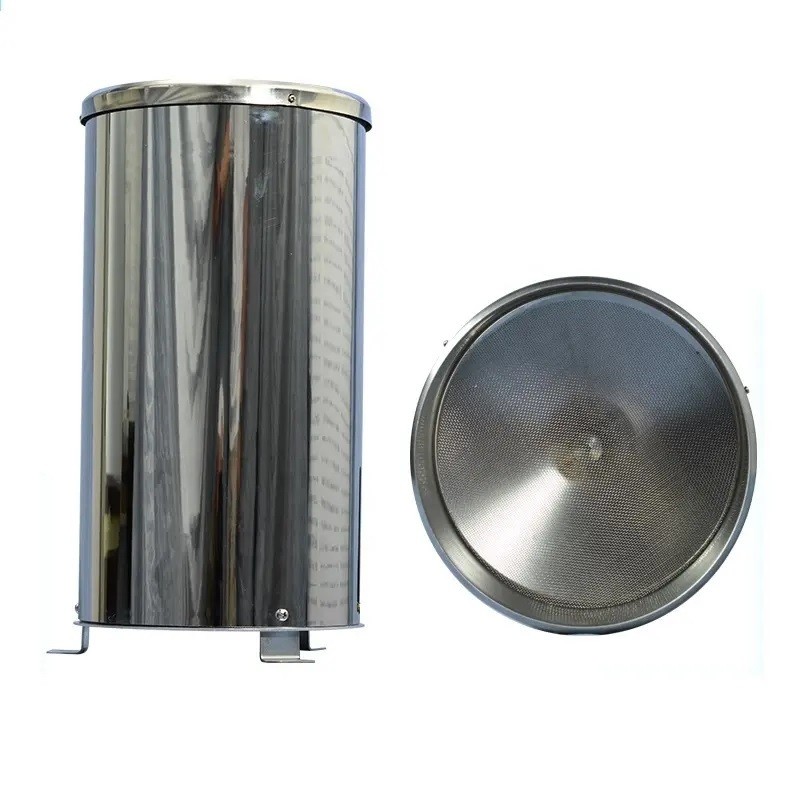

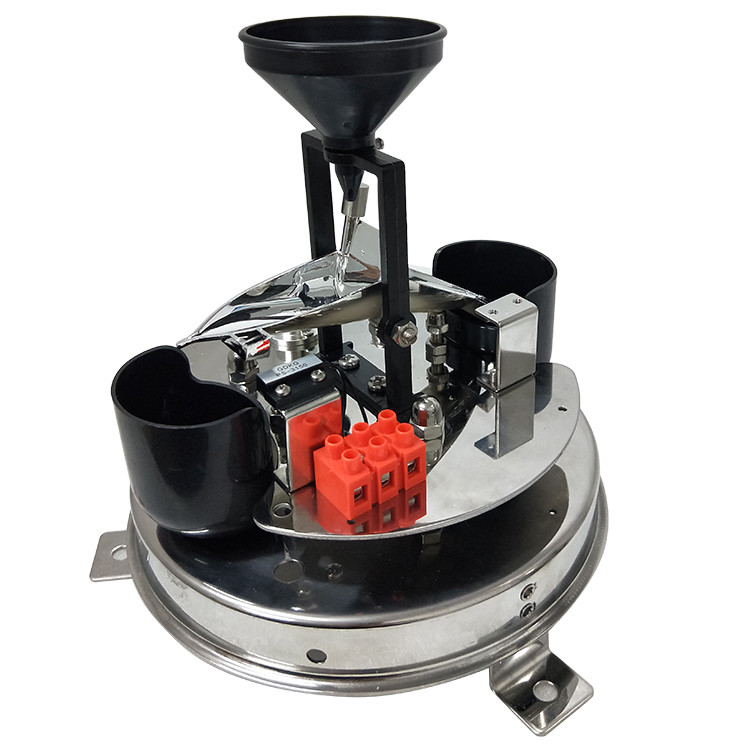

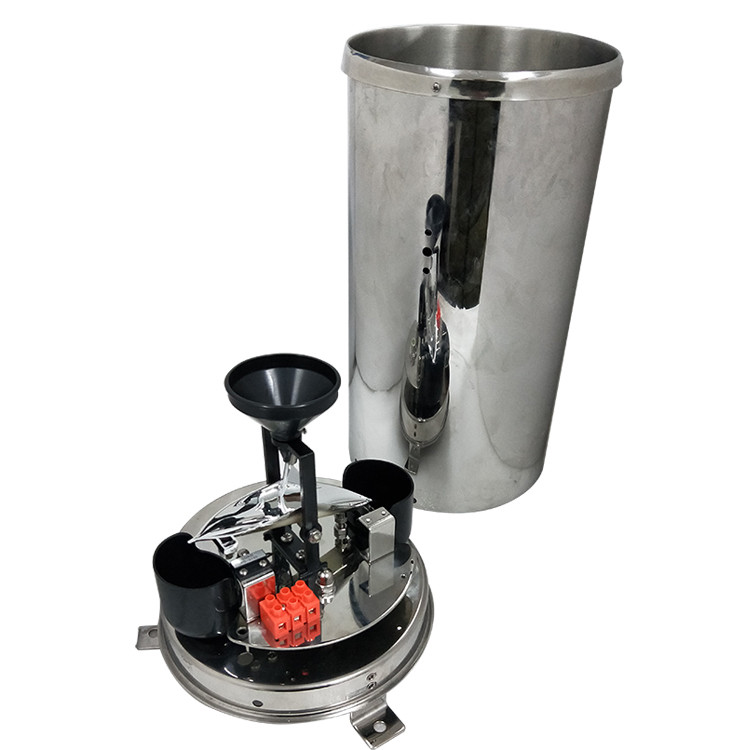

1．Enclosure assembly (Body) 6. Discharge holder
2．Funnel 7. Mounting foot
3．Bracket 8. Bull-eye Level
3．Bracket 8. Bull-eye Level
4．Tips
5．Reed switch
Specification
Type | WS-601SS2 | ||||||
Material | Stainless Steel ( Body, Base) | ||||||
Tips | ABS UV Stabilished plastic bucket | ||||||
Rainfall capacity | ≤ 4mm/min | ||||||
Accuracy | ±≤ 2%(≤ 1mm/min); ±≤ 4% (≤4mm/min); | ||||||
Resolution | 0.2mm | ||||||
Collector diameter | 200mm ±0.3% | ||||||
Collector area | 314cm² | ||||||
Height | 402.2mm | ||||||
Acute angle of cutting edge | 40~45° | ||||||
Output | Standard Pulse(Reed switch, 5pulse/mm); RS485 optional | ||||||
Power supply | Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V | ||||||
Switch | Rugged Magnetic Proximity | ||||||
Leveling | Bulls eye level adhered, leveling screw adjust | ||||||
Debris protection filter | Steel stainless Mesh is provided inside the collector | ||||||
Mounting holes | Three mountings | ||||||
Discharge control | Straight through flow mechanism | ||||||
Working temperature | -20～80℃ | ||||||
Installation
1. Use M6 expansion screws fixed on the ground or plate;
2. Adjust leveling according bull-eye level.
