WS 601 SS2 Meteorological Rainfall Measurement Rain Gauge with Customized Support OEM
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | WS-601SS2, WS-601SS2 |
| Minimum Order Quantity | 1 piece |
| Price | $128.80 - $149.80/pieces |
| Packaging Details | tipping bucket rain gauge weather monitoring stations cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Customized Support | OEM |
|---|---|---|---|
| Product Name | Tipping Bucket Rain Gauge | Material | Stainless Steel ( Body, Base) |
| Resolution | 0.2mm | Rainfall Capacity | ≤ 4mm/min |
| Output | Standard Pulse(Reed Switch, 5pulse/mm); RS485 Optional | Accuracy | ±≤ 2%(≤ 1mm/min); ±≤ 4% (≤4mm/min) |
| Collector Diameter | 200mm ±0.3% | Power Supply | Pulse : MaxDC24V,100mA ; RS485: DC5V Or DC 7-24V |
| Working Temperature | -20~80℃ | Port | Tianjin |
Product Description
Please attention
Product Description
WS-601SS2 Stainless Steel Tipping Bucket Rain Guage
Features
WMO standard bucket’s top diameter (200mm/8”)
High Accuracy
Good stability
Low resistance
Mesh in the funnel preventing debris
Highly polished stainless steel construction
Horizontal Bubble in bottom
Application
Environmental monitoring
Water supply system
Hydrological monitoring
Natural disaster monitoring
Climate research
Weather monitoring stations
Smart Agriculture

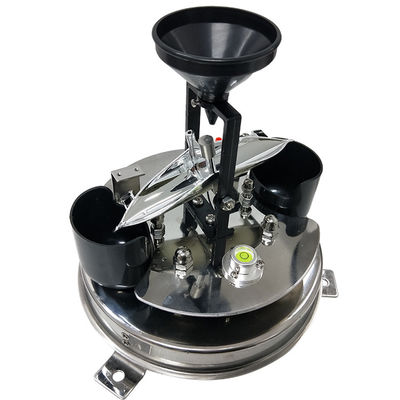

WS-601SS2

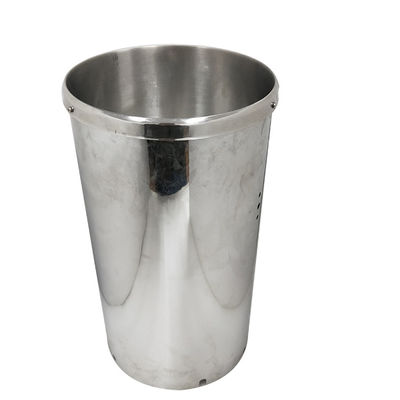

1．Enclosure assembly (Body)
2．Funnel
3．Bracket
4．Tips
5．Reed switch
6.Discharge holder
7. Mounting foot
8. Bull-eye Level
Specification
Type | WS-601SS2 |
Material | Stainless Steel ( Body, Base) |
Tips | ABS UV Stabilished plastic bucket |
Rainfall capacity | ≤ 4mm/min |
Accuracy | ±≤ 2%(≤ 1mm/min); ±≤ 4% (≤4mm/min) |
Resolution | 0.2mm |
Collector diameter | 200mm ±0.3% |
Collector area | 314cm² |
Height | 402.2mm |
Acute angle of cutting edge | 40~45° |
Output | Standard Pulse(Reed switch, 5pulse/mm); RS485 optional |
Power supply | Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V |
Switch | Rugged Magnetic Proximity |
Leveling | Bulls eye level adhered, leveling screw adjust |

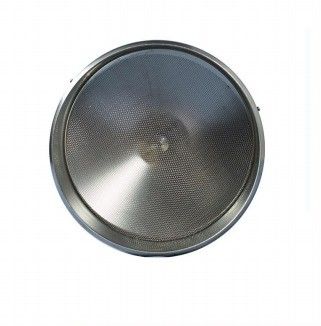

Debris protection filter | Steel stainless Mesh is provided inside the collector |
Mounting holes | Three mountings |
Discharge control | Straight through flow mechanism |
Working temperature | -20～80℃ |
Note:
The price is for standard pulse output. If you need RS485 output, please ask us for updating the price.
Installation
1. Use M6 expansion screws fixed on the ground or plate;2. Adjust leveling according bull-eye level.
Applications
Order process
-- In order to send you the specific quotation, please feel free to tell us the following information:
1. The power supply you required -- We have Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V for your choices.2. The output method.
you required -- We have pulse or RS485 for your choices.
3. The cable length you required -- The standard doesn't include cable. If you need cable, please ask us.
4. The quantity you want to order--Sample is also welcome.
5. Price--EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
you required -- We have pulse or RS485 for your choices.
3. The cable length you required -- The standard doesn't include cable. If you need cable, please ask us.
4. The quantity you want to order--Sample is also welcome.
5. Price--EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
