DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification

Place of Origin China
Brand Name BGT
Model Number BGT-FS1
Minimum Order Quantity 1 piece
Price $66.60/sets 1-9 sets
Packaging Details Cartons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Wind Speed And Direction Sensor Power Supply DC5V;DC9~30V
Output Signal Pulse(wind Speed); Current; Voltage; RS485/RS232; Measuring Range 0~45m/s,0~70m/s; 0°-360°
Resolution 0.1m/s ; 1° Accuracy ±(0.3+0.03V) M/s(V: Real-time Wind Speed); ± 3°
Start Wind Speed ≤0.5m/s Defend Grade IP64
Material Carbon Fiber Cable Length 0.8m
Working Environment -35℃~60℃;≤100%RH, No Condensation
Leave a Message
Product Description
Please Attention
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 0

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 1
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 2

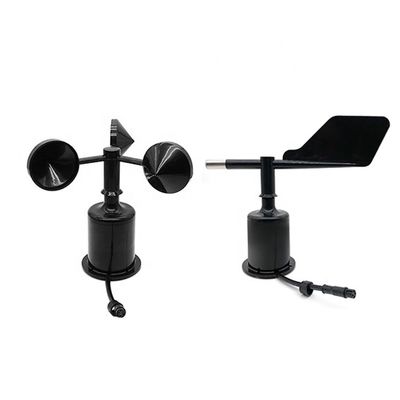

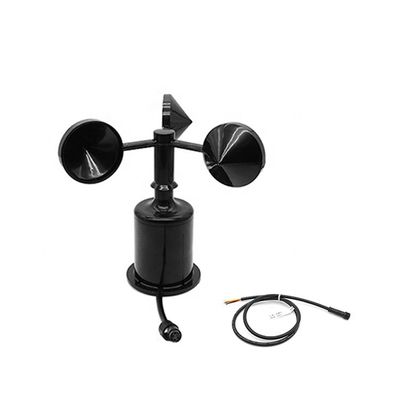

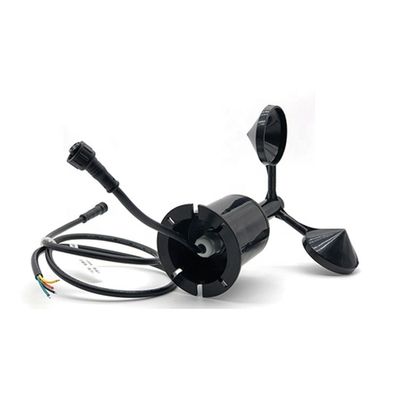

BGT-FS1 Wind Cup Anemometer Wind Speed Meter

Mini type three cup wind speed  sensor is used cup wind as sensing components, which is rotated by wind and drives magnetic steel, the reed switch is working by magnetic steel sensing, output relative electric pulse signals. It's applied in meteorological stations, environmental protection, traffic areas and so on.

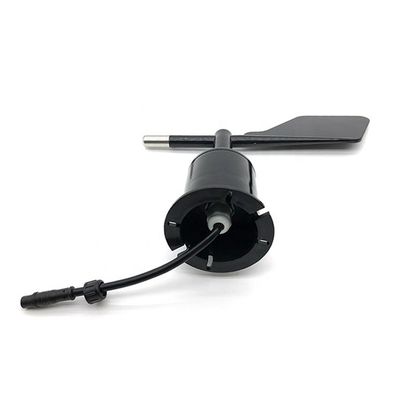

BGT-FX1 Wind Direction Sensor

The interior of the wind direction sensor uses a precision angle sensor, and selects the low inertia ABS wind vane to respond to the wind direction with good dynamic characteristics. The product has the advantages of good linearity, high precision, no dead spots, strong anti-lightning ability, convenient observation, stable and reliable. It can be widely used in the fields of weather, ocean, environment, airports, ports, laboratories, agriculture, industry and transportation.

DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 3
Detailed Images

Nice CE Wind Cup Anemometer Wind Speed Meter Wind Speed Direction Sensor

Measuring Range: □0~45m/s □0~70m/s; 0°~359°
Accuracy : ±(0.3+0.03V) m/s(V: real-time wind speed); ±3°
Resolution :0.1m/s;  1°
Starting wind speed:≤0.5m/s
Power supply mode: □DC5V □DC9-30V
Output:  □Pulse (wind speed sensor);
               □ Current: 4~20mA;0-20mA
               □ Voltage: 0~5V; 1~5V; 0~2.5V
               □ RS232: (□ASCII □ModBus);
               □ RS485: (□ASCII □ModBus)
Cable: □Standard: 0.8m □Other
Operating environment: Temperature -35℃~60℃                                       Humidity≤100%RH, No condensation
Defend grade: IP64
Cable grade: Rated voltage: 300V, 80℃
Material :Carbon fiber
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 4
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 5
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 6
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 7


DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 8
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 9


If you wanna order single sensor, please click at the following picture to make an order.
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 10
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 12
Application
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 14
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 15
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 16
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 17
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 18


Good Feedback from Customers


DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 19
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 20
Company Profile

   Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer.
     We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.

Nice CE Wind Cup Anemometer Wind Speed Meter Wind Speed Direction Sensor
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 21
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 23
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 25
Our Factory
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 27
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 28
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 29
Related Products
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 30
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 32
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 34

Wind sensor

Tipping bucket rain gauge

Solar radiation sensor

DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 36
DC9-30V Power Supply Wind Speed Direction Sensor with ± 3° Accuracy and CE Certification 38

                                   Weather Station                                                                Soil Moisture Sensor

Advantages& FAQ

Why Choose Us


    ◆8 years in hydrology and meteorology wireless communication industry
  ◆Apply in more than 50 countries & areas
  ◆Certificated completed
  ◆Millions of terminals on-line
  ◆Strong R&D team, senior staff more than 60
  ◆Support OEM/ODM cooperation


FAQ


Q1: Are you factory or trading company?

A: Yes, We are factory. We design, develop and produce products all by ourselves.

Q2: Can I have a sample order?

A: Yes, sample order for testing is acceptable before bulk order.

Q3. Do you have any MOQ limit?

A: Low MOQ, any order quantity is welcome.

Q4: What about the lead time?

A:Sample order: 3-5working days; bulk order:15-20 working days

Q5: How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.

Q6: Is it OK to print my logo on the products?

A: Yes, we support OEM/ODM service.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: Can I visit your company before placing orders to you?

A: Yes, warmly welcome to visit our company.

Q9: How is the quality of your goods?

A: We make a commitment to sell excellent quality goods to our customers. Should there be any problems with our products, we can send free replacement in the next order upon picture and video confirmation.

Nice CE Wind Cup Anemometer Wind Speed Meter Wind Speed Direction Sensor
