0.5mm Resolution Stainless Steel Rain Sensor Tipping Bucket Rain Gauge for Monitoring
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | WS-601SS5 |
| Minimum Order Quantity | 1 piece |
| Price | $117.88/sets 1-9 sets |
| Packaging Details | tippng bucket rain gauge cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Customized Support | OEM |
|---|---|---|---|
| Product Name | Tipping Bucket Rain Gauge | Material | Steel Stainless |
| Accuracy | ±≤ 3%(≤ 250mm/hr); ±≤ 4% (≤300mm/hr) | Resolution | 0.5mm |
| Output | Standard Pulse(Reed Switch, 2pulse/mm); RS485 Optional | Power Supply | Pulse : MaxDC24V,100mA ; RS485: DC5V Or DC 7-24V |
| Acute Angle Of Cutting Edge | 40~45° | Working Temperature | -20~80℃ |
| Inner Diameter | 200mm/8inch ±0.3% | Working Humidity | 0%~95%RH |
Product Description
Please attention
Product Description
RS485 Outdoor precipitation rain gauge wireless
The Model WS-601-SS5 Tipping Bucket Rain Gauge (rain sensor) was designed for the National Weather Service to provide a reliable, low-cost tipping bucket rain sensor. It has been update and improved with the additionof an inner funnel to even the flow of the railfall into the gauge, providing better accuracy at higher rainfall rates. It simplicity of esign assures trouble-free opertaion , yet provide accurate rainfall measurement . And this kind of rain gauge also can provide you the data logger feature and temperature.
Features
WMO standard bucket’s top diameter (200mm/8”)
High Accuracy
Good stability
Low resistance
Mesh in the funnel preventing debris
Highly polished stainless steel construction
Horizontal Bubble in bottom
Applications
Environmental monitoring
Water supply system
Hydrological monitoring
Natural disaster monitoring
Climate research
Weather monitoring stations
Smart Agriculture
1. WS-601SS5
Rm. 825, Bldg. A306, Guanganmennei Street, Xicheng Dist., Beijing, China (Mainland)
Tel: 86-10-63205221
Website: Http:// www.bjgxhy.com
Tel: 86-10-63205221
Website: Http:// www.bjgxhy.com

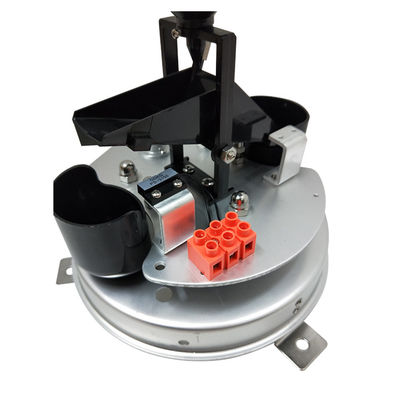

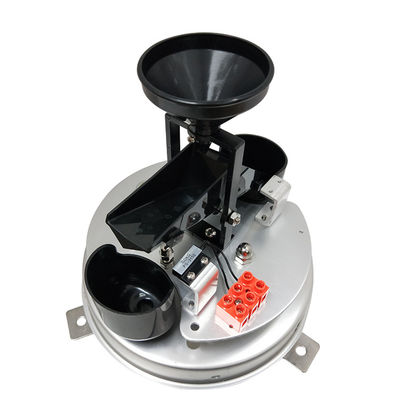

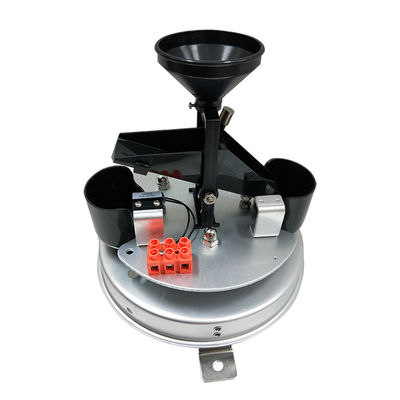

1．Enclosure assembly (Body) 6. Discharge holder
2．Funnel 7. Mounting foot
3．Bracket 8. Bull-eye Level
4．Tips

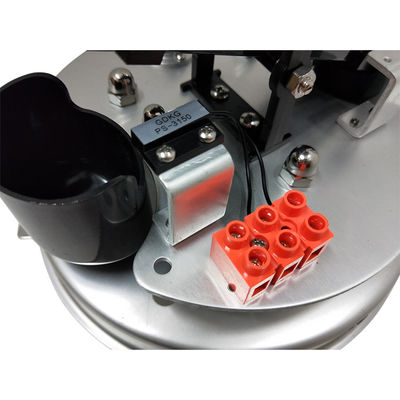

5．Reed switch
Specification
Type | WS-601SS5 |
Material | Steel stainless |
Measuring range | 0~8mm/min |
Accuracy | ±≤ 3%(≤ 250mm/hr); ±≤ 4% (≤300mm/hr); |
Resolution | 0.5mm |
Inner diameter | 200mm/8inch ±0.3% |
Acute angle of cutting edge | 40~45° |

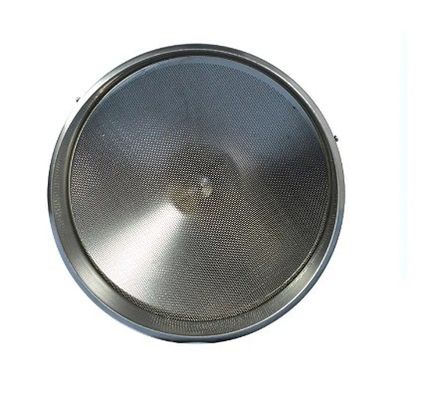

Insect protection | Steel stainless Mesh |
Output | Standard Pulse(Reed switch, 2pulse/mm); RS485 optional |
Power supply | Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V |

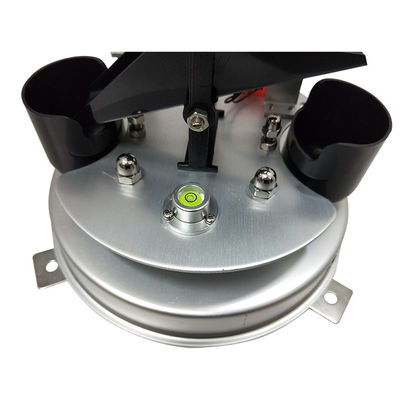

Level control | Bulls eye level adhered |
Base | Diecast aluminium |
Mounting holes | Three mountings |
Discharge control | Straight through flow mechanism |
Working temperature | -20～80℃ |
Working humidity | 0%~95%RH |
Weight | 3.3Kg |
Packing Size | 31*31*46cm |
Applications
