RS485 Weather Station Ultrasonic Wind Speed Direction Sensor for Tunnel and Bridge 4Kg

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

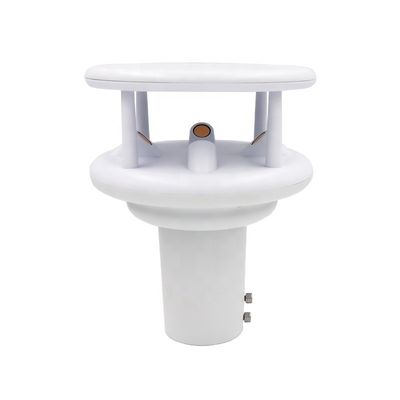

BGT-CF2 Weather station environment monitoring ultrasonic wind speed direction sensor.

_{BGT-CF2 Ultrasonic Wind Speed & Direction Sensor is a testing instrument for measuring wind speed and wind direction by testing the ultrasonic propagation time difference in the air. Compared with the mechanic wind sensors, ultrasonic wind speed & direction sensor is featured with no-ware, long service life, and fast response rate. The product is free maintenance, no need to on-site calibration. It is robust construction with strong anti-corrosion, light weight and easy installation & removal. BGT- CF2 can be widely used in environmental & meteorological monitoring, wind power generation, bridges, tunnels, marine shipping, aviation airports, and other fields.}

KEY FEATURES

1. Integrated design for measuring wind speed and direction;

2. Provide stable and accurate measurement measurement in all weather conditions;

3. Pollution and corrosion resistance;

4. Easy to install and remove;

5. Provide digital and analog signal at the same time;

6. Maintenance-free.

Technical parameters

1. General

IP Class: IP66

Height: 162*220mm
Weight 1.4Kg
Output method: 4-20mA/RS-485 Modbus
Operating voltage: 12-24VDC,50mA typical@ 12VDC
Heating voltage:  5A @ 24VDC
Working environment: -40~+70℃; 5% -100%RH

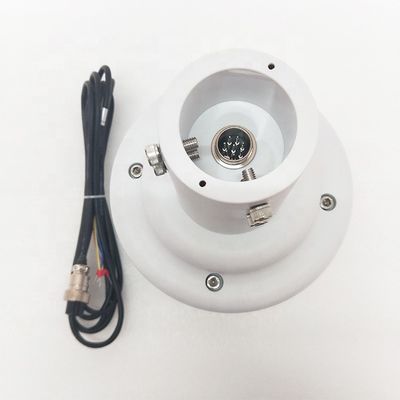

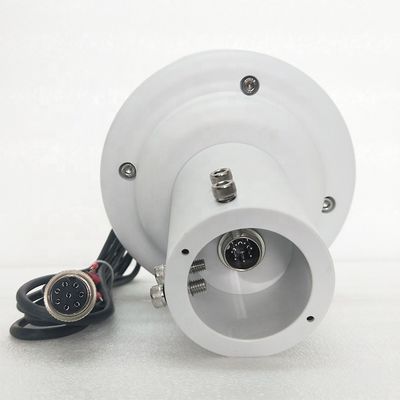

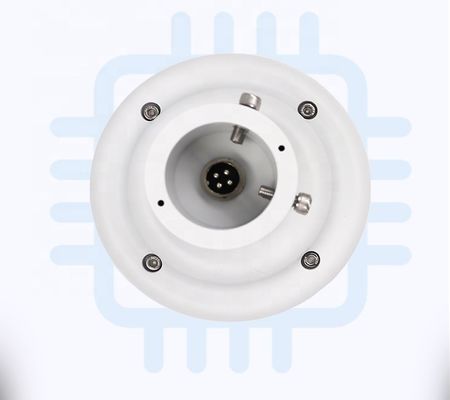

Connector: Aerospace plug

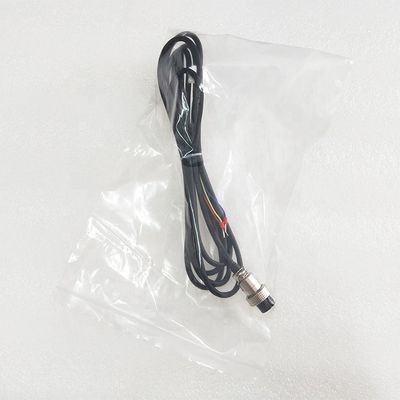

Connection cable: 2m

2. Measuring parameter

Wind Speed

Principle: Ultrasonic

Measurement range: 0-60m/s

Accuracy: ±0.2 m/s or 3% of reading, whichever is greater

Resolution: 0.1m/s

Wind Direction

Principle:Ultrasonic

Measurement range: 0-359.9°

Accuracy: ±3°

Resolution: 0.1°
Weather station environment monitoring ultrasonic wind speed direction sensor
