4-20mA 0-5V RS485 Modbus Anemometer Integrated Wind Speed Sensor for Weather Station
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-FSX1-S |
| Minimum Order Quantity | 1 piece |
| Price | $178.88/sets 2-19 sets |
| Packaging Details | Cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Wind Speed And Direction Sensor | Product Name | Wind Speed And Direction Sensor |
|---|---|---|---|
| Direction | 0-359° | Power Supply | DC 5V , DC 9-30V Others |
| Current | 4~20mA ,0~20mA | Voltage | 0~2.5V , 0~5V, 1~5V |
| Wire Length | Standard:2.5M | Resolution | Wind Speed: 0.1m/s,wind Direction:1° |
| Start Speed | ≤0.5m/s | Max Power Dissipation | 0.9W |
| Protection Level | IP64 |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description

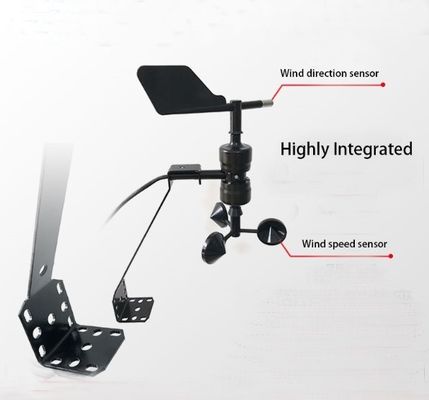

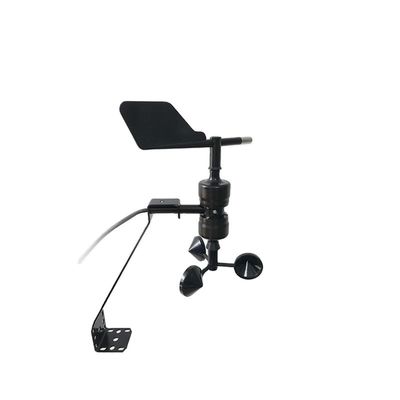

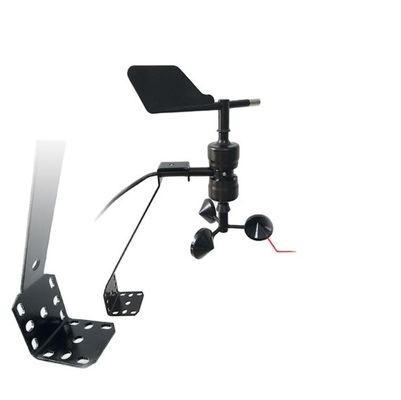

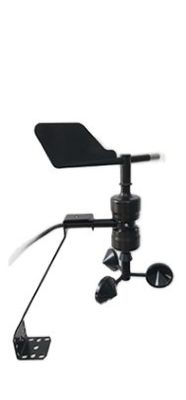

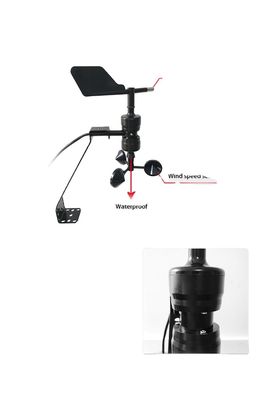

Integrated Wind Speed&Direction Sensor
BGT-FSX1-S Integrated Wind Speed & Direction sensor is the highly integrated product of wind speed and direction.Use Aluminumalloy precision mechanical workpiece assembly,high strength,more convenient installation.
The wind speed part adopts the traditional three-wind cup structure.The wind cup is made of imported ABS material.High intensity,good start.The precision signal processing unit can output various signals according to the user's demand.With largemeasuring range,good linearity, convenient observation, stability and reliability.
The wind direction part is professional meteorological instrument which used to measure horizontal wind direction.Inside use precision sensors.Adopt low inertia wind vane reponse to the wind direction.When the wind direction changing.The tail fin rotaing shaft rod drive sensor magnet.The Angle sensor sensing changes of magnetic pole position.So produce the varying electrial singal output. The linearity is good,precision is high, does not have the blind Angle, observation is convenient, stable and reliable.
Product selection and tachnical parameters
Test Range | Speed | □ 0～45m/s（current and voltage output） | |
□ 0～70m/s（pulse、485、232 output） | |||
□ Others | |||
Direction | 0-359° | ||
Power Supply | □ DC 5V □ DC 9-30V | ||
□Others | |||
Output signal | Speed Pulse | □ Pulse | |
（Default NPNR □PNP） | |||
Current | □ 4～20mA □ 0～20mA | ||
Voltage | □ 0～2.5V □ 0～5V □ 1～5V | ||
Series port | □ RS485（□Default Modbus □ASCII） | ||
□ RS232（□Default Modbus □ASCII） | |||
Others | |||
Wire length | □ Standard：2.5M □ Others： | ||
Installation
Horizontal bottom mounting, wind direction must be up
Horizontal roof mounting,wind direction must be up
Vertical side mounting,wind direction must be up
Bar type installation,wind direction must be up
