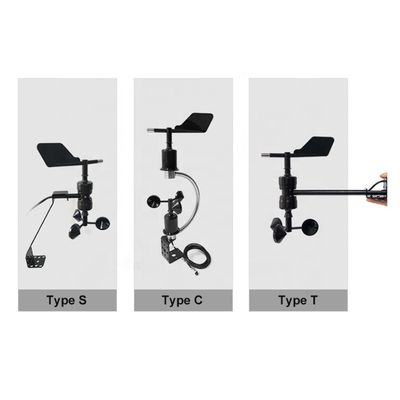

IP64 Protection level BGT DC 5V 0-5V T Type anemometers and vanes for Weather Station
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-FSX1-T |
| Minimum Order Quantity | 1 piece |
| Price | $178.88/sets 2-19 sets |
| Packaging Details | Cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Wind Speed And Direction Sensor | Product Name | Wind Speed And Direction Sensor |
|---|---|---|---|
| Measuring Range | 0~70m/s; 0-359° | Power Supply | DC 5V , DC 9-30V Others |
| Output | 4-20mA, 0~2.5V, 0~5V, RS485, RS232 | Accuracy | ±(0.3+0.03V)m/s;±3° |
| Wire Length | Standard:2.5M | Resolution | 0.1m/s;1° |
| Start Speed | ≤0.5m/s | Max Power Dissipation | 0.9W |
| Protection Level | IP64 |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description

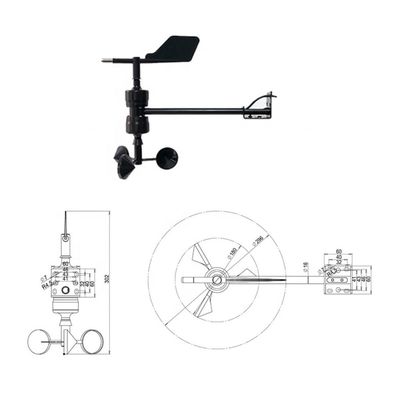

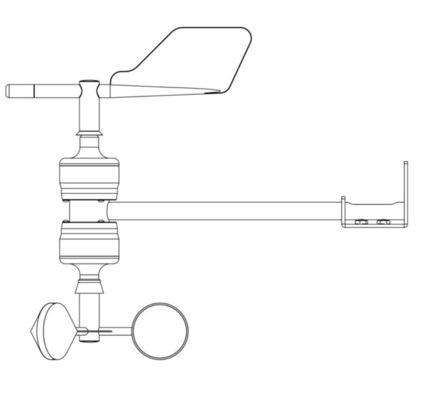

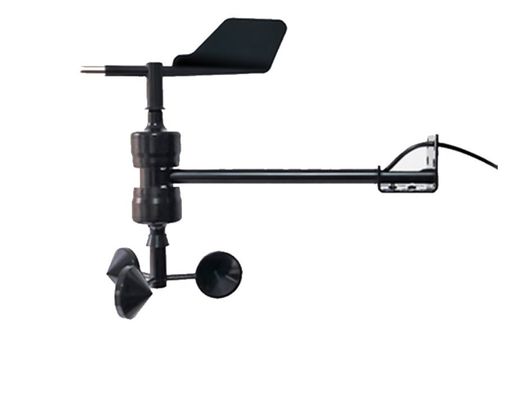

BGT-FSX1-T Integrated Wind Speed&Direction Sensor
BGT-FSX1-T Wind Speed & Direction sensor is the highly integrated product of wind speed and direction sensor, which adopted aluminum alloy precision mechanical workpiece assembly, with high strength, easy to install.
The wind speed part adopts the traditional three-wind cup structure.The wind cup is made of imported ABS material, which has the high intensity and good start-up.The precision signal processing unit can output various signals according to the user's demand.The sensor is with large measuring range, good linearity, convenient observation, stability and reliability.
The wind direction part is professional meteorological instrument which used to measure horizontal wind direction. Inside use precision sensors and adopt a low inertia wind vane to respond to the wind direction.When the wind direction changes, the tail fin rotaing shaft rod drives the sensor magnet.The Angle sensor senses the changes of magnetic pole position, then produce the varying electrial singal output. The sensor has good linearity, high precision, does not have the blind angle, convenient to observe, which is stable and reliable.
It can be widely used in the fields of meteorology, ocean, environment, airport, port, laboratory, industry, agriculture and transportation, etc.
Product selection and tachnical parameters
Test Range | Speed | □ 0～45m/s（current and voltage output） | |
□ 0～70m/s（pulse、485、232 output） | |||
□ Others | |||
Direction | 0-359° | ||
Power Supply | □ DC 5V □ DC 9-30V | ||
□Others | |||
Output signal | Speed Pulse | □ Pulse | |
（Default NPNR □PNP） | |||
Current | □ 4～20mA □ 0～20mA | ||
Voltage | □ 0～2.5V □ 0～5V □ 1～5V | ||
Series port | □ RS485（□Default Modbus □ASCII） | ||
□ RS232（□Default Modbus □ASCII） | |||
Others | |||
Wire length | □ Standard：2.5M □ Others： | ||

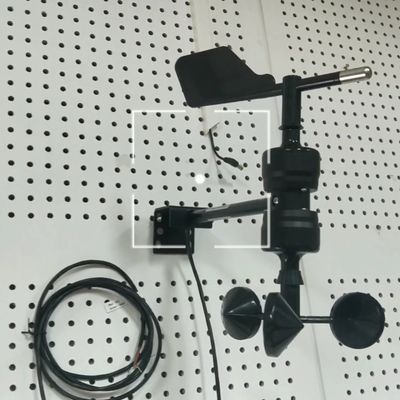

Installation
