CE Certified Digital RS485 Output Aluminium Alloy Anemometer for Weather Station
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Certification | CE |
| Model Number | BGT-FS1 |
| Minimum Order Quantity | 1 piece |
| Price | $36.22/pieces 1-9 pieces |
| Packaging Details | Cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 YEAR | Type | Wind Speed Sensor |
|---|---|---|---|
| Customized Support | OEM | Key Word | Wind Speed Sensor |
| Product Name | High Accuracy Rs485 Output Wind Speed Sensor Anemometer | Measuring Range | RS485:0~70m/s,Voltage:0~32.4m/s |
| Accuracy | +0.3m/s | Start-up Wind Speed | 0.2-0.4 M/s |
| Power Supply | DC5-24V ;DC7-24V | Material | Aluminium Alloy |
| Working Environmental | -40-80℃ | Cable Length | 2.5M |
| Output Signal | Pulse; Current; Voltage; RS485 |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description

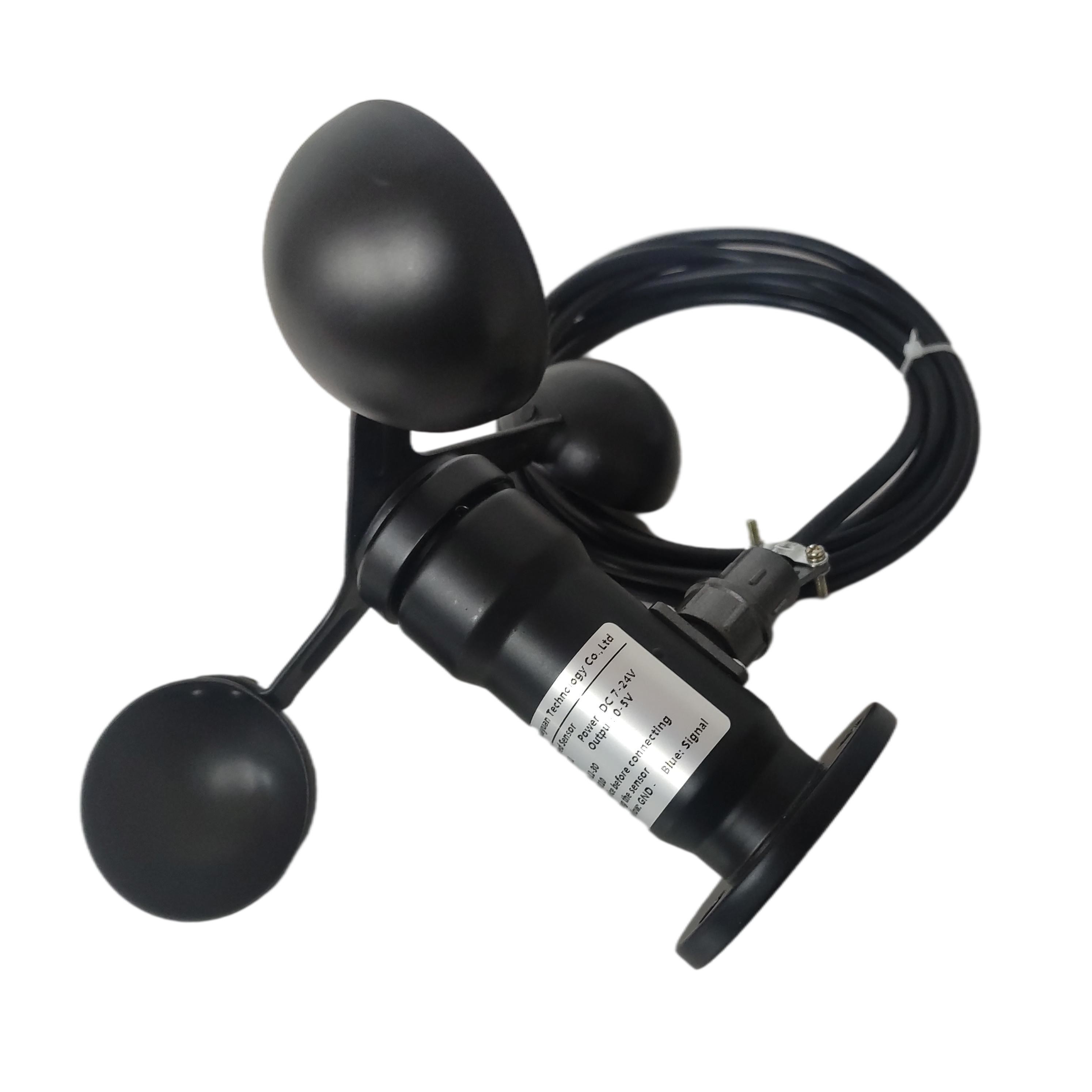

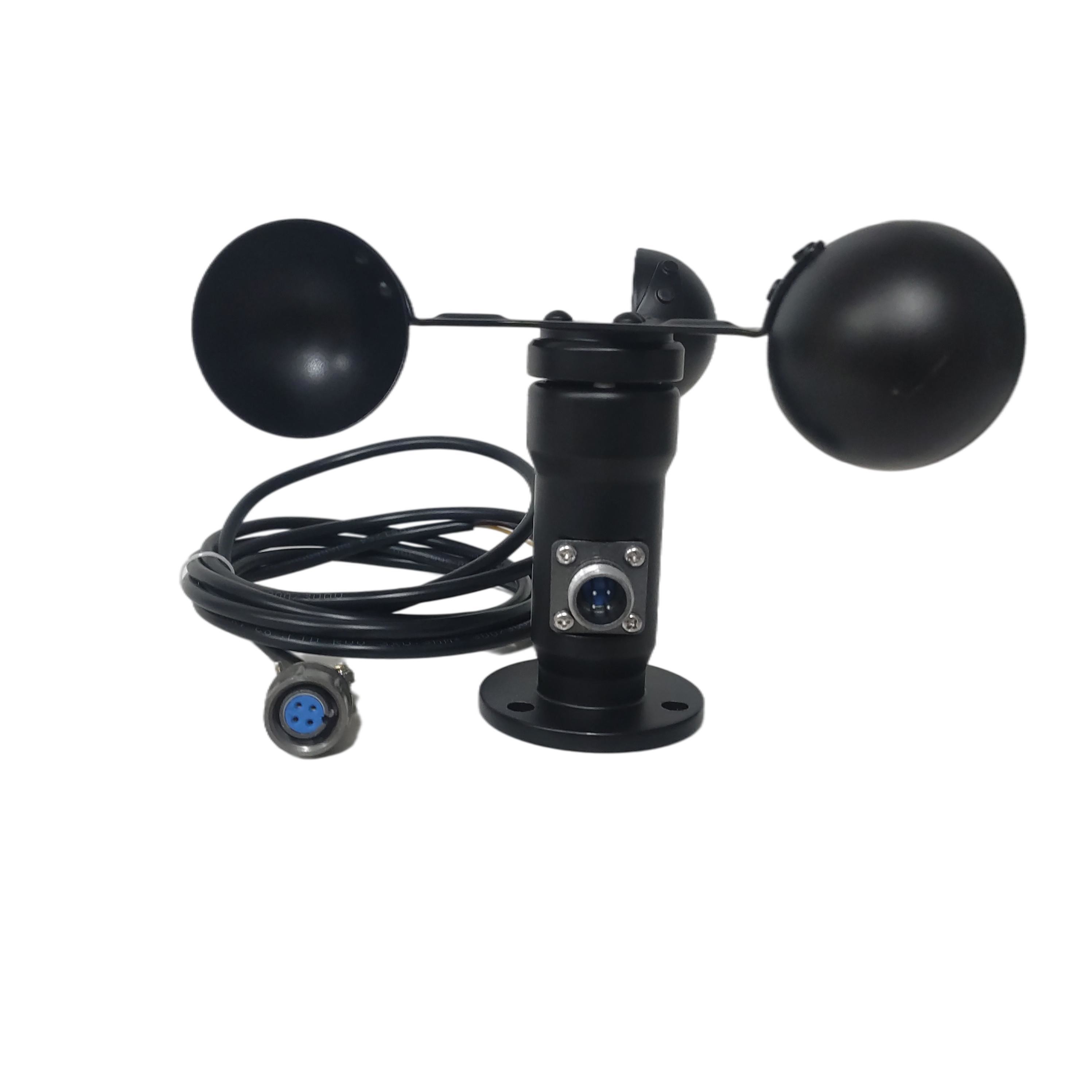

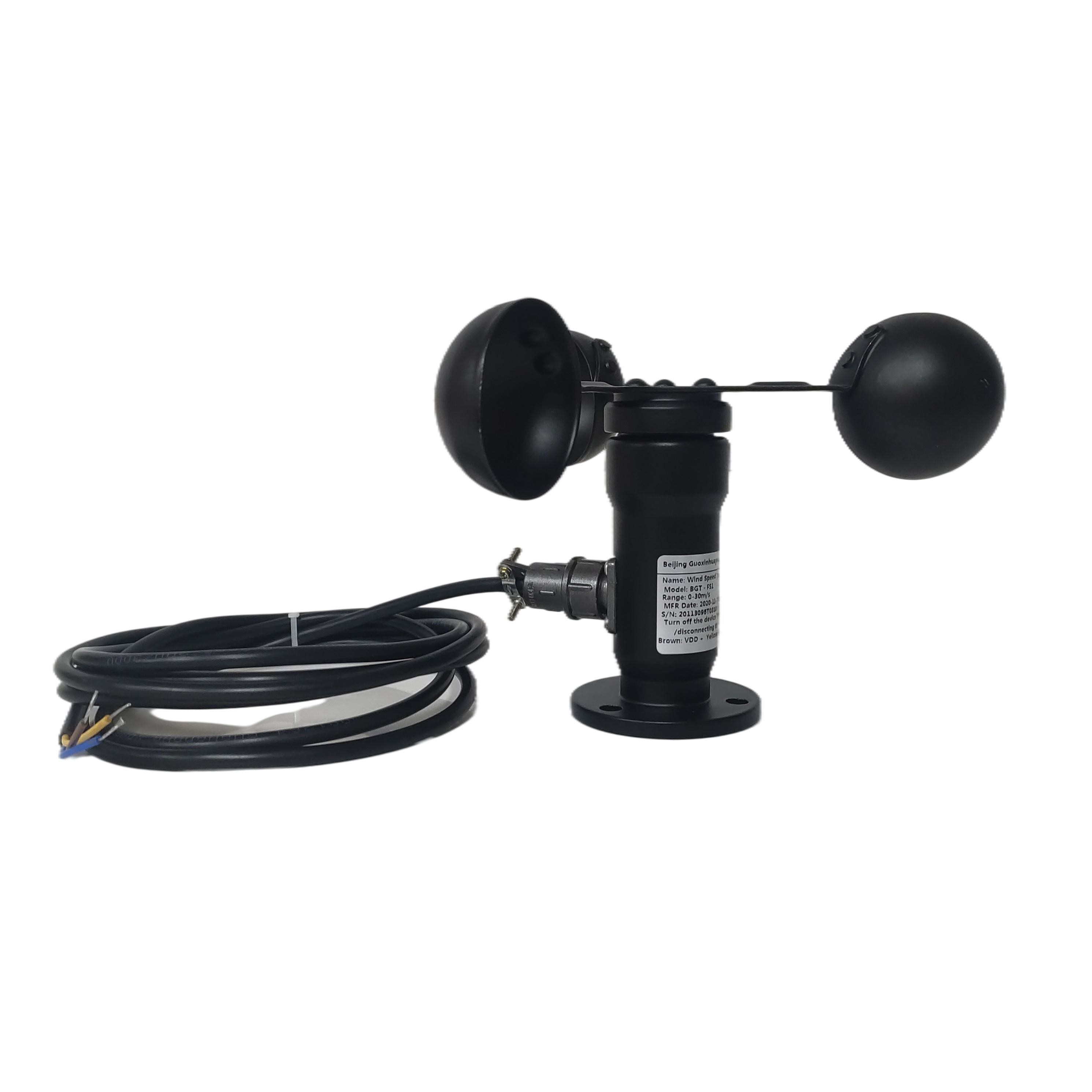

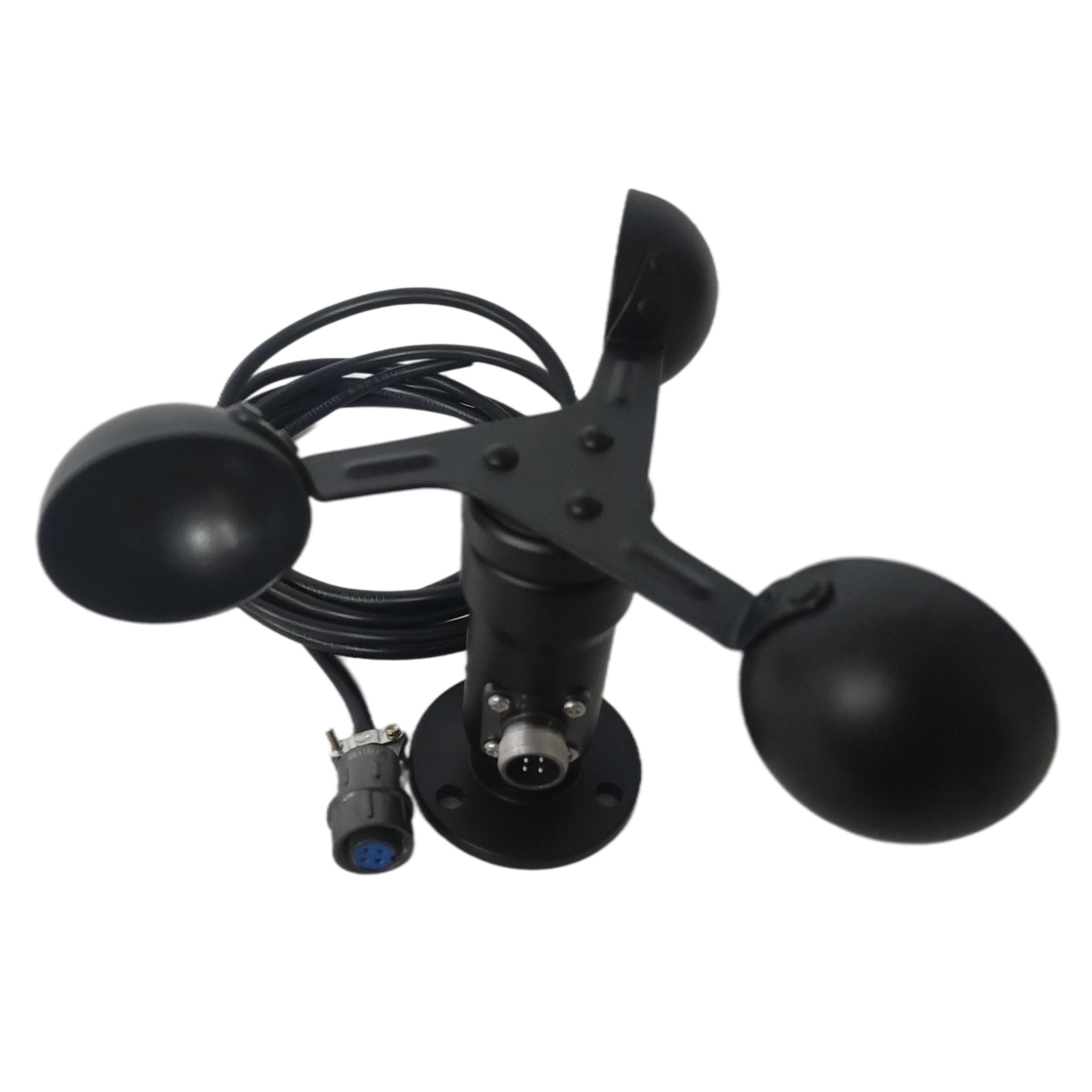

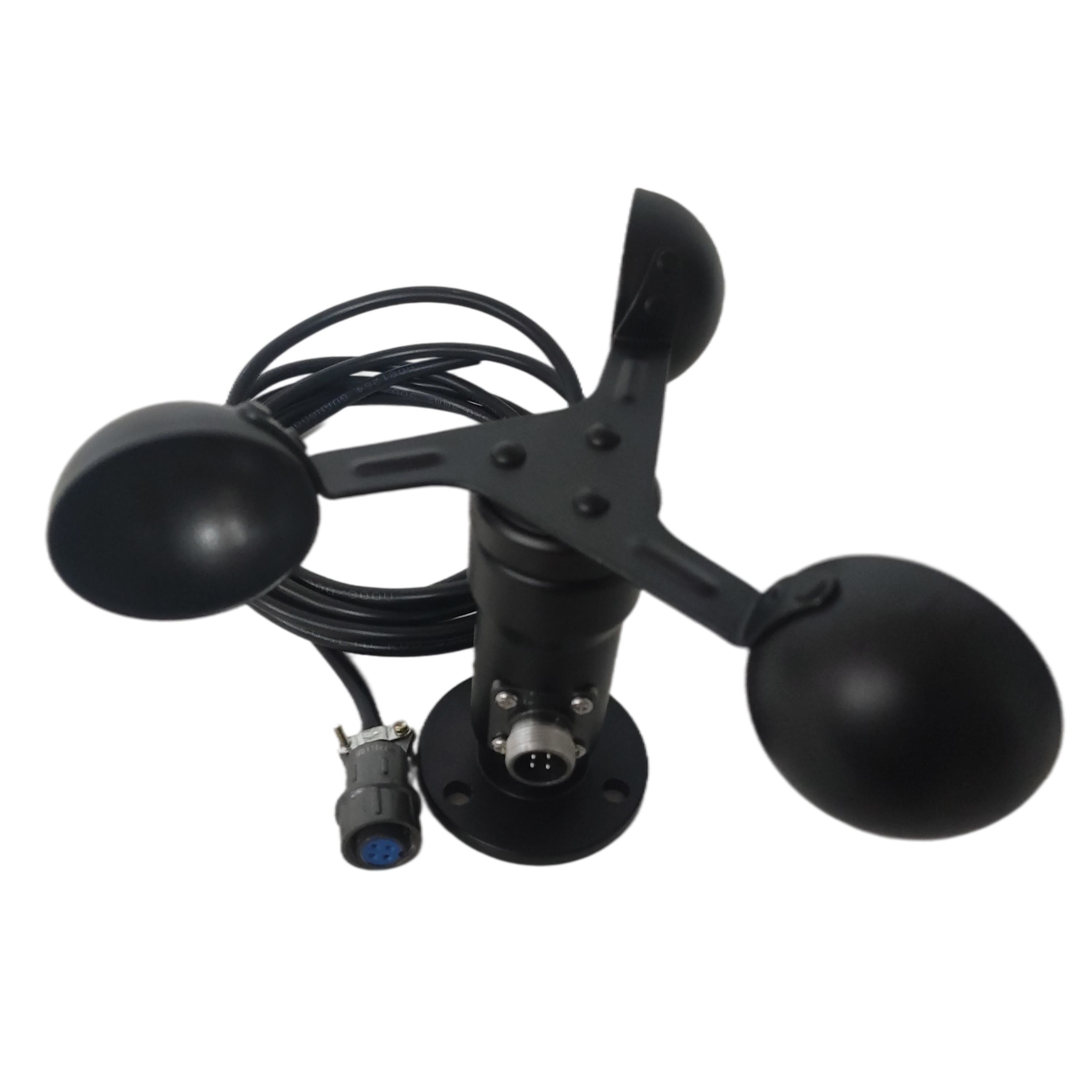

CE certificate RS485 zigbee aluminium alloy three cup anemometer Wind speed velocity sensor for weather station
BGT-FS1 metal type wind speed sensor is developed with advanced circuit module technology. It is simple to operate and easy to
use. It can be used to measure the wind speed of the environment. It can output pulse signal, 0.4-2V voltage or 4-20mA current
signal and RS485 signal according to the demand. It can be widely used in wind speed measurement of greenhouse, environmental
protection, meteorological station, ship, wharf, aquaculture and other environments.
Type | BGT-FS-1 |
Measuring range | □0~32.4m/s(Current,voltage,Pulse output) □0~70m/s(, RS485 output) |
Accuracy | +0.3m/s |
Resolution | 0.1m/s |
Power consumption | 0.48W |
Power supply | □DC7-24V □DC9-24V □DC10-24V □DC3.3-24V |
Output signal | □RS485: (ModBus) Optional： □Pulse: Pulse signal (□NPNR □PNP) □Current: 4~20mA□Voltage: 0.4~2V |
Start wind speed | 0.3m/s |
Ingress Protection | IP64 |
Working temperature | -40℃~80℃ No condensation |
Working humidity | ≤100%RH, No condensation |
Material | aluminium alloy |
Cable Length | 2.5M |
Customization function（if customized please contact us.The quotation is standard one)
Built-in heating system Heating power <25W, choose one of two heating methods 1. The internal integrated temperature sensor
feedbacks the temperature control, and it will automatically turn on when it is below 0 degrees Celsius. 2. Lead out the positive
pole of the heating power supply and connect it to the positive power supply when heating is needed.
feedbacks the temperature control, and it will automatically turn on when it is below 0 degrees Celsius. 2. Lead out the positive
pole of the heating power supply and connect it to the positive power supply when heating is needed.
Features
Compact size, easy to carry and easy to install Aluminum alloy surface spraying, corrosion resistance, high temperature resistance
Imported bearings, low resistance, low starting wind speed
Imported bearings, low resistance, low starting wind speed
High measuring accuracy, wide measuring range and good stability
Reasonable structure design and good appearance quality
Reasonable structure design and good appearance quality
Good linearity of data information, long signal transmission distance andstrong anti-interference ability
Fixed mode
Flange installation method is adopted. Threaded flange connection makes the lower part of the wind speed sensor firmly
fixed on the flange plate, and bolts are used to fix it tightly on the bracket to keep the whole set of instruments at the optimum level to ensure the accuracy of wind speed data. Flange connection is easy to use and can withstand greater pressure.
fixed on the flange plate, and bolts are used to fix it tightly on the bracket to keep the whole set of instruments at the optimum level to ensure the accuracy of wind speed data. Flange connection is easy to use and can withstand greater pressure.
Application wind
It can be widely used in the fields of weather, ocean, environment, airports, ports, laboratories, agriculture, industry and transportation.
