RS485 Weather Station for Comprehensive Weather Monitoring and Data Collection
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-W820 |
| Minimum Order Quantity | 1 piece |
| Price | $2,393.77/sets 1-9 sets |
| Packaging Details | Cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Customized Support | OEM | Key Word | Weather Station |
|---|---|---|---|
| Product Name | High Integration High Appearance Wireless Weather Station Outdoor | Wind Speed | 0-60m/s |
| Wind Direction | 0°~360° | Wind Speed Accuracy | 0-30m/s)±0.3m/s Or ±3%(30-60m/s)±5% |
| Wind Direction Accuracy | ±2° | Humidity | 0-100%RH |
| Temperature | -40-60℃ | Output | RS485, MODBUS Protocol |
| Power Supply | DC12V-24V, Suggest: DC12V |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description

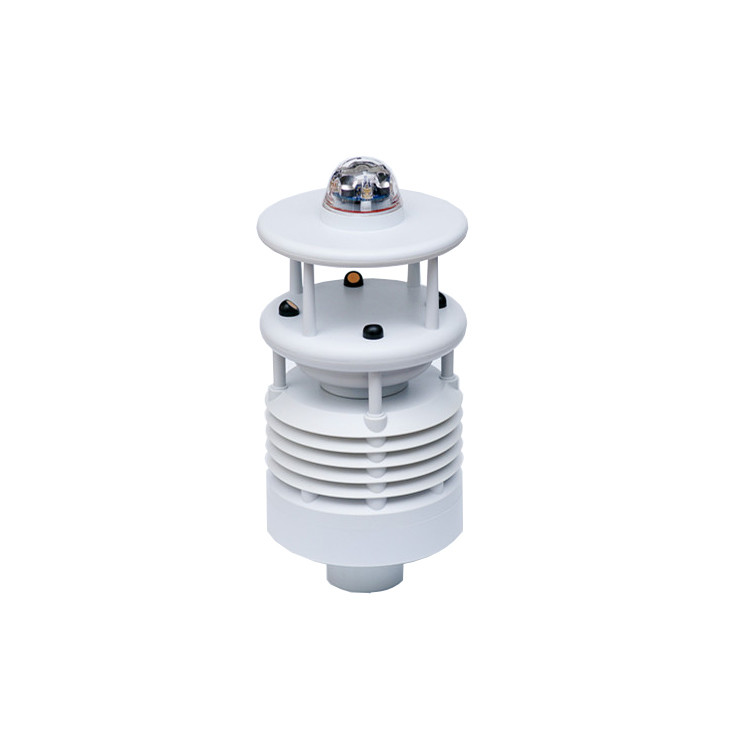

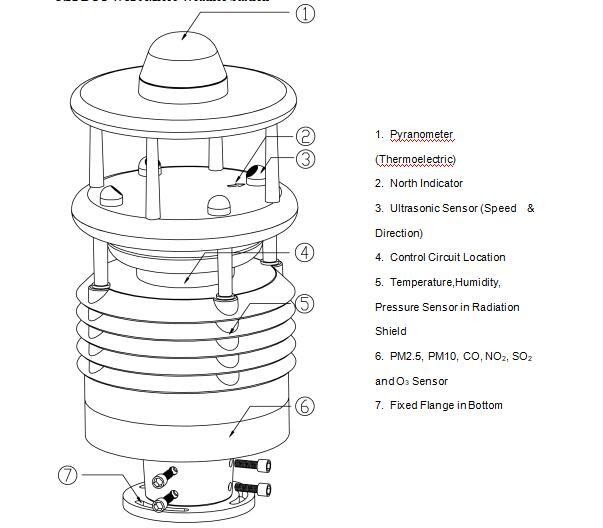

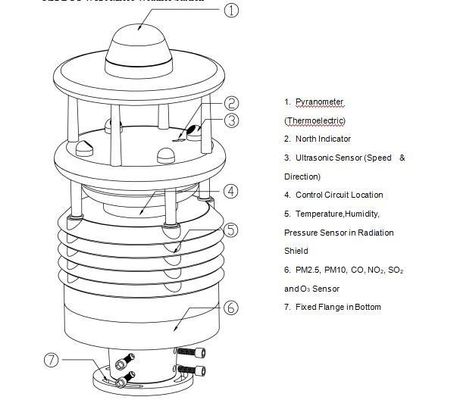

BGT-W820 Weather station integrated sensor
On the basis of advanced sensor technology, the BGT-W800 series micro meteorological station integrates the main meteorological parameter, including Wind direction, Wind speed,Air temperature, Relative humidity, Barometric pressure, Precipitation, Global radiation,Illuminance, UV, PM2.5, PM10, CO, SO2,
CO2, NO2, O3 and Noise. BGT-W800 series have high product integration, high appearance level, easy to install, no need of wiring,can completely replace the traditional patchwork small automatic meteorological environment observation station.
Features
* Adapt to adapt complex weather conditions
* High accuracy, fast response
* Good appearance
* Highly integrated, easy installation
* Solid state,Free maintenance
* ASA engineering plastic cover
Application
* Electric power safety monitoring
* Meteorological monitoring system
*Marine vessels & small airports & helipads
*Environment monitoring
*Bridge & Tunnel
*Agriculture
* Solar and wind generation
Technical parameter
Elements | Range | Resolution | Accuracy |
PM2.5 | 0-1000ug/m³ | 1ug/m³ | ±10%(<500ug) |
PM10 | 0-1000ug/m³ | 1ug/m³ | ±10%(<500ug) |
CO | 0-12.5ppm | ≤10ppb | ±1.5%F.S |
SO2 | 0-2000ppb | ≤10ppb | ±1.5%F.S |
NO2 | 0-2000ppb | ≤10ppb | ±1.5%F.S |
O3 | 0-2000ppb | ≤10ppb | ±1.5%F.S |
Temperature | -40-60℃ | 0.01℃ | ±0.3℃（25℃） |
Humidity | 0-100%RH | 0.01% | ±3%RH |
Speed | 0-60m/s | 0.01m/s | （0-30m/s）±0.3m/s or ±3% |
Direction | 0-360° | 0.1° | ±2° |
Pressure | 300-1100hpa | 0.1hpa | ±0.5hpa（0-30℃） |
Rainfall （Optical） | 0-200mm/h | 0.1mm | ±10% |
Rainfall （Tipping Bucket ） | 0-4mm/min | 0.2mm | ±0.4mm（≤10mm）或±4%（＞10mm） |
Illuminance | 0-100klux | 10lux | 3% |
Radiation | 0-2000W/M2 | 1W | 3%(thermoelectric) 5%(photoelectric) |
Noise | 30-130dB | 0.1dB | 10% |
UV | 0-15 | 1 | / |
CO2 | 0-5000ppm | 1ppm | ±40ppm |
TVOC | 0-10ppm | 1ppb | ±5%F.S |
Other Specifications:
Item No. Elements | BGT- W817B | BGT- W818 | BGT- W818B | BGT- W818C | BGT-W818E | BGT- W818V | BGT-W820 |
PM2.5 | √ | √ | √ | √ | √ | √ | √ |
PM10 | √ | √ | √ | √ | √ | √ | √ |
CO | √ | √ | √ | ||||
SO2 | √ | √ | √ | ||||
NO2 | √ | √ | √ | ||||
O3 | √ | √ | √ | ||||
Temperature | √ | √ | √ | √ | √ | √ | √ |
Humidity | √ | √ | √ | √ | √ | √ | √ |
Pressure | √ | √ | √ | √ | √ | ||
Speed | √ | √ | √ | √ | √ | ||
Direction | √ | √ | √ | √ | √ | ||
Rainfall | √ | √ | |||||
Illuminance | |||||||
Radiation | √( thermo-electric) | ||||||
Noise | √ | √ | √ | ||||
UV | √ | √ | |||||
TVOC | √ |
Quick Selection
BGT-W817A Weather Station
BGT-W817B Online Dust Monitoring Station
Application
Agricuture
Meteorological monitoring system
Electric power safety monitoring
Environment monitoring
Bridge & Tunnel
Solar and wind generation
Marine vessels & small airports & helipads
Company Profile
Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer. We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.
