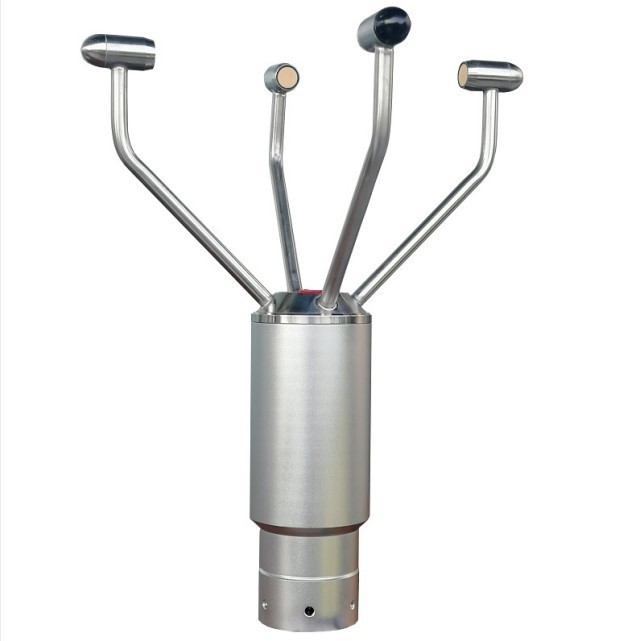

Advanced Stainless Steel Ultrasonic Anemometer for Wind Speed and Direction
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Certification | CE |
| Model Number | BGT-CF2 |
| Minimum Order Quantity | 1 piece |
| Price | $1,499.92/sets 1-49 sets |
| Packaging Details | Cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Type | Ultrasonic |
|---|---|---|---|
| Customized Support | OEM | Key Word | Ultrasonic Wind Speed Direction Sensor |
| Product Name | Professional Ultrasonic Anemometer | Wind Speed | 0-70m/s |
| Wind Direction | 0°~369° | Wind Speed Accuracy | ±2% |
| Wind Direction Accuracy | ±3 | Humidity | 0-100%RH |
| Temperature | -40℃ - +70℃ | Output | SDI12 Or RS485 |
| Power Supply | DC7-30V |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description
Stainless steel Auto Heating RS485 SDI12 Output 2 in 1 Ultrasonic Anemometer Wind Speed and Direction Sensor for Weather Station
BGT-CF2 ultrasonic anemometer has advantage of robust,no moving parts, free of maintenance and calibration on site, simultaneously output wind speed and direction. BGT-CF2 can be used in conjunction with a PC, data logger or other device, which has compatible communication protocol with it. BGT-CF2 can integrate optional modules to meet customers’ requirement without changing its appearance.
Typical Applications Highway Meteorology Oil drilling platform Waterway Harbour Wind power plant Automatic meteorological station Key features No moving or wearing parts Using engineering plastic or aluminum alloy shell make it lighter Stainless steel, robust, afnti-corossive Using acoustic phase compensation technology, precision is higher
Other Specifications:
Power Supply | DC：5-30V | ||||||
Material of Body | stainless steel | ||||||
Operating Temperature | -40℃ - +70℃ | ||||||
Communication Protocol | SDI-12 or RS485 | ||||||
Power Consumption | Wind measurement：DC7-30V（20mA@12V） Heater: DC12-30V(<2A@24V) | ||||||
Principle | Range | Accuracy | Resolution | ||||
Wind Speed | Ultrasonic | 0-70m/s | ±2% | 0.01m/s | |||
Wind Direction | Ultrasonic | 0-359° | ±3° | 1° | |||
Digital output | Interface | RS232/RS485/SDI-12 | |||||
Baud rate | 9600(default) 1200-19200(configurable) | ||||||
Frequency | Standard: 1Hz (1 output per second) Customized:5Hz(5 outputs per second) | ||||||
protocol | ModBus-RTU/NMEA 0183/SDI-12 | ||||||
Analogue output (current output is optional) | Two ways 4-20mA Max.load 500Ω | ||||||
Protection grade | IP66 | ||||||
Operating Temperature | -40℃ - +70℃ | ||||||
Operating Humidity | 0 - 100% | ||||||
Application
Agricuture
Meteorological monitoring system
Electric power safety monitoring
Environment monitoring
Bridge & Tunnel
Solar and wind generation
Marine vessels & small airports & helipads
