0-5V Output Method 2.5m Cable Length Solar Radiation Sensor for Photovoltaic Industry
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-TBQ |
| Minimum Order Quantity | 1 piece |
| Price | $267.90/pieces 1-9 pieces |
| Packaging Details | Carton |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mounting Type | Bracket | Description | Solar Radiation |
|---|---|---|---|
| Brand | Pyranometer | Sensitivity | 7~14μV/w.m-2 |
| Spectral Range | 0.3-3μm | Measuring Range | 0 ~ 2000W/m2 |
| Power Supply | DC5V/12V/24V (optional) | Response Time | ≤ 35 S (99%) |
| Stability | ≤ ± 2% | Output Method | 0-5V, 4-20mA, RS485/RS232(optional) |
| Working Temperature | -40 ° C ~ +50 ° C | Cable Length | 2.5m |
| Weight | 1.6kg |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Introduction
0-5V or 4-20mA anolog output solar radiation sensor pyranometer photovoltaic industry
BGT-TBQ total radiation sensor uses pyroelectric sensor principle, used in conjunction with various radiation the total solar radiation, the reflected radiation, scattered radiation, infrared radiation, visible light, ultraviolet radiation, long wave radiation.
Core inductive element of the sensor, using winding plating multi-contact thermopile, its surface is coated with the black coating of the high absorption rate. The hot junction is located in the body, hot and cold contacts to generate thermoelectric power. Within the linear range, in proportion to the output signal and solar irradiance.
The double glass is in order to reduce the impact of the air convection radiation table, the inner cover is set in order to cut off the infrared radiation of the nacelle itself.

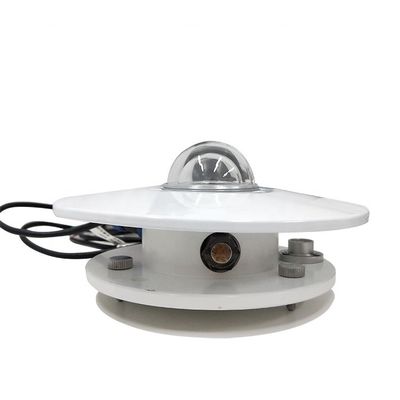

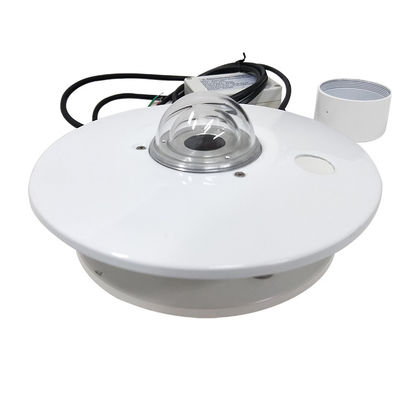

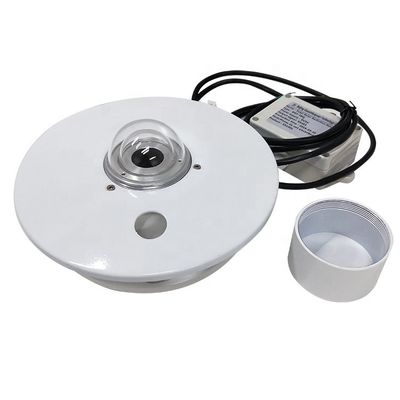

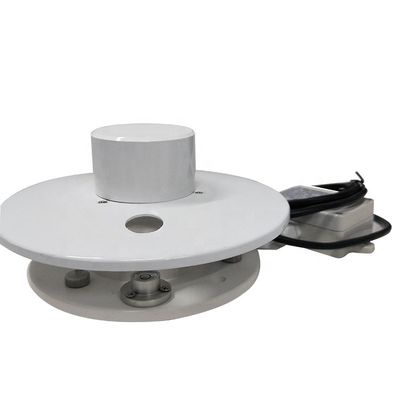

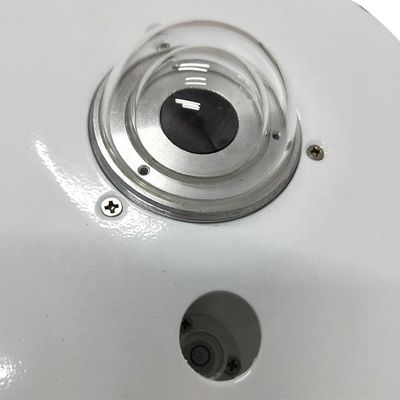

Product Details Show
Product Parameters
Type | BGT-TBQ |
Sensitivity | 7~14μV/w.m-2 |
Spectral range | 0.3-3μm |
Measuring range | 0 ~ 2000W/m2 |
Power supply | DC 5V/12V/24V |
Output method | 0-5V, 4-20mA, RS485/RS232 |
Cable length | 2.5m |
Response time | ≤ 35 s (99%) |
Working temperature | -40 ° C ~ +50 ° C |
Stability | ≤ ± 2% |
Weight | 1.6kg |
Company Profile
Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer. We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.
0-5V,4-20mA Sensor for pyranometer measuring solar radiation meter

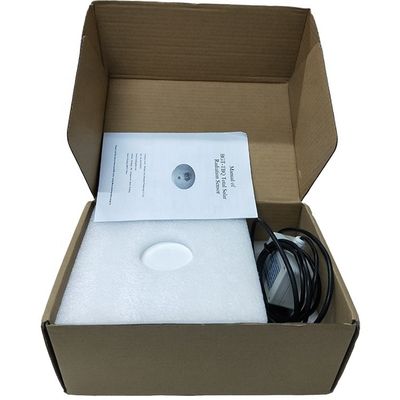

Produce &Package
