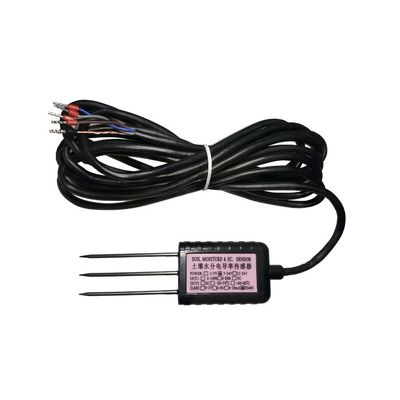

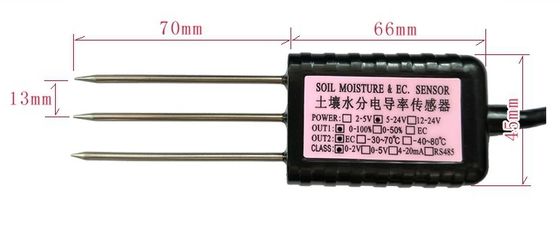

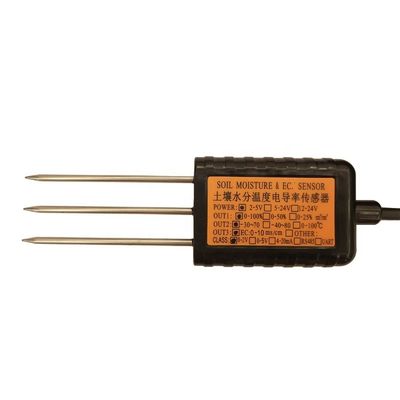

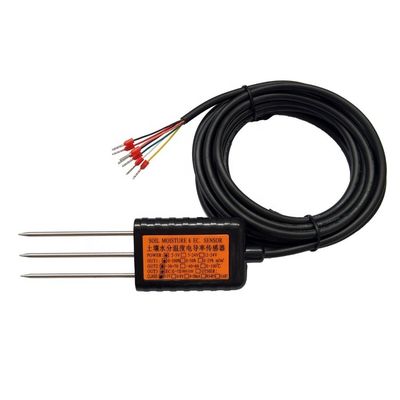

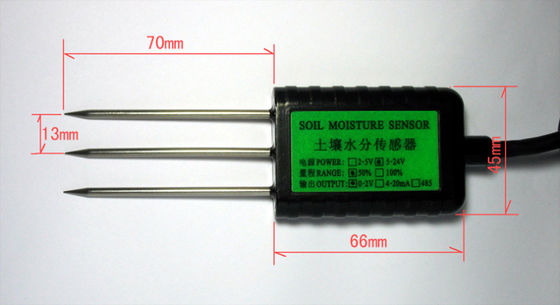

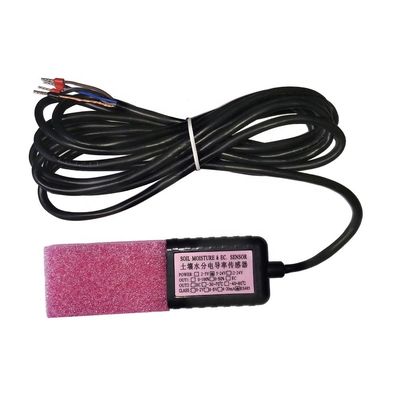

CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-SEC |
| Minimum Order Quantity | 1 piece |
| Price | $78.96/pieces 1-9 pieces |
| Packaging Details | Box |
| Supply Ability | 100000 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mounting Type | Insert Into Soil | Description | Soil Sensor |
|---|---|---|---|
| Application | Soil Test | Product Name | UART 2-5V 3 In 1 Soil Moisture & Temperature & EC Sensor |
| Key Word | Soil Ec Sensor | Working Voltage | 2-5V, 3.3V |
| Response Time | <1 S | Protection Level | IP68 |
| Working Temperature Range | -40℃~85℃ | Measuring Range Mositure | 0-100.00% |
| Accuracy Mositure | ±3%(0-53%);±5%(>53%) | EC (Conductivity) | 0-20000uS/cm (25℃) (0-20.0EC) |
| Resolution Moisture | 0.01% | Port | Tianjin |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description
Industrial volumetric water content MODBUS-RTU RS485 UART 2-5V 3 in 1 Soil Moisture & Temperature & EC Sensor for farm
The new developed soil moisture temperature EC three-in-one sensor is a soil sensor developed with a new technical scheme, whichcan measure soil moisture, temperature and conductivity at the same time, and carry out compensation calculation among parameters,eliminating the influence of conductivity on water, temperature on water and temperature on conductivity, can perform compensation operation and accurate evaluation.
This product can be used to measure the moisture content of saline-alkali land, which is not affected by the salt content of soil and can accurately measure the moisture content of soil.
It adopts imported epoxy resin, high quality stainless steel, more resistance to acid and alkali corrosion, steel needleisolation, never electrolysis, with more than 3 years of service life.
With the multi-directional function of power line, ground line and signal line, can prevent the damage caused by reverse
connection, wrong connection and so on.
Features
▶ Three 316L Needle Probe
▶High Stability High Accuracy
▶ Fast Response
▶ Easy Installation▶ Directly Buried in Soil
▶ Widly Application
Application
● Agriculture irrigation
● Green house
● Grass farm
● Environment monitoring
● Water conservation
● Soil testing
▶ Widly Application
Application
● Agriculture irrigation
● Green house
● Grass farm
● Environment monitoring
● Water conservation
● Soil testing
Technical parameter
Parameters of the category | Moisture | EC (Conductivity) | Temperature |
Measuring range | 0-100.00% | 0-20000uS/cm (25℃) (0-20.0EC) | -40.00℃～85.00℃ |
Unit | V/V %,Volumetric moisture content of soil | uS/cm, Micro Siemens/cm | ℃ centigrade degree |
Resolution | 0.01% | 1 uS/cm | 0.01℃ |
Accuracy | ±3%（0-53%）；±5%（>53%） | 2%FS, 2% of the value | Error < 0.3℃（-10℃～50℃）others <0.6℃ |
Swap precision | < 3% | < 2%FS | < 0.3℃ |
Repetition measurement error | < 2% | < 2%FS | < 0.2℃ |
Response time when powered | 1 s | 1 s | 1 s |
Measured stability time | < 2 s | < 2 s | < 2 s |
Measurement principle | Frequency domain (FDR) add temperature and conductivity correction | Conductivity measurement, plus temperature compensation | RTD Thermal sensor, plus nonlinear correction |
System Frame Diagram
Application
Company Profile
Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company with R&D, production, marketing, project implementation and after sales. We are focus on providing professional hydrology and meteorology monitoring device and technical service, and developed a series of flood early warning system products by ourselves, which owning more than 50 patents and 60 software copyrights. Then our product line is including monitoring products, communication products, early warning products and cloud platform. However, our products have been sold to more than 30 countries, such as Australia, Japan, Sri Lanka and so on. Especially our tipping bucket rain gauge is doing well in foreign countries. Meanwhile, our products are covered all provinces in China and we have Guangxi/Guangdong/Hunan/Hubei/Qinhai branches.
We are devoted to solving the flood disaster problems for human beings and becoming one of the famous brands in the flood early-warning industry. Welcome to contact us.Hot sale industrial universal water tank level pressure sensor
EXS&CES
Realated Products
Advantages& FAQ
Why Choose Us
◆8 years in hydrology and meteorology wireless communication industry
◆Apply in more than 50 countries & areas
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation
FAQ
Q1. Can I have a sample order ?
Hot sale industrial universal water tank level pressure sensor
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Hot sale industrial universal water tank level pressure sensor
Q2. What about the lead time?
Hot sale industrial universal water tank level pressure sensor
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3. Do you have any MOQ limit?
Hot sale industrial universal water tank level pressure sensor
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Hot sale industrial universal water tank level pressure sensor
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
Hot sale industrial universal water tank level pressure sensor
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Hot sale industrial universal water tank level pressure sensor
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Hot sale industrial universal water tank level pressure sensor
