Resolution PM2.5/PM10 CO NO2 SO2 O3 Meteorological Station for Industrial Applications
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-W818 |
| Minimum Order Quantity | 1 piece |
| Price | $1,698.20/pieces 1-9 pieces |
| Packaging Details | Cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Integrated Type, BGT-W818 | Key Word | Air Quality Station Sensor |
|---|---|---|---|
| Measuring Elements | Tem, Humi, PM2.5 PM10 CO NO2 SO2 O3 | Power Supply | DC12V/24V |
| Output Signal | RS485 (Modbus Protocol) | Measuring Range | PM2.5/PM10:0~1000μg/m3; Temperature:-40~60℃;Humidity:0~100%RH |
| Accuracy | PM2.5/PM10:±10% OR ±10μg/m3,Temperature:±0.3℃ Humidity:±3%RH | Resolution | PM2.5/PM10:1μg/m3,Temperature:0.01 ℃ Humidity:0.01%RH |
| Cable Length | 3M | Response Time | ≤120s |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description
2020 BGT Professional Temperature Humidity Air Quality Monitor PM2.5 PM10 CO NO2 SO2 O3 Weather Station Sensor

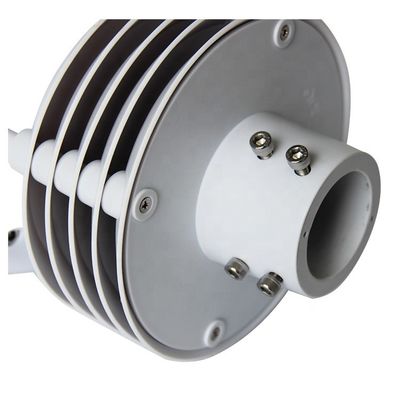

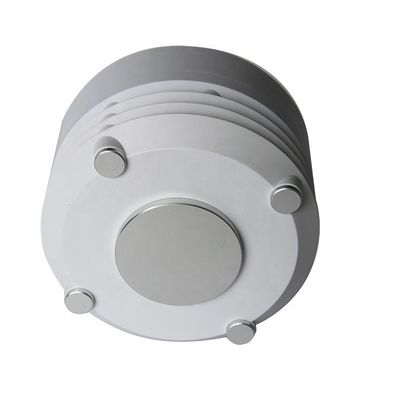

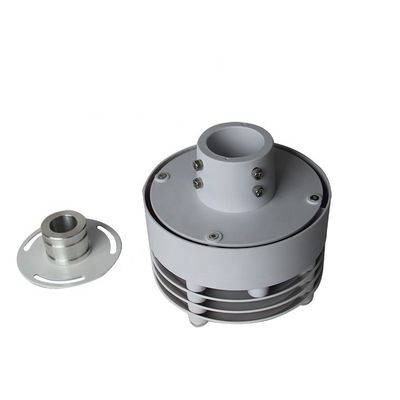

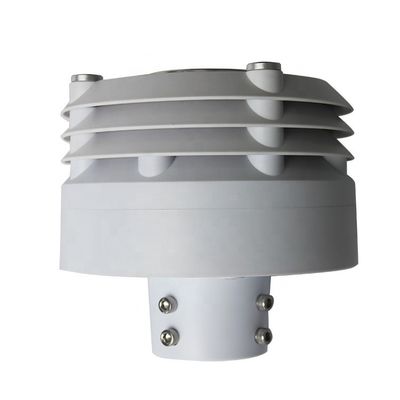

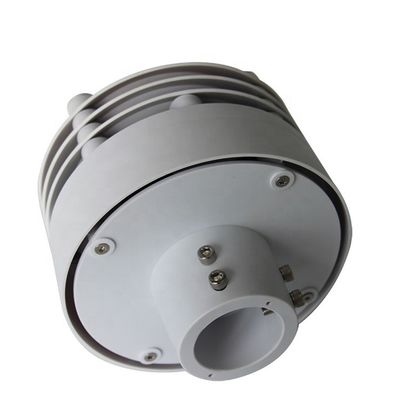

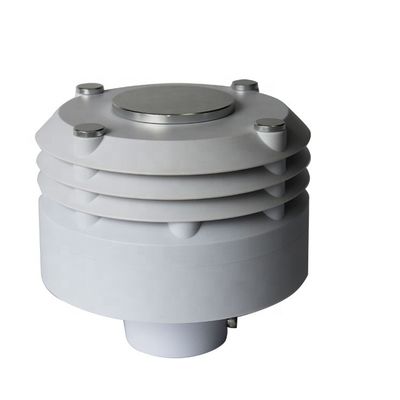

BGT-W818 Air quality sensor (Outdoor type) is an instrument for monitoring six pollutant parameters including PM2.5, PM10, CO, SO2, NO2 and O3, as well as air temperature and relative humidity.The main function is to monitor the conventional pollution factors in the air for 24-hour continuous online. In addition, hydrogen sulfide, volatile organic pollutants, total suspended particulate matter and other meteorological sensors (wind speed, wind direction, atmospheric pressure, rainfall, solar radiation) can be optional.
Detailed Images
Product | BGT-W818 Air quality sensor | ||||
Type | BGT-W818 | ||||
Measuring Range | PM2.5/PM10:0~1000μg/m³; Temperature:-40~60℃; Humidity:0~100%RH; CO:0-12.5ppm SO2: 0-2000ppb NO2: 0-2000ppb O3: 0-2000ppb | ||||
Resolution | PM2.5/PM10:1μg/m³; Temperature:0.01 ℃; Humidity:0.01%RH; CO:≤10ppb SO2: ≤10ppb NO2: ≤10ppb O3: ≤10ppb | ||||
Accuracy | PM2.5/PM10:±10%(<500ug) Temperature:±0.3℃; Humidity:±3%RH; CO: ±1.5%F.S SO2: ±1.5%F.S NO2: ±1.5%F.S O3: ±1.5%F.S | ||||
Power supply | DC12V/24V | ||||
Output | RS485 Modbus communication protocol | ||||
Cable Length | Standard: 3M | ||||
PM minimum resolution particle size | 0.3μm | ||||
Working current | DC12V <80mA(485) ;DC12V <100mA(current) | ||||
Power Consumption | DC12V <1W(485) ;DC12V<1.2W (current) | ||||
Response time | ≤120s | ||||
PM laser life | PM laser life | ||||
Operating environment | Temperature: -40 ~ 70℃,Humidity: 0 ~ 90%RH | ||||
The farthest lead | Current:200 meters, RS485:100 meters,Voltage:50 meters | ||||
Ingress Protection | IP65 | ||||
Application
BGT-W818 Air quality sensor can be applied to:
* Urban grid environment monitoring and control
* Smart street lights
* Scenic spot environment monitoring
* Factories or mines
* Construction sites (site dust monitoring)
* Urban roads, highways, public places and other places involved in air quality monitoring.
Company Profile
Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company with R&D, production, marketing, project implementation and after sales. We are focus on providing professional hydrology and meteorology monitoring device and technical service, and developed a series of flood early warning system products by ourselves, which owing more than 50 patents and 60 software copyrights. Then our product line is including monitoring products, communication products, early warning products and cloud platform. However, our products have been sold to more than 30 countries, such as Australia, Japan, Sri Lanka and so on. Especially our tipping bucket rain gauge is doing well in foreign countries. Meanwhile, our products are covered all provinces in China and we have Guangxi/Guangdong/Hunan/Hubei/Qinhai branches.
We are devoted to solving the flood disaster problems for human beings and becoming one of the famous brands in the flood early-warning industry. Welcome to contact us.BGT-W818 Air quality sensor
Produce &Package
Advantages& FAQ
Why Choose Us
◆8 years in hydrology and meteorology wireless communication industry
◆Apply in more than 50 countries & areas
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation
FAQ
Q1: Are you trading company or manufacturer?
A: We, Beijing Guoxinhuayuan Technology Co., Ltd is manufacturer for hydrological and meteorological products and solutions established in 2010.
Q2. Can I have a free sample for testing?
A: Sample order is acceptable, but need you to pay for the product cost and freight .
Q3. What about the lead time?
A: Sample needs 4-5 working days after receiving your payment, mass production needs extra 4-5 working days.
Q4: Is it OK to print my logo on the products?
A: Yes, we support OEM/ODM service.
Q5: Do you offer guarantee for the products?
A:Yes, we offer 1 year warranty to our products.
Q6: Can I visit your company?
A: Yes, warmly welcome to visit our company.
Q7. Do you have certifications?
A: Yes, we have ISO9001, ISO 14001, OHSAS18001, CE, etc.
Q8: How is the quality of your goods?
A: We make a commitment to offer products with good apperance and nice quality to customers. If there is some questions for the product, we have after-sale team to serve you. And we offer 1 year warranty.
