Agriculture RS485 FDR Zigbee Soil Moisture Temperature Sensor for Optimal Plant Health
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-SM1 |
| Minimum Order Quantity | 1 piece |
| Price | $54.92/pieces 1-9 pieces |
| Packaging Details | Box |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Agriculture | Product Name | Soil Temperature Humidity Sensor |
|---|---|---|---|
| Measured Refresh Time | <1 S | Working Voltage | 2-5V(Max 6V), 5~24V(Max 26.7V) |
| Response Time | <0.1 S | Protection Level | IP68 |
| Working Temperature Range | -40℃~85℃ | Measuring Range Mositure | 0-50% (BGT-SM1-50) 0-100.00% (BGT-SM1-100) |
| Accuracy Mositure | ±3%(0-53%);±5%(>53%) | Cable Length | Standard 3.5m |

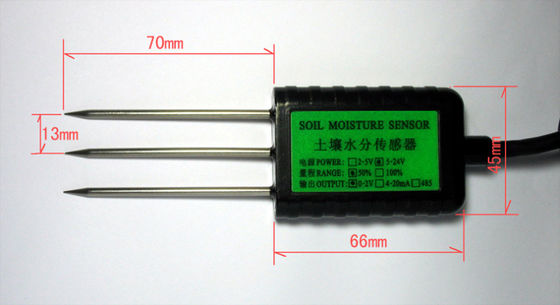

| Probe Length | 7cm |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description

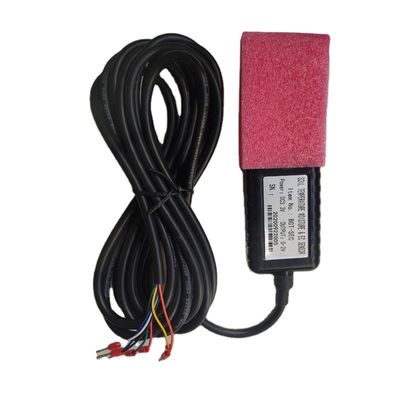

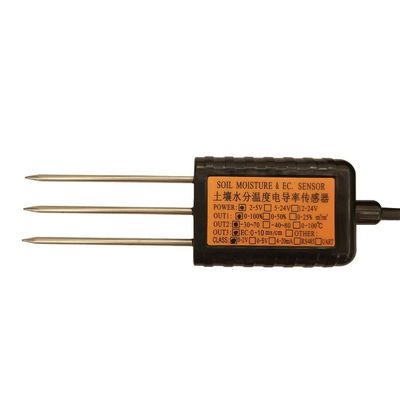

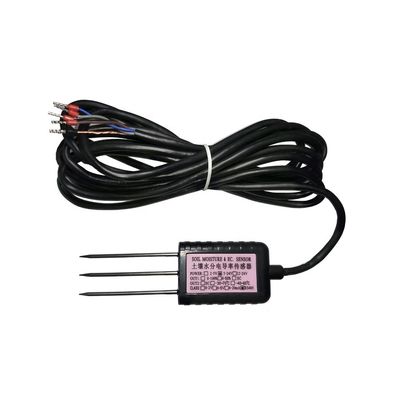

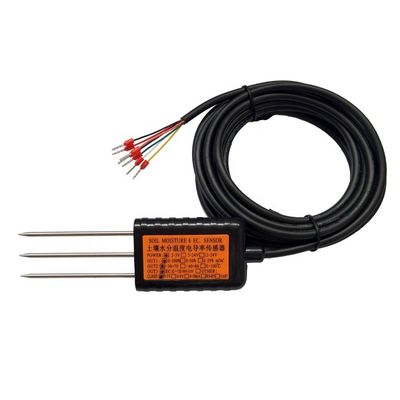

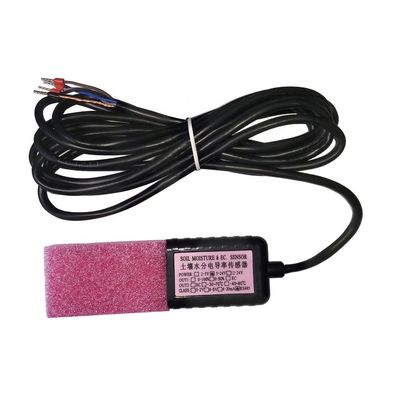

BGT-SM1 soil temperature and moisture sensor
The new developed BGT-SM1 soil temperature and moisture sensor which adopts imported epoxy resin, high quality stainless steel,more resistance to acid and alkali corrosion, steel needle isolation, never electrolysis, with more than 5 years of service life.With the multi-directional function of power line, ground line and signal line, can prevent the damage caused by reverse
connection, wrong connection and so on.
With high measuring precision, reliable performance, less affected by soil salt content, can adapt to all kinds of soil.
Application: It is suitable for scientific experiment, water-saving irrigation, greenhouse, flowers and vegetables, grassland andpasture, soil rapid measurement, plant culture, sewage treatment, grain storage and measurement of water content and temperatureof various particles.
Technical parameter
※ Working voltage：2-5V(Max 6V), 5～24V(Max 26.7V)
(For the current type,
The minimum working voltage (V) = (sampling resistance +100) *0.02+3.7V)
※ Output signal: Voltage output: 0～2V、0-3.3V、0-5V、0-10V
Current output: 4-20mA (Current signal load adjustment rate<0.004%/Ω)
Linearized signal output
※ Internal resistance of output signal source, voltage type: 0Ω
※ Quiescent current：peak value <30mA，Average<10mA
※ Working frequency: 100MHz
※ Response Time：＜0.1 s
※ Measured refresh time：＜1 s
※ Protection level：IP68
※ Working temperature range：-40℃～85℃（When measuring the frozen permafrost, the water value will be too low and inaccurate, which needs to be compensated and adjusted by the user）
※ Measurement area：center on the central probe in a cylinder with a diameter of 7cm and a height of 10cm
※ Cable length：standard 3.5m (RVVP4*0.3 /UL2464-5*22AWG), can be customized
※ Working voltage：2-5V(Max 6V), 5～24V(Max 26.7V)
(For the current type,
The minimum working voltage (V) = (sampling resistance +100) *0.02+3.7V)
※ Output signal: Voltage output: 0～2V、0-3.3V、0-5V、0-10V
Current output: 4-20mA (Current signal load adjustment rate<0.004%/Ω)
Linearized signal output
※ Internal resistance of output signal source, voltage type: 0Ω
※ Quiescent current：peak value <30mA，Average<10mA
※ Working frequency: 100MHz
※ Response Time：＜0.1 s
※ Measured refresh time：＜1 s
※ Protection level：IP68
※ Working temperature range：-40℃～85℃（When measuring the frozen permafrost, the water value will be too low and inaccurate, which needs to be compensated and adjusted by the user）
※ Measurement area：center on the central probe in a cylinder with a diameter of 7cm and a height of 10cm
※ Cable length：standard 3.5m (RVVP4*0.3 /UL2464-5*22AWG), can be customized
Table of Measured Parameters
Parameters of the category | Moisture | Temperature |
Measuring range | 0-50% (BGT-SM1-50) 0-100.00% (BGT-SM1-100) | -30℃～70℃ |
Unit | % (m3/m3) | ℃ centigrade degree |
Accuracy | ±3%（0-53%）；±5%（>53%） | <±0.4℃（-10℃～50℃），<±0.6℃（-30℃～-10℃） |
Swap precision | < 3% | <0.4℃（-10℃～70℃） |
Repetition measurement error | < 2% | < 0.15℃ |
Measurement principle | Frequency domain (FDR) | RTD Thermal sensor, plus nonlinear correction |
System Frame Diagram
