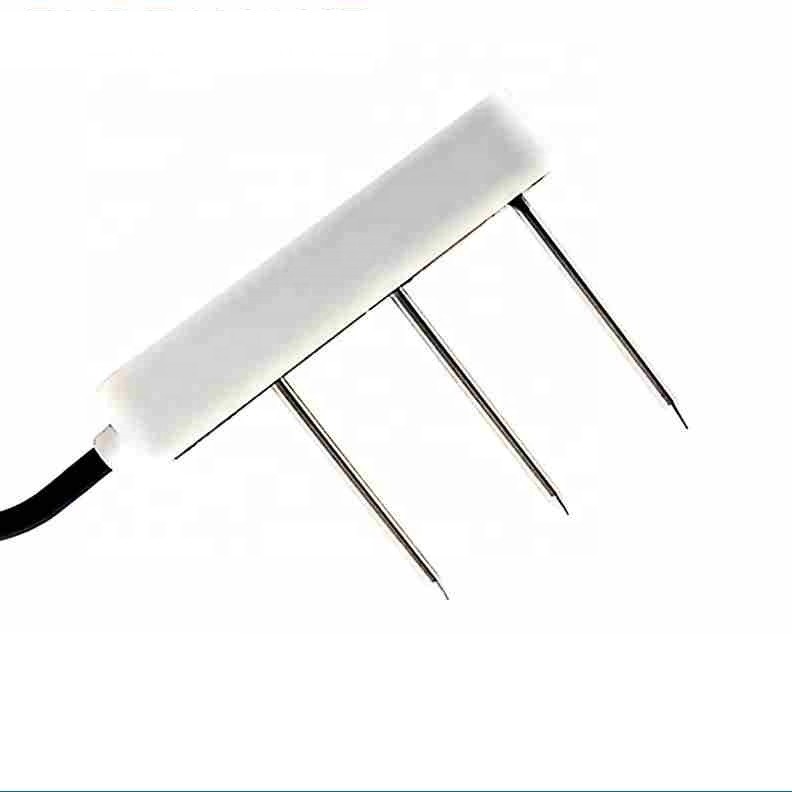

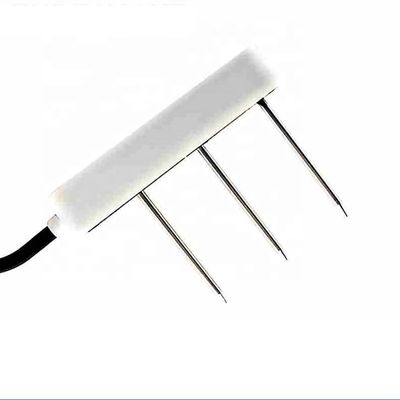

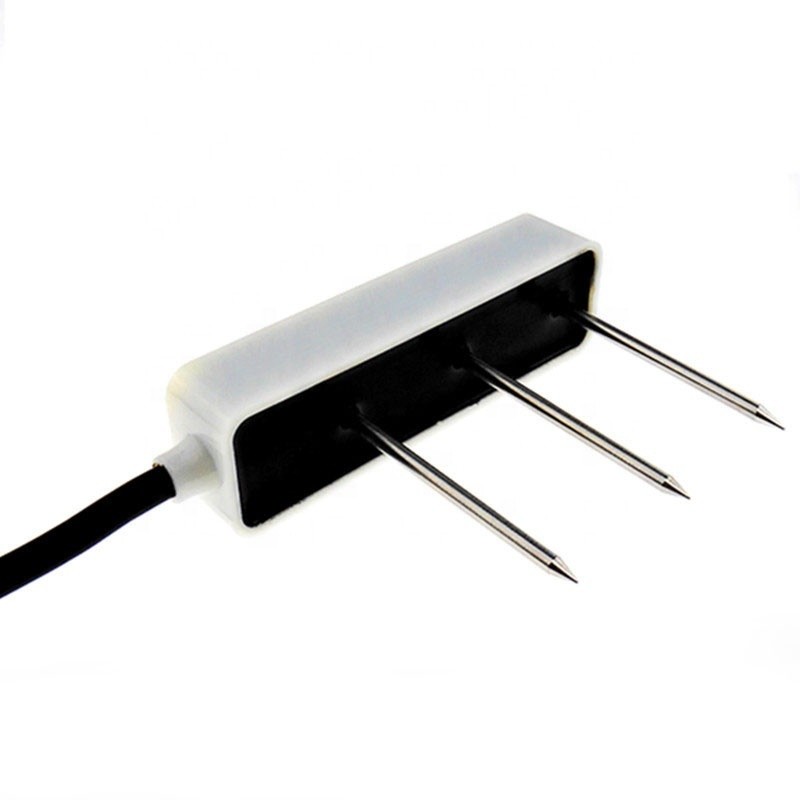

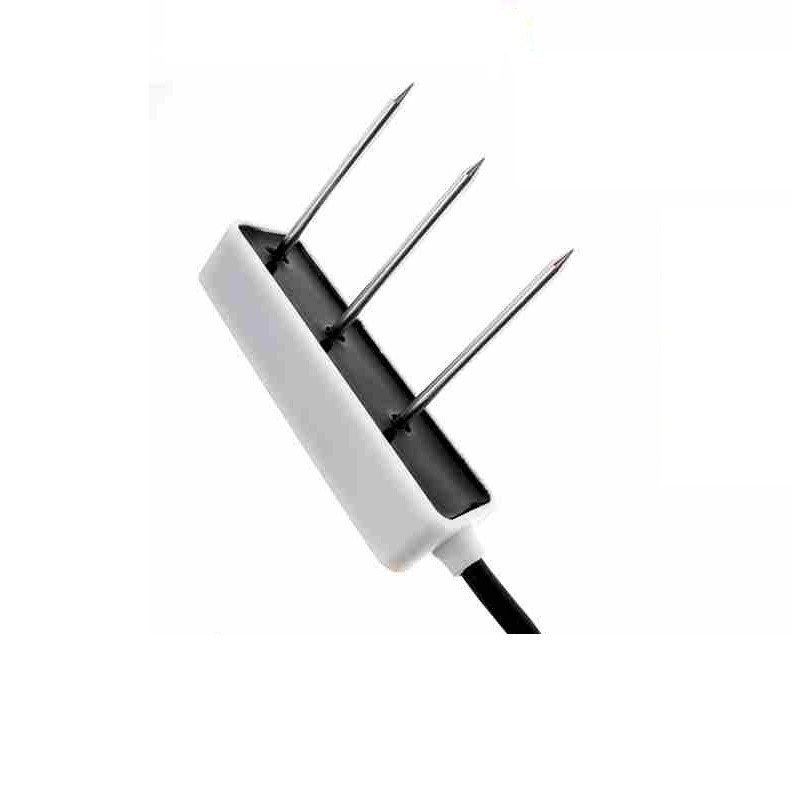

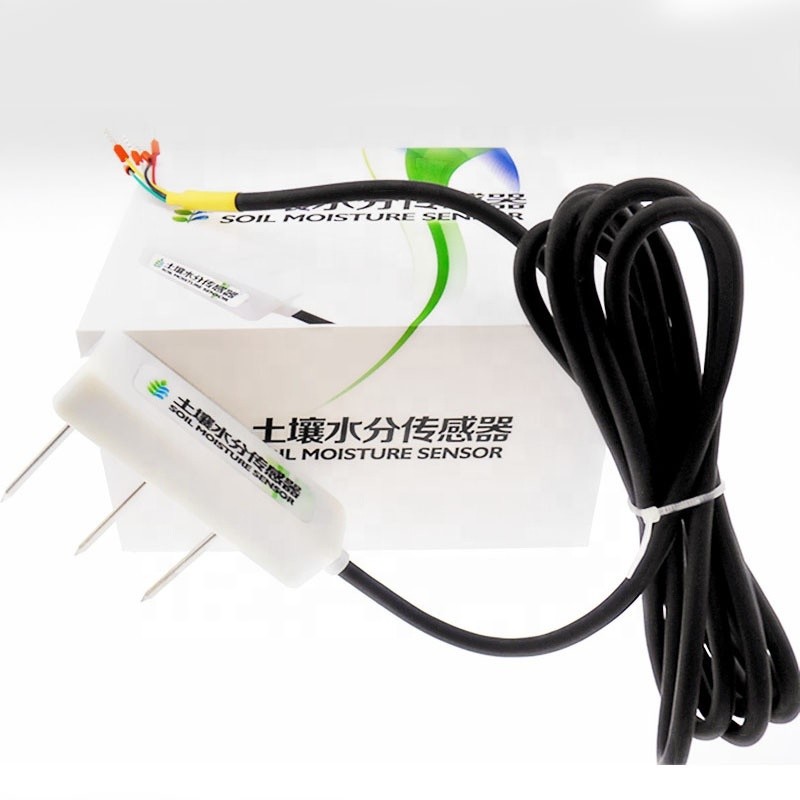

Fast Refresh Greenhouse Soil Moisture Sensor TEROS10 Arduino FDR for Cultivation

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Warranty | 1 YEAR | Type | Soil Moisture Sensor |
---|---|---|---|
Customized Support | OEM, ODM | Product Name | Soil Moisture Sensor |
Response Time | <0.1 S | Protection Level | IP68 |
Working Temperature Range | -40℃~85℃ | Measured Refresh Time | <1 S |
Swap Precision | ±3%(0-53%);±5%(>53%) | Cable Length | Standard 2m |
Color | White |
Product Description
Please Attention

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description
OEM Zigbee FDR RS485 Modbus RTU Agriculture Soil Moisture Probe Sensor For Green House
The BGT-SM1(Z2) is a high precision and high sensitivity of soil moisture & temperature sensors. By measuring the dielectric constant of the soil, it shows stable real moisture content directly. The BGT-SM1(Z2) can measure the volume of soil moisture. The FDR soil moisture measurement method is in line with present international standards. Apply to the soil moisture monitoring, scientific experiment, water-saving irrigation, greenhouse vegetables, flowers, grass, fast measure, plant cultivation, greenhouse control, precision agriculture and the other measurement of water, weather or particulate matter content.
Features
Contain moisture & temperature measure. High precision, quick response and good compatibility.
Seal with Fire-retardant Epoxy Resin, IP68 water proofing. Long term usage. .
Special treatment of probe material can be againstacid and alkali corrosion.
Widely used inmany kinds of soil because of theimported advance tech which correct the effect of different salt content.
Multiple protection functions includingPower supply, communication, analog output. Highreliability.

Technical parameter | ||||||||
Signal output type | RS485 interface | Voltage output | Voltage output (Low-voltage) | Current output | ||||
Output range | Modbus Protocol | 0-2V 0-5V 0-10V Customize | 0-1V 0-2V | 4-20mA Customize | ||||
Input voltage | 4.2-30V/DC | 4.2-30V/DC | 2.7-16V | 12-30V/DC | ||||
Average working current | <10mA | <10mA | <7mA | <15mA (without output current) | ||||
Feature | Customize soil type Multi-connection Digital transfer High precision Remote access | Many output voltages to be specified. | Instrument usage | Remote access | ||||
Soil moisture measurement area | A 7cm diameter, 7cm height cylinder which the center is the probe. | |||||||
Response time (moisture and temperature) | Less than 1 second | |||||||
Soil moisture measurement range | 0-50% volumetric moisture content ; 0-100% volumetric moisture content | |||||||
Soil moisture measurement accuracy | ± 2% for 0-53%; ± 4% for 53-100% | |||||||
Soil temperature measuring range | -40~80℃ | |||||||
Soil temperature measurement accuracy | ±0.4℃ | |||||||
Protection grade | IP68, full-time working in water | |||||||
Working temperature | -40~85℃ | |||||||
Storage temperature | -40~85℃ | |||||||
Material of the probe | Special corrosion resistant stainless steel | |||||||
Sealing material | Black flame retardant epoxy resin | |||||||
Installation | Wholly buried or put the probe into all the measured medium |

System Frame Diagram


Application
Greenhouse
Smart Irrigation
Environment Monitoring
