2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-ZW |
| Minimum Order Quantity | 1 piece |
| Price | $178.80/pieces 1-19 pieces |
| Packaging Details | Carton |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | Electronic | Product Name | Solar UV Sensor |
|---|---|---|---|
| Spectral Range | 280~400nm | Measuring Range | 0~400mW/m2 |
| Power Supply | 5V/12V/24VDC | Output Method | 4~20mA /0~2.5V /0~5V/RS485 |
| Accuracy | ±5% Rdg | Response Time | ≤ 1s(99%) |
| Cosine Response | ≤ 4% (When The Sun Angle Of 30°) | Work Environment | Temperature: -50℃~50℃; Humidity: ≤100%RH |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description

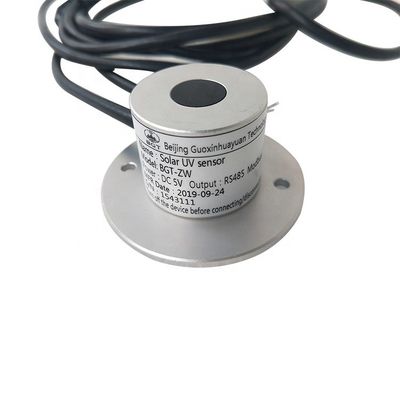

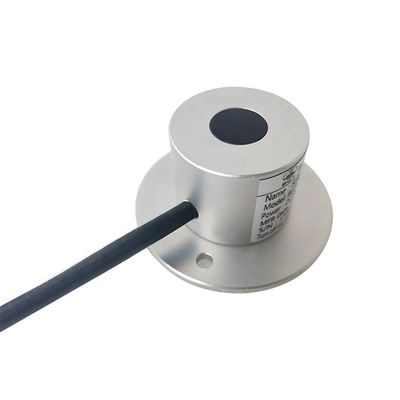

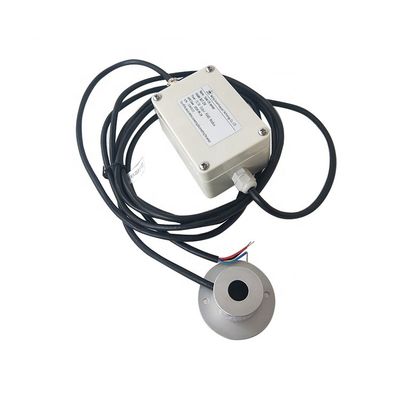

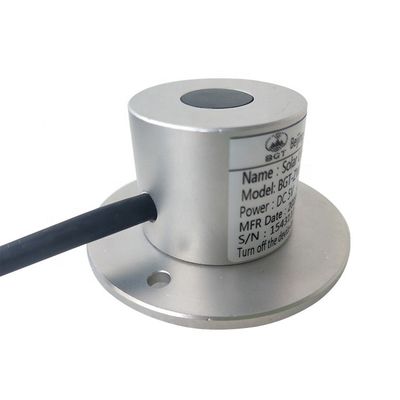

BGT-ZW Solar Ultraviolet Radiation (UV) Sensor (Transmitter)
BGT-ZW Solar UV Sensor adopts the photoelectric detector to receive the ultraviolet wave electrical signal. This product is one kind of precision instruments which is used to measure the solar ultraviolet radiation from the atmosphere (UVAB wavelength range), used in conjunction with the data logger, which can provide information on the public concern: the UV index, UV erythema measuring, the effects of the UV on person health and UV special biology and chemistry. Therefore, it is highly valued in meteorology, industry, architecture and medicine, and widely used in the study of erythema dose caused by exposure, comprehensive environmental ecological effect, climate change and ultraviolet monitoring and prediction
Technical Parameters
Item No. | BGT-ZW | ||||||
Spectral range | 280~400nm | ||||||
Power Supply | DC5V/12V/24V | ||||||
Measuring range | 0-400W/m2 | ||||||
Output method | 0-2.5V/0-5V/4-20mA/RS485 | ||||||
Accuracy | ±5% rdg | ||||||
Response time | ≤1s | ||||||
Cosine correction | ≤±4%(Solar elevation angle=30°) | ||||||
Non-linear | ≤±3% | ||||||
Ingress Protection | IP65 | ||||||
Material(Shell) | Aluminum | ||||||
Working environment | Temperature: -50℃～50℃ Humidity: ≤100%RH | ||||||
Installation
1. Ensure that the mounting bracket is parallel to the ground;
2. As shown in the figure, use screws and nuts to fix the sensor on the mounting bracket through two mounting holes of the sensor;
3. Please avoid removing the sensor during installation.
3. Please avoid removing the sensor during installation.
Good feedback from our customers
Application
Weather Station PV Monitoring Station Agriculture
Ordering process
--In order to send you the specific quotation, please feel free to tell us the following information:
1. The power supply you required -- We have DC5V / DC12V /DC24V for your choices.
2. The output method you required -- We have 4-20mA/0-5V/0-2.5V/RS485/RS232 for your choices.
3. The cable length you required -- The standard is 2.5m, if you want longer, please let me know.
4. The quantity you want to order-- Sample is also welcome.
5. Price-- EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
3. The cable length you required -- The standard is 2.5m, if you want longer, please let me know.
4. The quantity you want to order-- Sample is also welcome.
5. Price-- EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
Company Profile
Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer. We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.
BGT-SR ABS RS485/Relay Rainfall and snow sensor with optional heating function
Our Factory
FAQ
Q7. Do you have certifications? A: Yes, we have ISO9001, ISO 14001, OHSAS18001, CE, etc. Q8: How is the quality of your goods? A: We make a commitment to offer products with good apperance and nice quality to customers. If there is some questions for the product, we have after-sale team to serve you. And we offer 1 year warranty.
