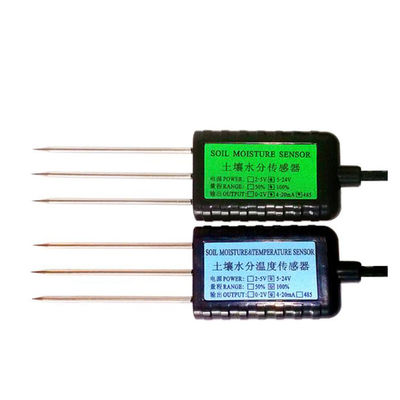

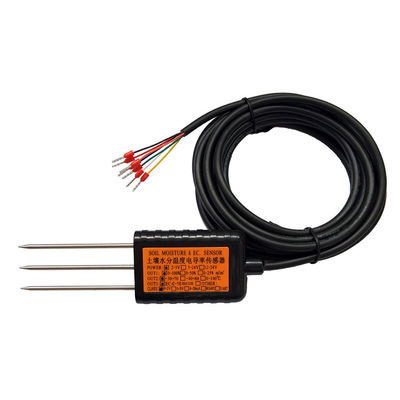

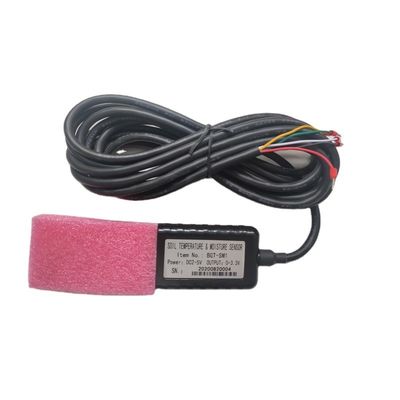

OEM Agriculture 4-20mA 0-5V 0-2V 0-3.3V RS485 Output Soil Moisture EC Temperature Sensor
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-SEC |
| Minimum Order Quantity | 1 piece |
| Price | $42.80 - $69.90/pieces |
| Packaging Details | Box |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Soil Ec Sensor | Application | Farmland Planting |
|---|---|---|---|
| Product Name | Soil EC Conductivity Sensor | Probe Length | 7cm |
| Working Voltage | 2-5V, 3.3V | Cable Length | Standard 3.5m (RVVP4*0.3), Can Be Customized |
| Protection Level | IP68 | Measuring Range | 0-10mS/cm(25℃)(0-10.0EC) |
| Accuracy | 2%FS, 2% Of The Value | Swap Precision | < 2%FS |
| Measured Stability Time | < 2 S | Working Frequency | 100MHz |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description
Industrial volumetric water content 5-24V input 0-2V 0-3.3V 2-5V 4-20mA output Soil EC Sensor Conductivity for farm
This soil sensor developed with a new technical scheme which can measure soil conductivity and carry out compensation calculation.Eliminating the influence of temperature on conductivity can perform compensation operation and accurate evaluation.
It adopts imported epoxy resin, high quality stainless steel, more resistance to acid and alkali corrosion, steel needle
isolation, never electrolysis, with more than 3 years of service life.
With the multi-directional function of power line, ground line and signal line, can prevent the damage caused by reverse
connection, wrong connection and so on.
Technical parameter
※ Working voltage：5-24V (Output 4-20mA,Min working voltage(V)=(Sampling resistance+100*0.02+3.7V. Eg:Sampling resistance 100 Ω,
working voltage should not lower then 7.7V
※ Output:0-2V,0-5V(Voltage),4-20mA(Current),Linearized signal output
※ Output source Resistance:Voltage:0 Ω,Current:Output current load adjustment rate <30ppm/Ω
※ Quiescent current：peak value <30mA，Average<10mA。
※ Working frequency:100MHz
※ Working temperature range：-40℃～85℃(When you measure the frozen soil ,The moisture content will be low and inaccurate)
※ Measurement area：center on the central probe in a cylinder with a diameter of 7cm and a height of 10cm
※ Cable length：standard 3.5m (RVVP4*0.3), can be customized
※ Cable length：standard 3.5m (RVVP4*0.3), can be customized
It adopts imported epoxy resin, high quality stainless steel, more resistance to acid and alkali corrosion, steel needle
isolation, never electrolysis, with more than 3 years of service life.
With the multi-directional function of power line, ground line and signal line, can prevent the damage caused by reverse
connection, wrong connection and so on.
Technical parameter
※ Working voltage：5-24V (Output 4-20mA,Min working voltage(V)=(Sampling resistance+100*0.02+3.7V. Eg:Sampling resistance 100 Ω,
working voltage should not lower then 7.7V
※ Output:0-2V,0-5V(Voltage),4-20mA(Current),Linearized signal output
※ Output source Resistance:Voltage:0 Ω,Current:Output current load adjustment rate <30ppm/Ω
※ Quiescent current：peak value <30mA，Average<10mA。
※ Working frequency:100MHz
※ Working temperature range：-40℃～85℃(When you measure the frozen soil ,The moisture content will be low and inaccurate)
※ Measurement area：center on the central probe in a cylinder with a diameter of 7cm and a height of 10cm
※ Cable length：standard 3.5m (RVVP4*0.3), can be customized
※ Cable length：standard 3.5m (RVVP4*0.3), can be customized
Features

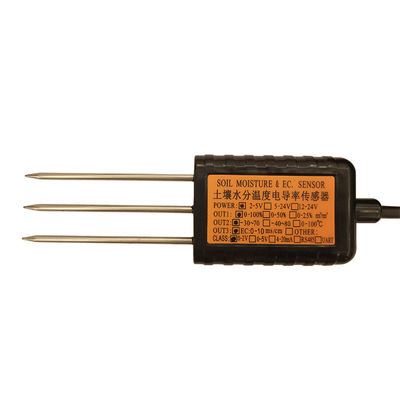

▶ Three 316L Needle Probe
▶High Stability High Accuracy
▶ Fast Response
▶ Easy Installation▶ Directly Buried in Soil
▶ Widly Application
Application
● Agriculture irrigation
● Green house
● Grass farm
● Environment monitoring
● Water conservation
● Soil testing
▶ Widly Application
Application
● Agriculture irrigation
● Green house
● Grass farm
● Environment monitoring
● Water conservation
● Soil testing
Technical parameter
Parameters of the category | EC (Conductivity,yellow wire output) |
Measuring range | 0-10mS/cm（25℃）(0-10.0EC) |
Unit | uS/cm, Micro Siemens/cm |
Accuracy | 2%FS, 2% of the value |
Swap precision | < 2%FS |
Repetition measurement error | < 2%FS |
Response time when powered | 1 s |
Measured stability time | < 2 s |
Reduction formula，0-2V | Conductivity mS = Measured voltage（V）* 5 |
Reduction formula，0-3.3V | Conductivity mS = Measured voltage（V）* 3.03 |
Reduction formula，0-5V | Conductivity mS = Measured voltage（V）* 2 |
Reduction formula，4-20mA | Conductivity mS =（Measured voltagemA)- 4）/16 * 10 |
Measurement principle | Conductivity measurement, temperature compensation |
System Frame Diagram
Application
