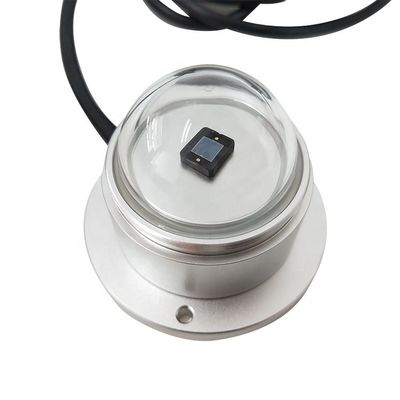

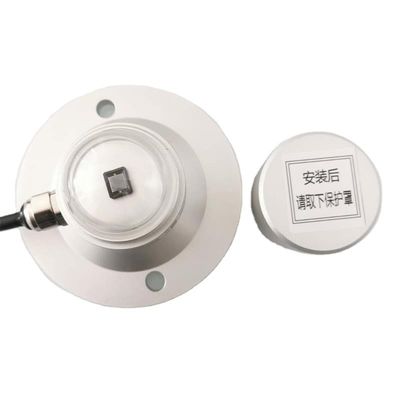

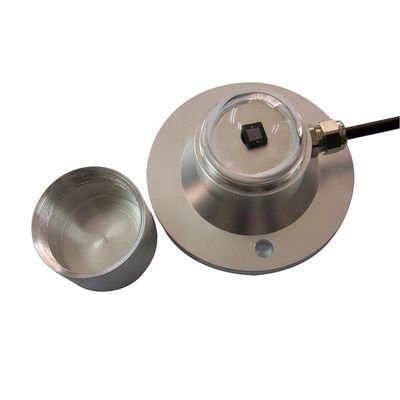

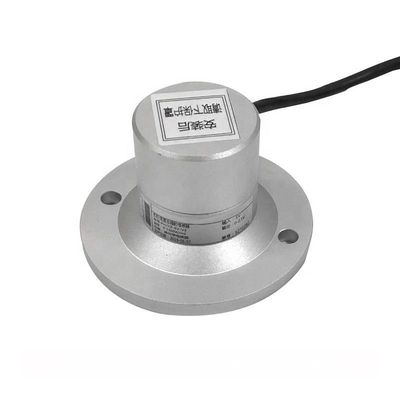

Optical Sun Tracking Sensor for Weather Station or PV Monitoring Silicon Pyranometer
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-JYZ2 |
| Minimum Order Quantity | 1 piece |
| Price | $135.80/sets 1-9 sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mounting Type | Bracket | Description | Solar Radiation |
|---|---|---|---|
| Usage | Solar Rasiation | Brand | Pyranometer |
| Voltage - Supply | DC12V | Output Type | RS485 |
| Resolution (Bits) | 1W/㎡ | Output Configuration | RS485 /RS232 /4-20mA / 0-5V / 0-2.5V |
| Spectral Response | 300~3000nm | Response Time | <5S |
| Material | Aluminum Alloy | Accuracy | ±5% |
| Resolution | 1W/m2 | Theory | Optical Sensor |
| Output | Digital Sensor |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description
Optical Solar Radiation Sensor
The BGT-JYZ2 solar radiation sensor (transmitter) can be used to measure total solar radiation in the spectral range of
300-3000nm. If the inductive surface is down to measure reflected radiation, the shading ring can also measure scattered

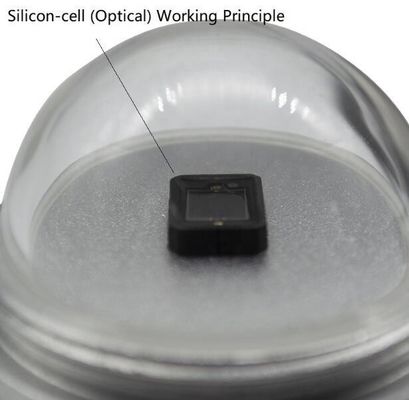

radiation. The core component of the radiation sensor is a high-precision photosensitive element with good stability and high precision. At the same time, a quartz glass cover made of precision optical cold working is installed outside the sensing element, which effectively prevents the influence of environmental factors on its performance. This product can be widely used in meteorology, energy, agriculture, construction and other fields.
Item No.:BGT-JYZ2
Spectral Range: 300~3000nm
Material:Aluminum Alloy
Measuring Range: 0~1500 W/m2
Output: 0-5V,4-20mA,RS485
Resolution:1W/m2
Response time:<5s
Accuracy:±5%
Temperature effect:±0.08%/℃
Sensitive:7~14μV/W•m-2
Cosine response:≤10%(Solar elevation angle10°in sunny day)
Working temperature:-40℃~+50℃
Working humidity:0~100%RH
Spectral Range: 300~3000nm
Material:Aluminum Alloy
Measuring Range: 0~1500 W/m2
Output: 0-5V,4-20mA,RS485
Resolution:1W/m2
Response time:<5s
Accuracy:±5%
Temperature effect:±0.08%/℃
Sensitive:7~14μV/W•m-2
Cosine response:≤10%(Solar elevation angle10°in sunny day)
Working temperature:-40℃~+50℃
Working humidity:0~100%RH
