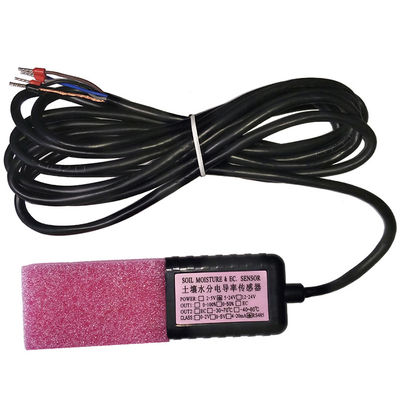

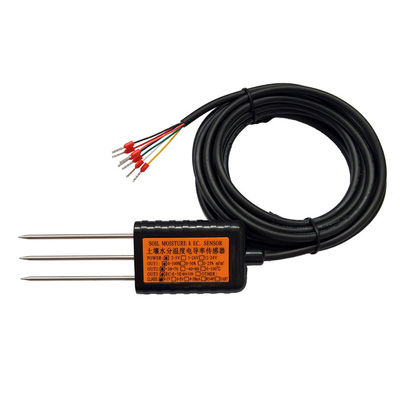

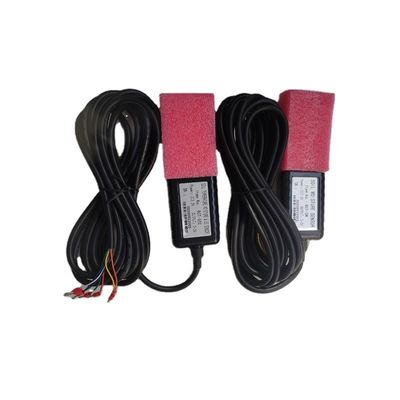

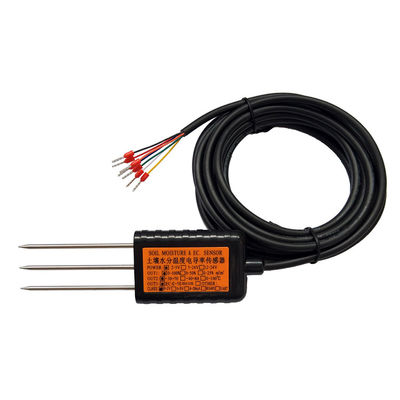

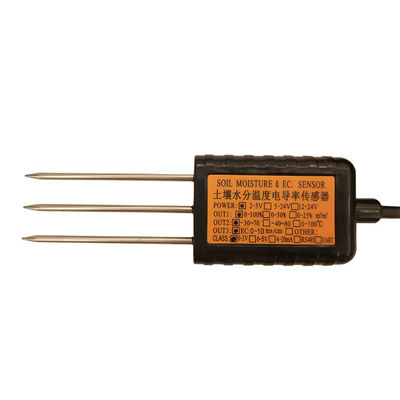

BGT 5-24V DC SDI12 Output FDR Smart Greenhouse Plant Soil Temperature Humidity Sensor
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | BGT |
| Model Number | BGT-SEC |
| Minimum Order Quantity | 1 piece |
| Price | $42.80 - $79.98/pieces |
| Packaging Details | Box |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mounting Type | Probe | Description | Soil Sensor |
|---|---|---|---|
| Brand | Soil Ec Sensor | Application | Farmland Planting |
| Product Name | Soil Temp Moistuer EC Sensor | Probe Length | 7cm |
| Working Voltage | 5-24V DC | Cable Length | Standard 3.5m (RVVP4*0.3), Can Be Customized |
| Protection Level | IP68 | Measuring Range | 0-10mS/cm(25℃)(0-10.0EC) |
| Accuracy | 2%FS, 2% Of The Value | Swap Precision | < 2%FS |
| Measured Stability Time | < 2 S | Working Frequency | 100MHz |
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description
BGT 5-24V DC SDI12 output FDR smart greehouse plant soil temperature moisture humidity ec sensor

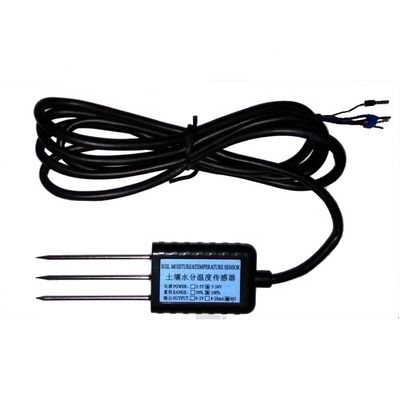

The product adopts micro-power circuit design and follows SDI-12 protocol. BGT-SM1 Soil temperature and moisture sensor is based on the capacitive frequency domain measurement method. By measuring the soil apparent dielectric constant, the soil volume moisture content is calculated. The heat sensitive element inside the hollow probe measures the soil temperature. Soil moisture and temperature were measured at the same time. It's a two-in-one sensor. BGT-SEC Soil temperature humidity and EC sensor adds an impedance measurement circuit to measure the impedance between the electrodes to convert the soil volume conductivity ECb. Three parameters of soil moisture, temperature and conductivity were measured simultaneously. It's a three-in-one sensor. The output of BGT-SM1 is compatible with American DECAGON 5TM SDI-12 output data format. The output of BGT-SEC is compatible with American DECAGON 5TE SDI-12 output data format. Features: Micro power consumption, static standby current is only 20uA (when powered by 12V)
Technical parameter
※ Working voltage：5.7V-24V
※ Quiescent current： <20uA (when the power supply is less than 12V)
※ Working current：average < 4mA, instantaneous maximum is 20mA (within 0.1 s)
※ Response Time：＜1 s
※ Measured stability time：2 s
※ Protection level：IP68
※ Working temperature range：-40℃～80℃
※ Cable length: 5m (standard type, the length can be customized, the maximum is 50m)
Technical parameter
※ Working voltage：5.7V-24V
※ Quiescent current： <20uA (when the power supply is less than 12V)
※ Working current：average < 4mA, instantaneous maximum is 20mA (within 0.1 s)
※ Response Time：＜1 s
※ Measured stability time：2 s
※ Protection level：IP68
※ Working temperature range：-40℃～80℃
※ Cable length: 5m (standard type, the length can be customized, the maximum is 50m)
Features
▶ Three 316L Needle Probe
▶High Stability High Accuracy
▶ Fast Response
▶ Easy Installation▶ Directly Buried in Soil
▶ Widly Application
Application
● Agriculture irrigation
● Green house
● Grass farm
● Environment monitoring
● Water conservation
● Soil testing
▶ Widly Application
Application
● Agriculture irrigation
● Green house
● Grass farm
● Environment monitoring
● Water conservation
● Soil testing
Technical parameter
Technical Indexes | Apparent dielectric constant (εa) | Soil moisture (VWC) | Temperature (℃) | ECb(bulk) (ds/m) |
Measuring Range | 1.0-80.0 | 0.0–1.0 m3/m3 | -40.0℃-80.0℃ | 0-20.000 |
Accuracy | ±1ε(<40) 15%(40-80) | ±0.03 m3/m3(3%VWC) （0%–50%） | ±0.5℃ | 10% ( 0 to 7 dS/m) |
Resolution | 0.1 | 0.001 m3/m3 （0%–50%） | 0.1 | 0.01 dS/m (0 - 7 dS/m), 0.05 dS/m (7- 23 dS/m) |
